74 Installing System Components

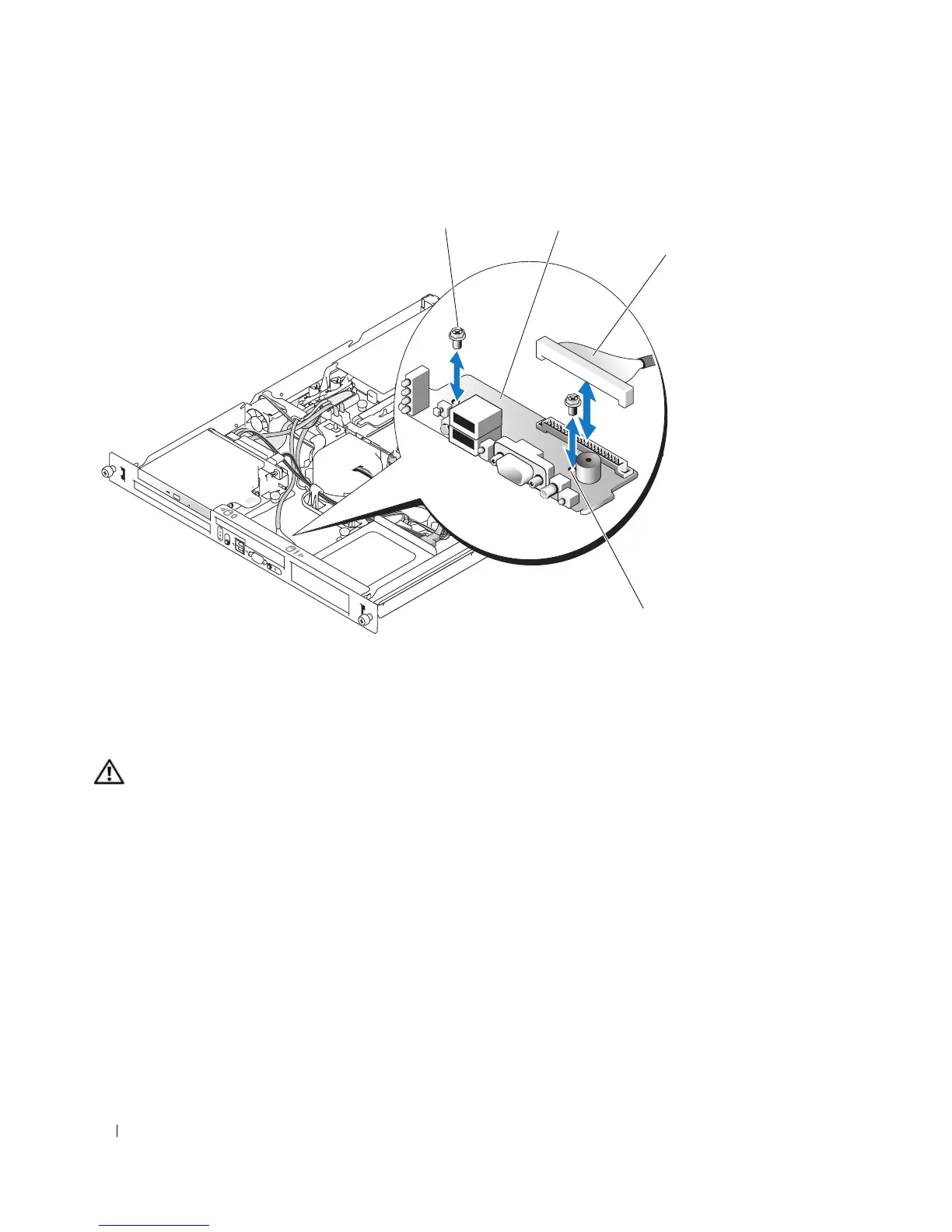

Figure 3-20. Installing and Removing the Control Panel Assembly
Installing the Control Panel Assembly
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the
components inside the system. Before performing any procedure, see your Product Information Guide for
complete information about safety precautions, working inside the computer and protecting against electrostatic
discharge.
1 Align the control panel assembly’s mounting holes with the chassis mounting holes. See Figure 3-20.
2 Using a #2 Phillips screwdriver, install the two screws that secure the control panel assembly to the
chassis. See Figure 3-20.
3 Connect the control panel cables. See Figure 3-20.
4 Close the system. See "Closing the System" on page 47.
1 control panel assembly 2 screws (2) 3 cables
4 mounting holes (2)
2
1
4
3

Dell PowerEdge 860 Specifications

General

Chipset	Intel 3000
Form Factor	1U Rack
Processor Socket	LGA 775
Number of Processors Supported	1
Memory Slots	4
Processor	Intel Xeon 3000 series
Memory	Up to 8GB
RAID Support	PERC 5/i
Network	Embedded Broadcom Gigabit Ethernet
Memory Type	DDR2
Hard Drive Interface	SATA
Maximum Internal Storage	Up to 2TB
Power Supply	305W
Operating System Support	Red Hat Linux
