About this task
NOTE: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: Depending on the configuration ordered, your computer may support a 2230 solid-state drive, or a 2280 solid-state
drive in M.2 slot.
NOTE: This procedure applies only if you are installing a 2230 solid-state drive in M.2 slot.

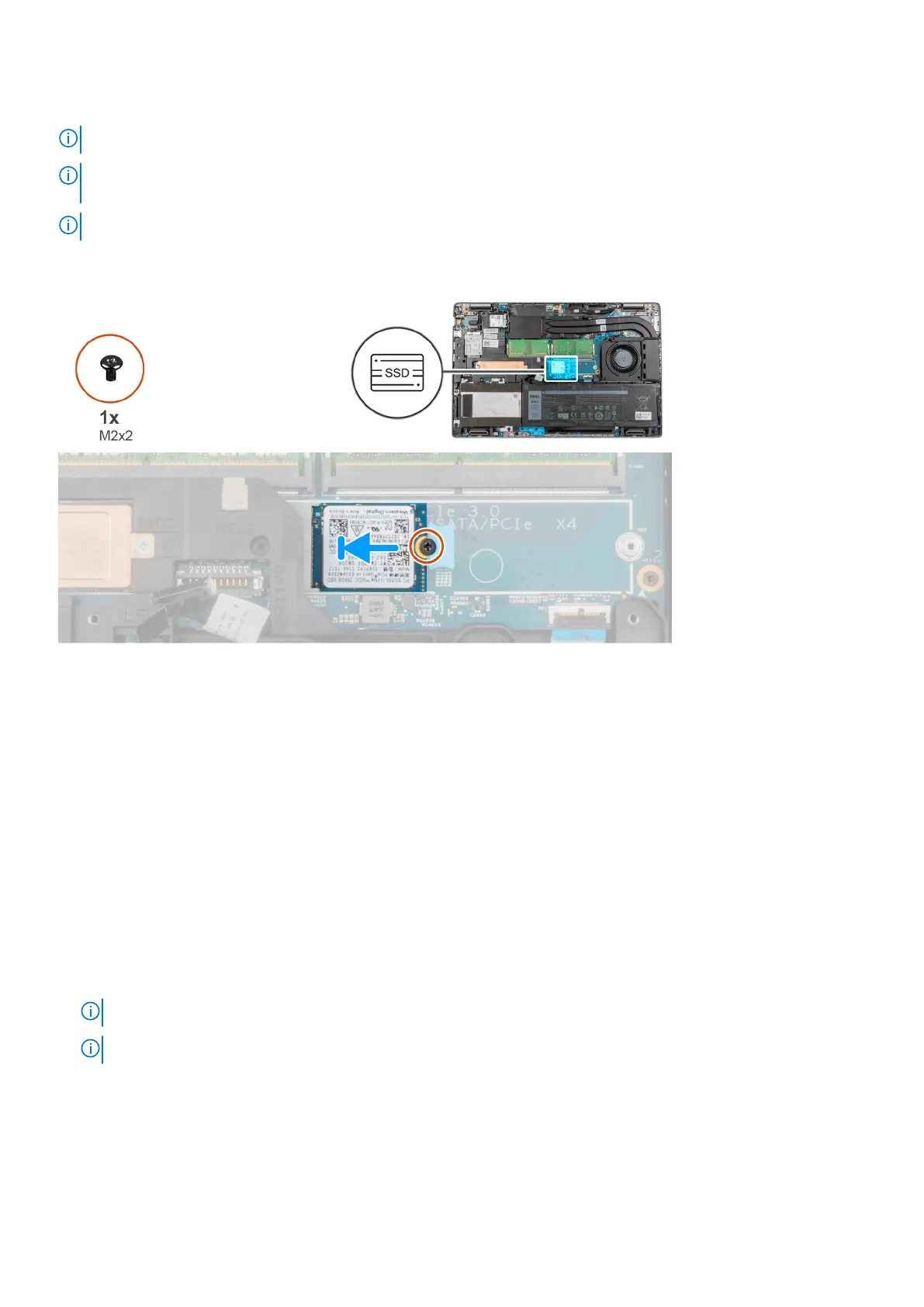

The following image indicates the location of the 2230 solid-state drive that is installed in M.2 slot and provides a visual
representation of the installation procedure.
Steps
1. Align the notch on the 2230 solid-state drive with the tab on the solid-state drive slot.
2. Place the solid-state drive assembly in the slot.
3. Replace the single (M2x2) screw that secures the solid-state drive to the palm-rest assembly.
Next steps
1. Install the microSD card.
2. Install the SIM card.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Removing the 2230 solid-state drive slot-2
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: To avoid data loss, do not remove the solid-state drive while the computer is in sleep or on state.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
