About this task

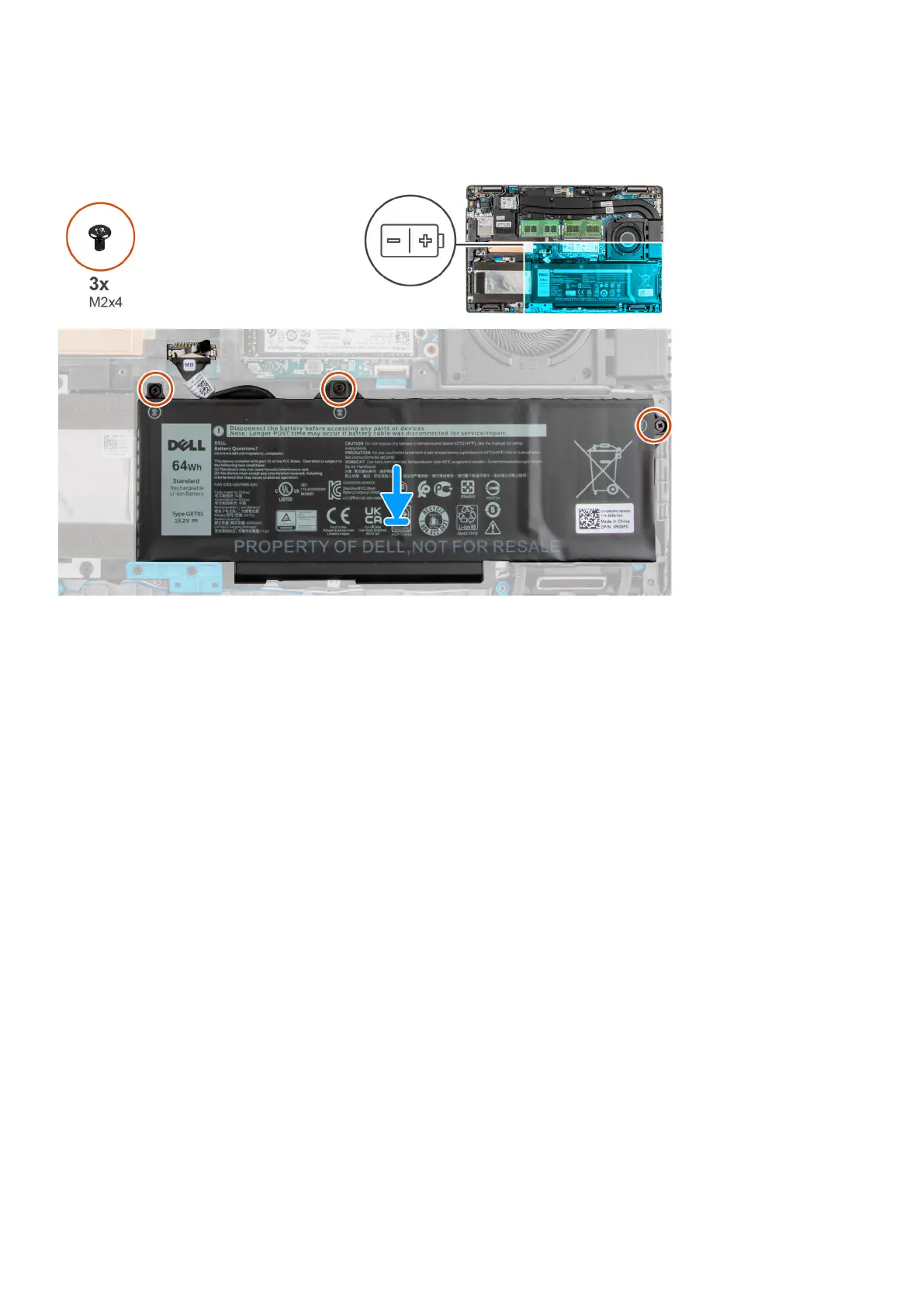

The following image indicates the location of the 4-cell (64 Wh) battery and provides a visual representation of the installation

procedure.

Steps

1. Using the alignment posts, slide and place the 4-cell battery on the palm-rest and keyboard assembly.

2. Align the screw holes on the 4-cell battery with the screw holes on the palm-rest and keyboard assembly.

3. Replace the three (M2x4) screws that secure the 4-cell battery to the palm-rest and keyboard assembly.

4. Connect the battery cable to the connector system board.

Next steps

1. Install the base cover.

2. Install the microSD card.

3. Install the SIM card.

4. Follow the procedure in After working on your computer.

Assembly inner frame

Removing the assembly inner frame

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the SIM card.

3. Remove the microSD card.

4. Remove the base cover.

5. Remove the battery.

6. Remove the hard drive.

7. Remove the WLAN card.

8. Remove the WWAN card.

Removing and installing components
