Dell Precision 3561 User Manual

Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the battery.
6. Remove the hard drive.
About this task

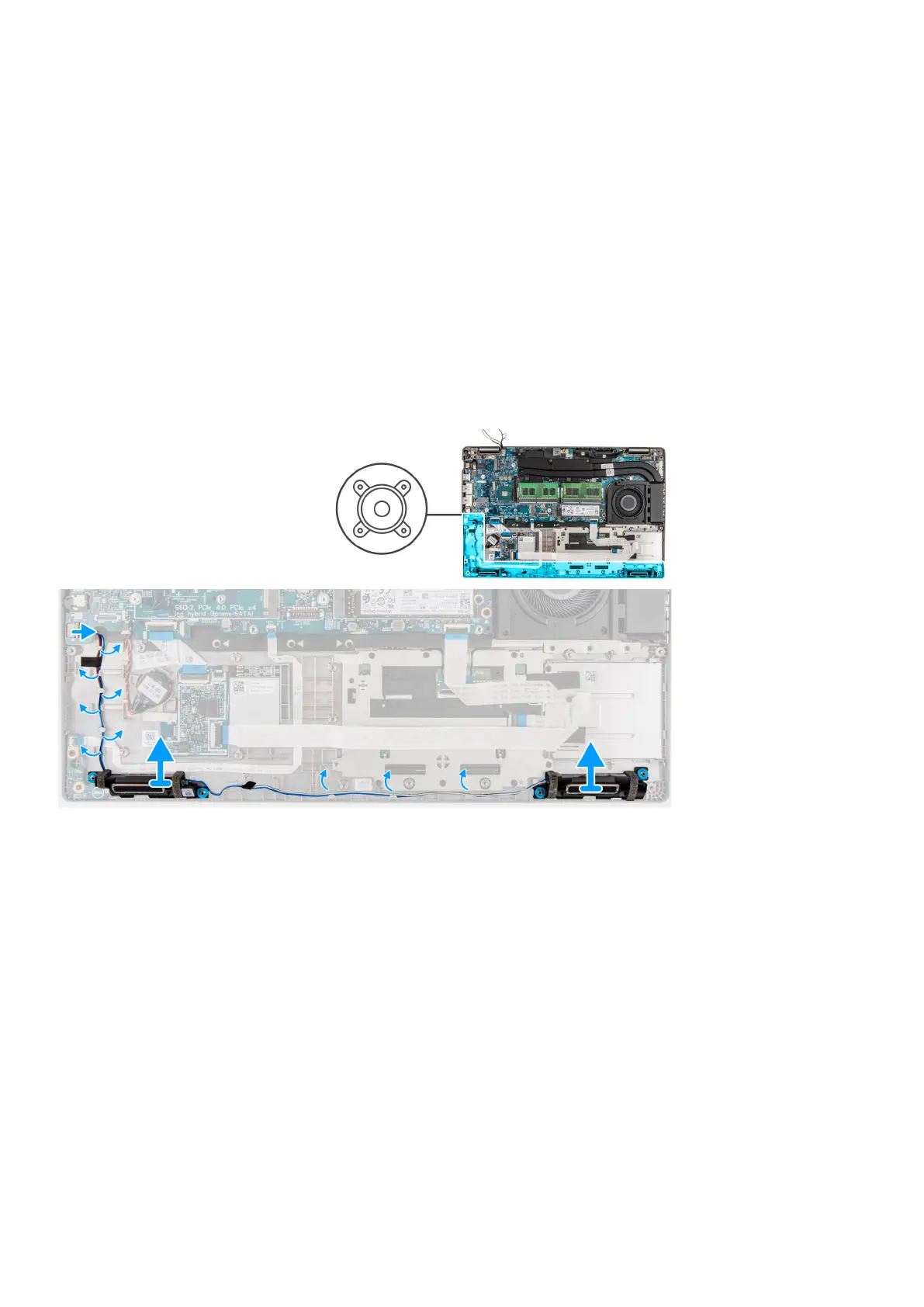

The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
Steps
1. Peel the tape that secures the speaker cable to the palm-rest and keyboard assembly.
2. Note the speaker cable routing, and remove the speaker cable from the routing guides on the palm-rest and keyboard
assembly.
3. Disconnect the speaker cable from the system board.
4. Lift the speakers, along with the cable, off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the speaker and provides a visual representation of the installation procedure.
52
Removing and installing components

Dell Precision 3561 Specifications

General

Wireless	Intel Wi-Fi 6 AX201
Bluetooth	Bluetooth 5.1
Processor	11th Gen Intel Core i5/i7/i9 or Xeon
Graphics	Intel UHD Graphics
Display	15.6-inch FHD (1920 x 1080) or UHD (3840 x 2160)
Memory	Up to 64GB DDR4
Storage	Up to 4TB SSD
Operating System	Windows 10 Pro
Ports	HDMI 2.0
Webcam	720p HD
Battery	6-cell 97Whr
Weight	Starting weight: 1.79 kg (3.95 lb)
Dimensions	Width: 357.80 mm (14.09 in) Depth: 233.30 mm (9.19 in)
