About this task

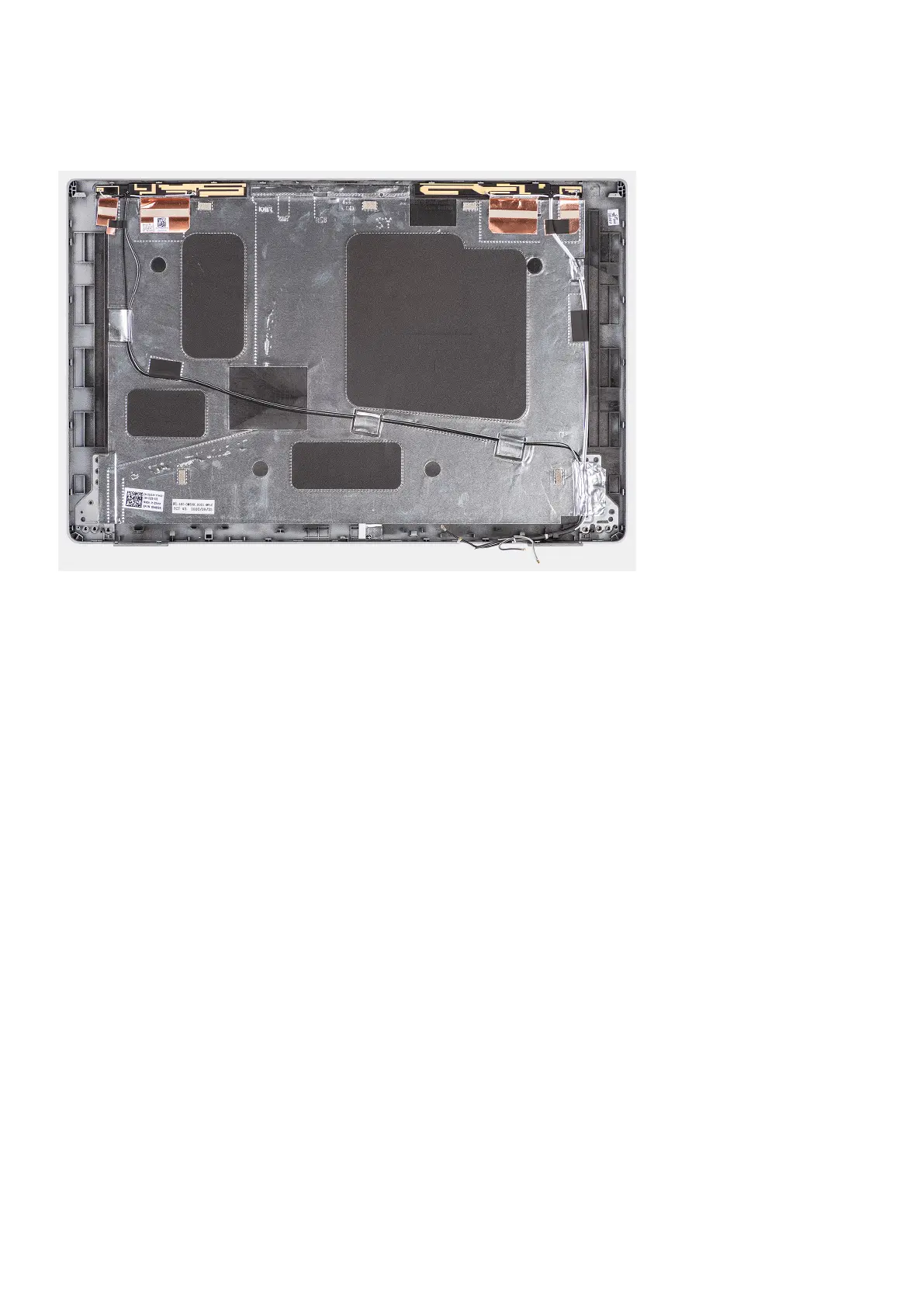

The following image indicates the location of the display back cover and provides a visual representation of the installation

procedure.

Steps

Place the display back cover on a flat surface.

Next steps

1. Install the display hinges.

2. Install the sensor board.

3. Install the eDP/display cable.

4. Install the camera/microphone module.

5. Install the display panel.

6. Install the display bezel.

7. Install the display assembly.

8. Install the WWAN card.

9. Install the WLAN card.

10. Install the base cover.

11. Install the microSD card.

12. Install the SIM card.

13. Follow the procedure in After working inside your computer.

Palm-rest assembly

Removing the palm-rest assembly

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the SIM card.

3. Remove the microSD card.

4. Remove the base cover.

Removing and installing components
