Installing the heat sink and fan assembly - Discrete configuration

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.

NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that

thermal conductivity is achieved.

About this task

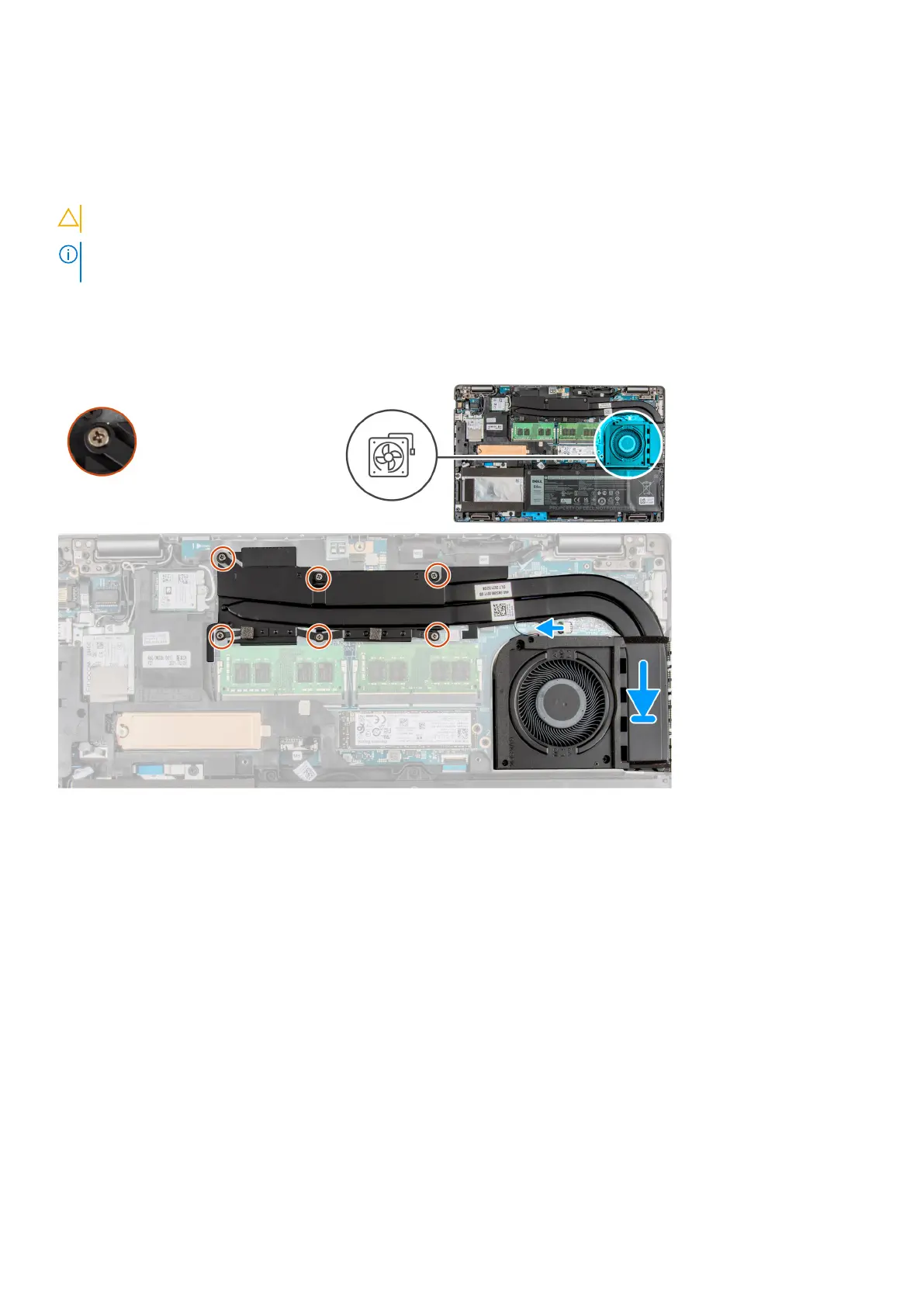

The following image indicates the location of the heat sink and fan assembly for a system with discrete configuration and

provides a visual representation of the installation procedure.

Steps

1. Align the screw holes on the heat sink and fan assembly with the screw holes on the system board.

2. In sequential order (as indicated on the heat sink), tighten the six (M2x3) screws that secure the heat sink to the system

board.

3. Connect the fan cable to the connector on the system board.

4. Replace the two (M2x4) screws that secure the system fan to the frame.

Next steps

1. Install the microSD card.

2. Install the SIM card.

3. Install the base cover.

4. Follow the procedure in After working inside your computer.
