About this task
NOTE: Depending on the configuration ordered, your computer may support a 2230 solid-state drive, or a 2280 solid-state
drive in M.2 slot.
NOTE: This procedure applies only to computers shipped with a 2230 solid-state drive installed in M.2 slot.

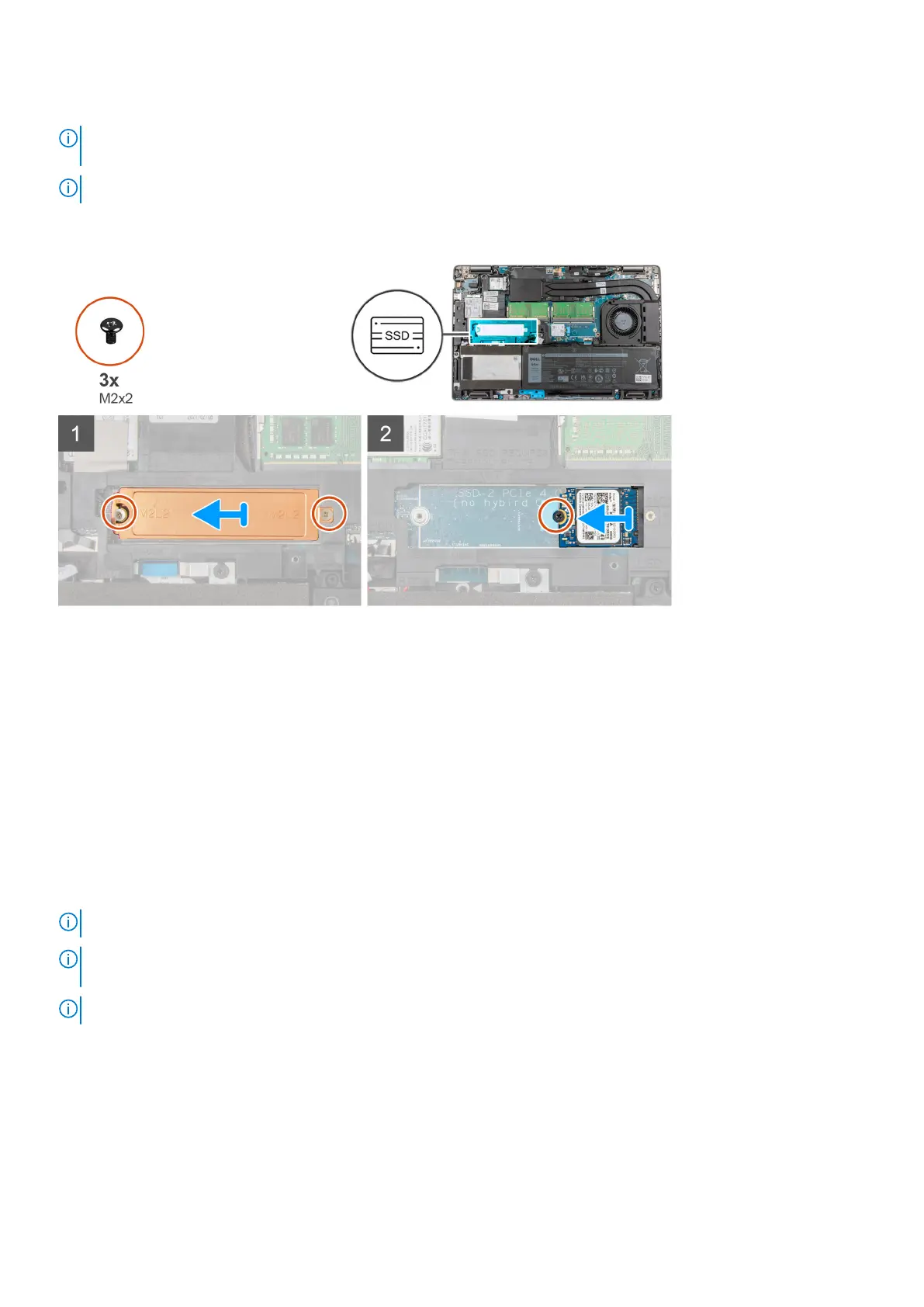

The following image indicates the location of the 2230 solid-state drive that is installed and provides a visual representation of
the removal procedure.
Steps
1. Remove the two (M2x2) screws that secures the thermal plate to the palm-rest assembly.
2. Remove the single (M2x2) screw securing the solid-state drive assembly in place.
3. Remove the solid-state drive assembly from the system.
4. Slide and remove the solid-state drive from the M.2 slot.
Installing the 2230 solid-state drive slot-2
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: Depending on the configuration ordered, your computer may support a 2230 solid-state drive, or a 2280 solid-state
drive in M.2 slot.
NOTE: This procedure applies only if you are installing a 2230 solid-state drive in M.2 slot.
The following image indicates the location of the 2230 solid-state drive that is installed in M.2 slot and provides a visual
representation of the installation procedure.
30
Removing and installing components
