Steps

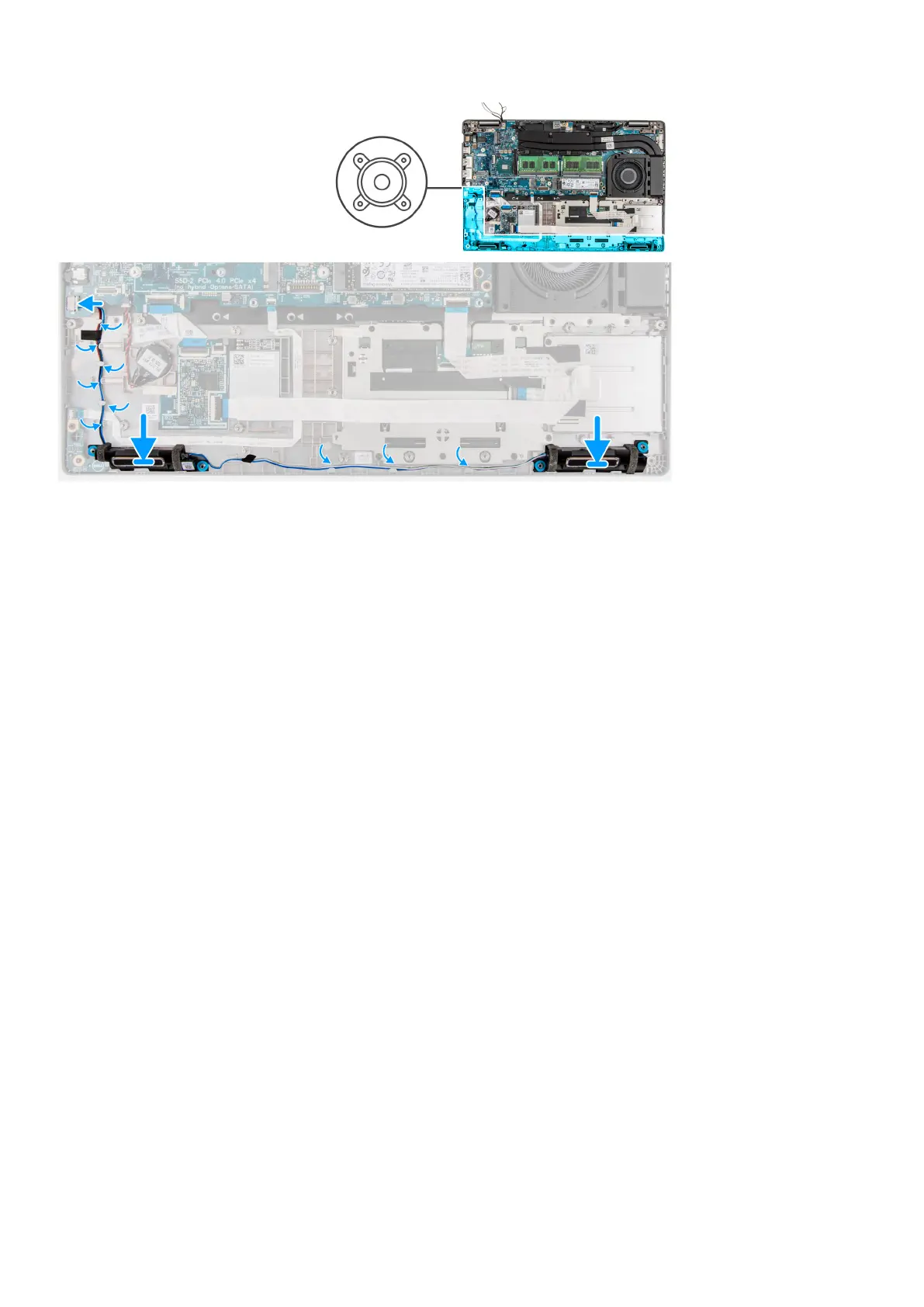

1. Using the alignment posts and rubber grommets, place the speakers on the slots of the palm-rest and keyboard assembly.

2. Connect the speaker cable to the system board.

3. Route the speaker cable through the bottom-left corner of the system and ensure that the speaker cables are routed firmly

into the routing channels on the inner frame.

Next steps

1. Install the battery.

2. Install the hard drive.

3. Install the base cover.

4. Install the microSD card.

5. Install the SIM card.

6. Follow the procedure in After working inside your computer.

USB type-C bracket

Removing the USB type-C bracket

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the SIM card.

3. Remove the microSD card.

4. Remove the base cover.

About this task

The following images indicate the location of the USB type-C bracket and provide a visual representation of the removal

procedure.

Removing and installing components
