Dell Precision 3561 User Manual

Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the WWAN card.
About this task

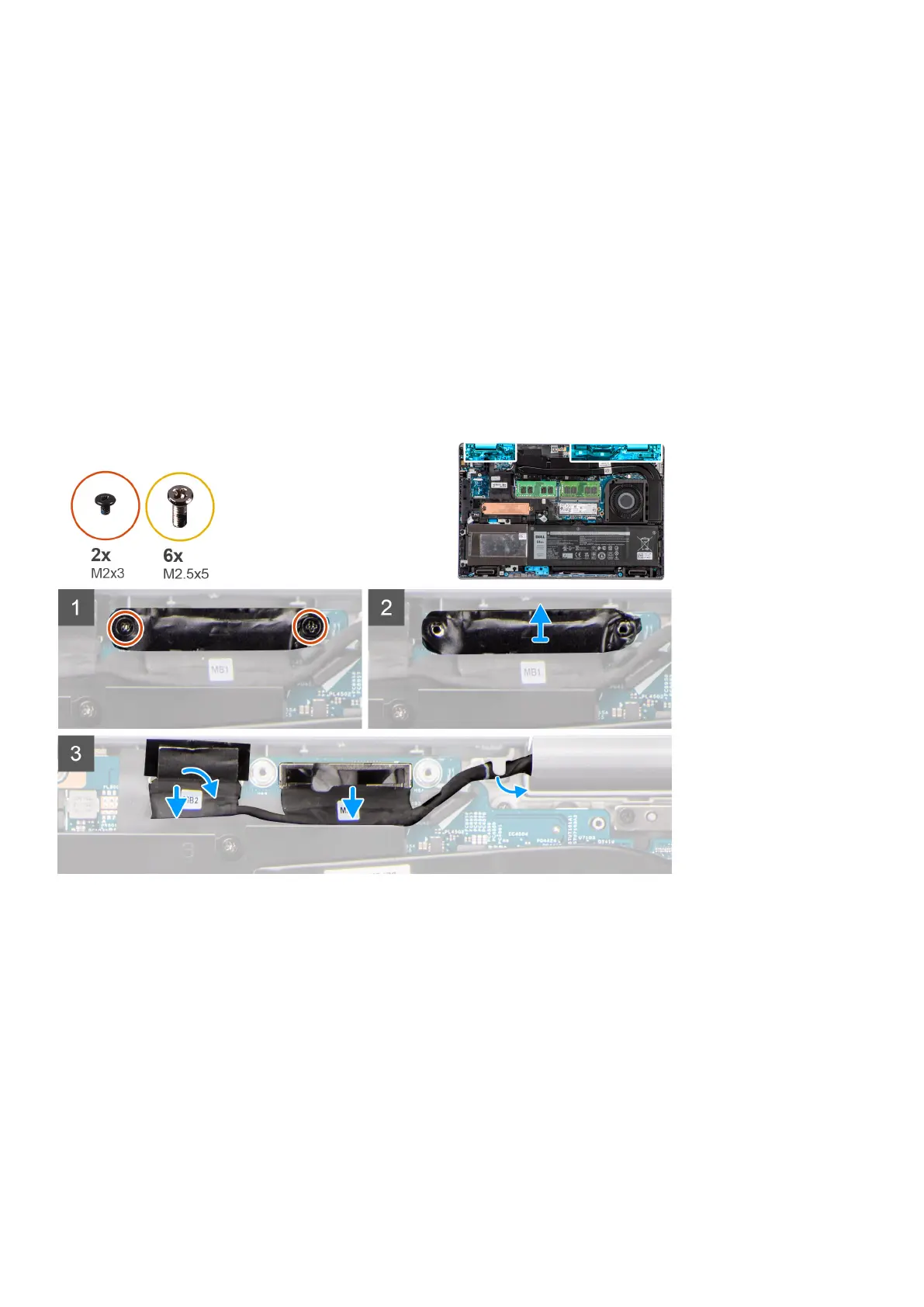

The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Removing and installing components 71

Dell Precision 3561 Specifications

General

Wireless	Intel Wi-Fi 6 AX201
Bluetooth	Bluetooth 5.1
Processor	11th Gen Intel Core i5/i7/i9 or Xeon
Graphics	Intel UHD Graphics
Display	15.6-inch FHD (1920 x 1080) or UHD (3840 x 2160)
Memory	Up to 64GB DDR4
Storage	Up to 4TB SSD
Operating System	Windows 10 Pro
Ports	HDMI 2.0
Webcam	720p HD
Battery	6-cell 97Whr
Weight	Starting weight: 1.79 kg (3.95 lb)
Dimensions	Width: 357.80 mm (14.09 in) Depth: 233.30 mm (9.19 in)
