Steps

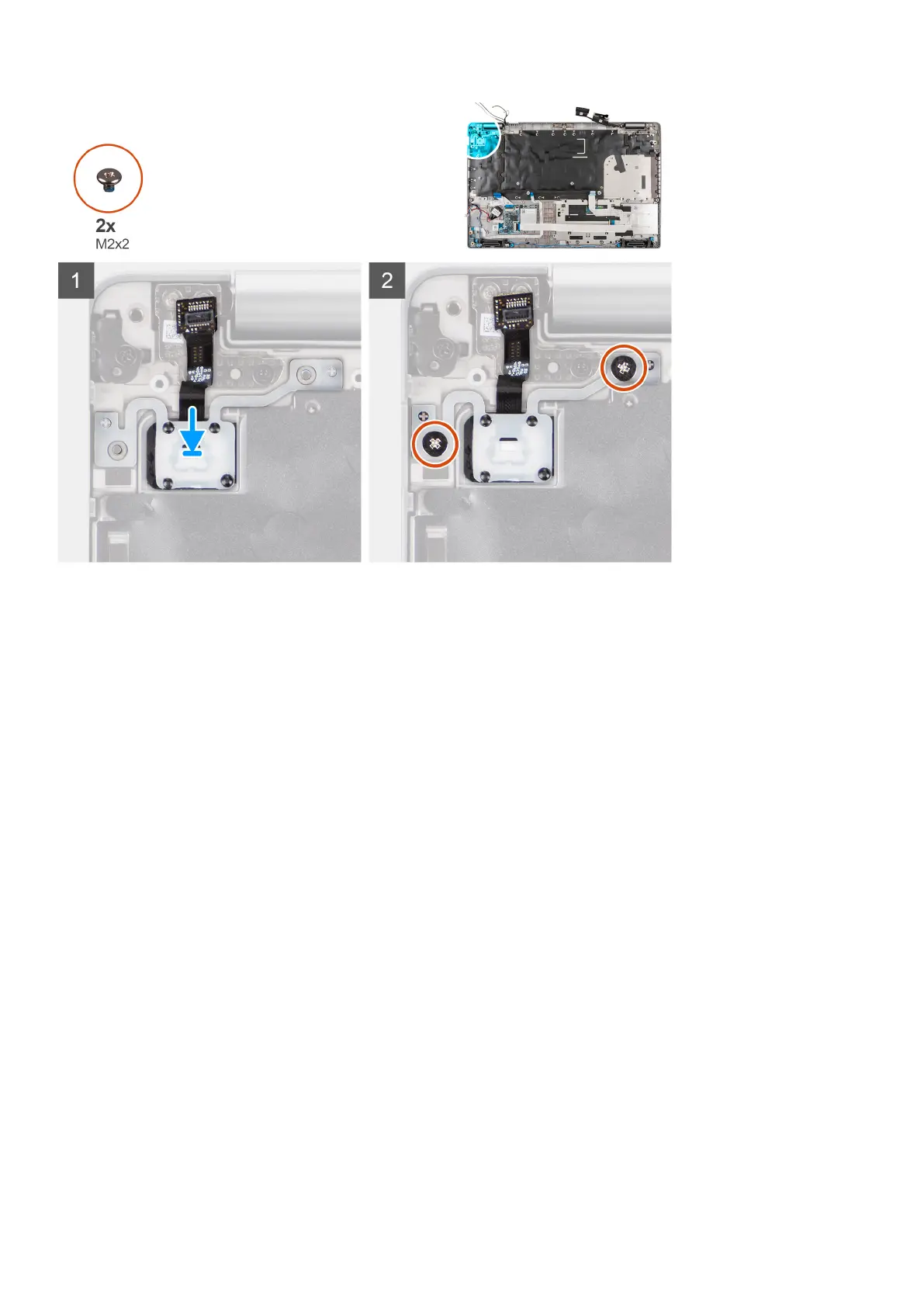

1. Align and place the power-button board on the palm-rest assembly.

2. Replace the two screws (M2x2) that secure the power-button board to the palm-rest assembly.

Next steps

1. Install the system board.

2. Install the assembly inner frame.

3. Install the battery.

4. Install the WWAN card.

5. Install the WLAN card.

6. Install the 2280 solid-state drive or 2230 solid-state drive.

7. Install the memory module.

8. Install the base cover.

9. Install the microSD card.

10. Install the SIM card.

11. Follow the procedure in After working inside your computer.

Smart card reader

Removing the smart card reader

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the SIM card.

3. Remove the microSD card.

4. Remove the base cover.

5. Remove the 2280 solid-state drive or 2230 solid-state drive.

6. Remove the WLAN card.
