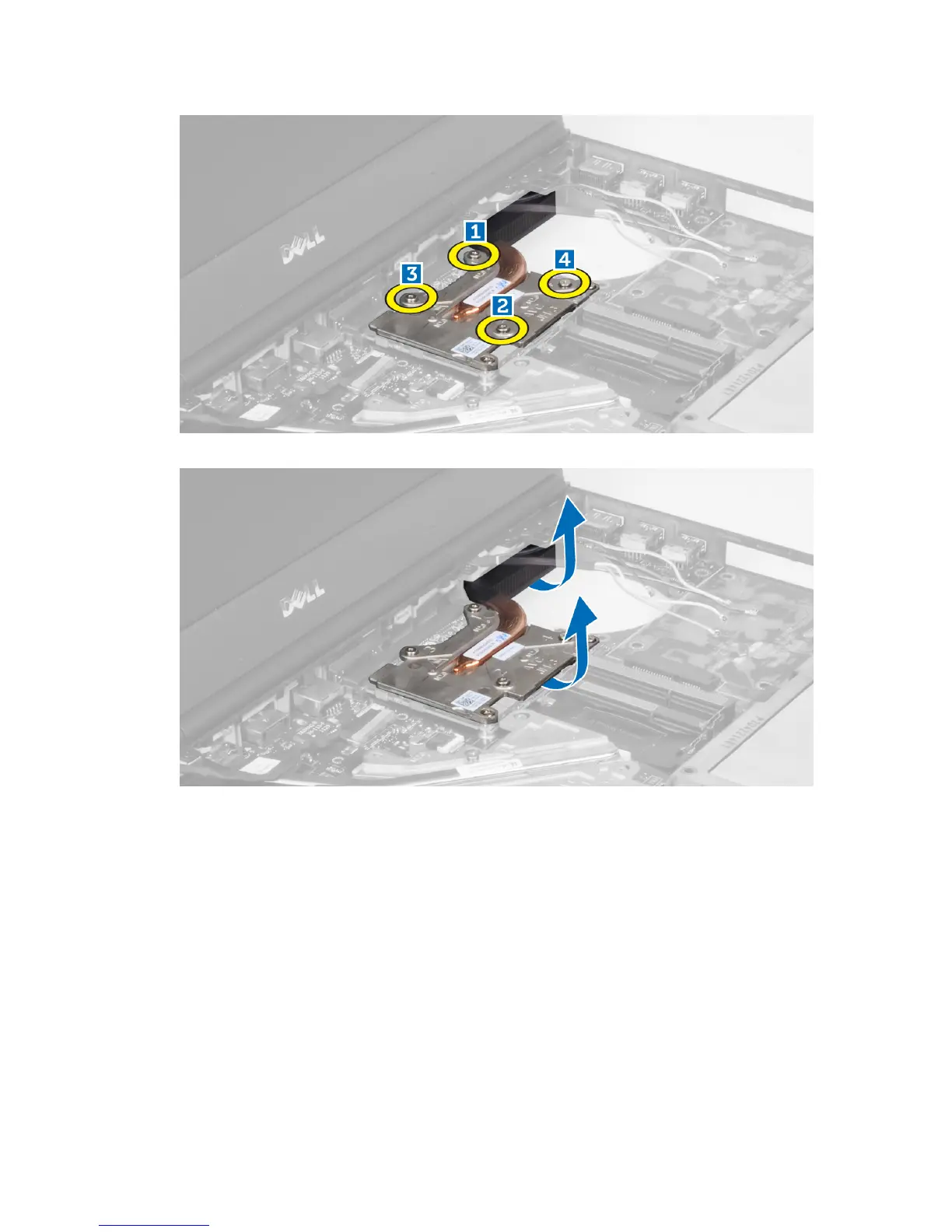

6. Remove the video-card heat sink from the computer.
Installing the Video-Card Heat Sink
1. Slide the heat sink into its original position in the computer.
2. Tighten the captive screws to secure the heat sink.
3. Route and connect the antenna cables to the installed wireless cards.
4. Install the:
a) video fan
b) palm rest
c) hard drive
d) optical drive
e) keyboard
f) keyboard trim
38

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell Precision Mobile Workstation M4700 and is the answer not in the manual?

Dell Precision Mobile Workstation M4700 Specifications

General IconGeneral
RAMUp to 32GB DDR3
WirelessWi-Fi 802.11a/b/g/n, Bluetooth 4.0
ChipsetIntel QM77 Express
ProcessorIntel Core i5 or i7
GraphicsNVIDIA Quadro K1000M, K2000M or AMD FirePro M4000
Display15.6-inch HD (1366x768) or FHD (1920x1080)
StorageUp to 750GB HDD
Operating SystemWindows 7, Windows 8
Battery6-cell (60Wh) or 9-cell (97Wh)
PortsUSB 3.0, USB 2.0, HDMI, VGA, RJ-45, eSATA
Optical DriveDVD-ROM, DVD+/-RW
