Dell Precision Mobile Workstation M4700 User Manual

a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) hard drive
g) palmrest
h) display assembly

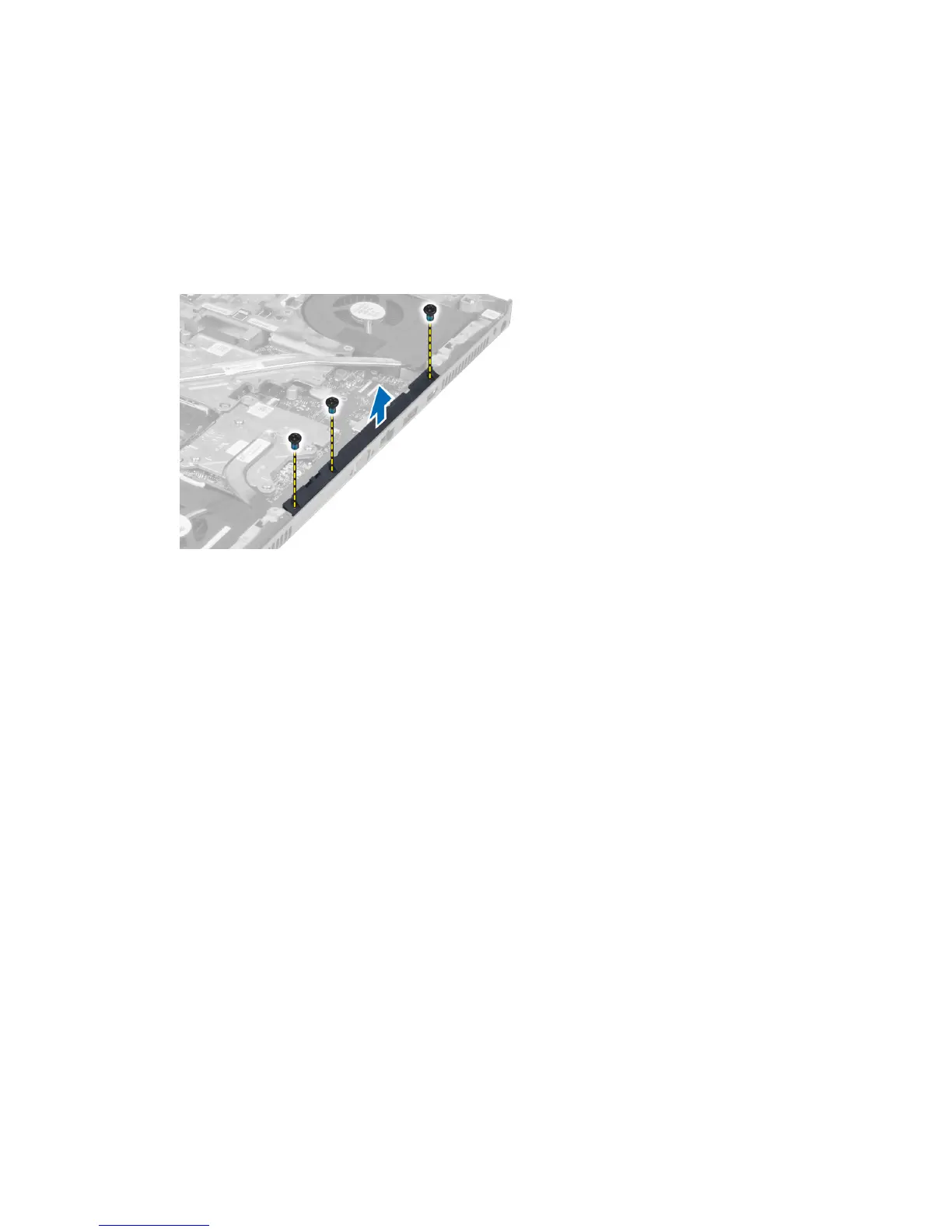

3. Remove the screws that secure the hinge cover to the computer. Remove the hinge cover from the computer.
Installing the Hinge Cover
1. Place the hinge cover in its position on the computer.
2. Tighten the screws to secure the hinge cover to the computer.
3. Install the:
a) display assembly
b) palmrest
c) hard drive
d) optical drive
e) keyboard
f) keyboard trim
g) base cover
h) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) keyboard trim
47

Dell Precision Mobile Workstation M4700 Specifications

General

RAM	Up to 32GB DDR3
Wireless	Wi-Fi 802.11a/b/g/n, Bluetooth 4.0
Chipset	Intel QM77 Express
Processor	Intel Core i5 or i7
Graphics	NVIDIA Quadro K1000M, K2000M or AMD FirePro M4000
Display	15.6-inch HD (1366x768) or FHD (1920x1080)
Storage	Up to 750GB HDD
Operating System	Windows 7, Windows 8
Battery	6-cell (60Wh) or 9-cell (97Wh)
Ports	USB 3.0, USB 2.0, HDMI, VGA, RJ-45, eSATA
Optical Drive	DVD-ROM, DVD+/-RW
