Dell Precision Mobile Workstation M4700 User Manual

g) bottom door
h) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Video Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) hard drive
g) palm rest
h) video-card fan
i) video-card heat sink
j) heatsink

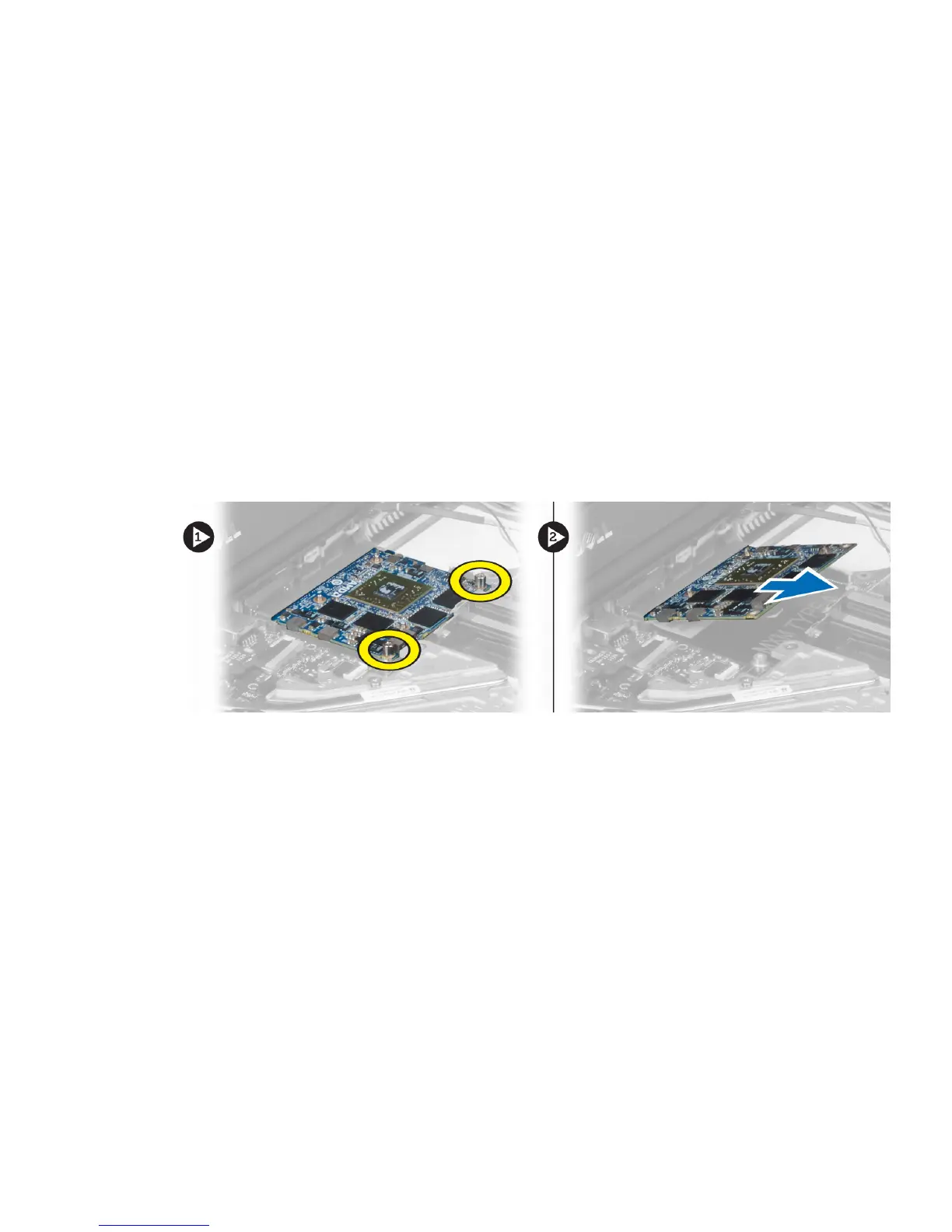

3. Remove the screws that secure the video card to the computer. Remove the video card from the computer.
Installing the Video Card
1. Insert the video card into its slot in the computer.
2. Tighten the screws to secure it to the computer.
3. Install the:
a) heatsink
b) video-card heat sink
c) video-card fan
d) palm rest
e) hard drive
f) optical drive
g) keyboard
h) keyboard trim
i) base cover
j) battery
4. Follow the procedures in After Working Inside Your Computer.
39

Dell Precision Mobile Workstation M4700 Specifications

General

RAM	Up to 32GB DDR3
Wireless	Wi-Fi 802.11a/b/g/n, Bluetooth 4.0
Chipset	Intel QM77 Express
Processor	Intel Core i5 or i7
Graphics	NVIDIA Quadro K1000M, K2000M or AMD FirePro M4000
Display	15.6-inch HD (1366x768) or FHD (1920x1080)
Storage	Up to 750GB HDD
Operating System	Windows 7, Windows 8
Battery	6-cell (60Wh) or 9-cell (97Wh)
Ports	USB 3.0, USB 2.0, HDMI, VGA, RJ-45, eSATA
Optical Drive	DVD-ROM, DVD+/-RW
