Dell Precision Mobile Workstation M4700 User Manual

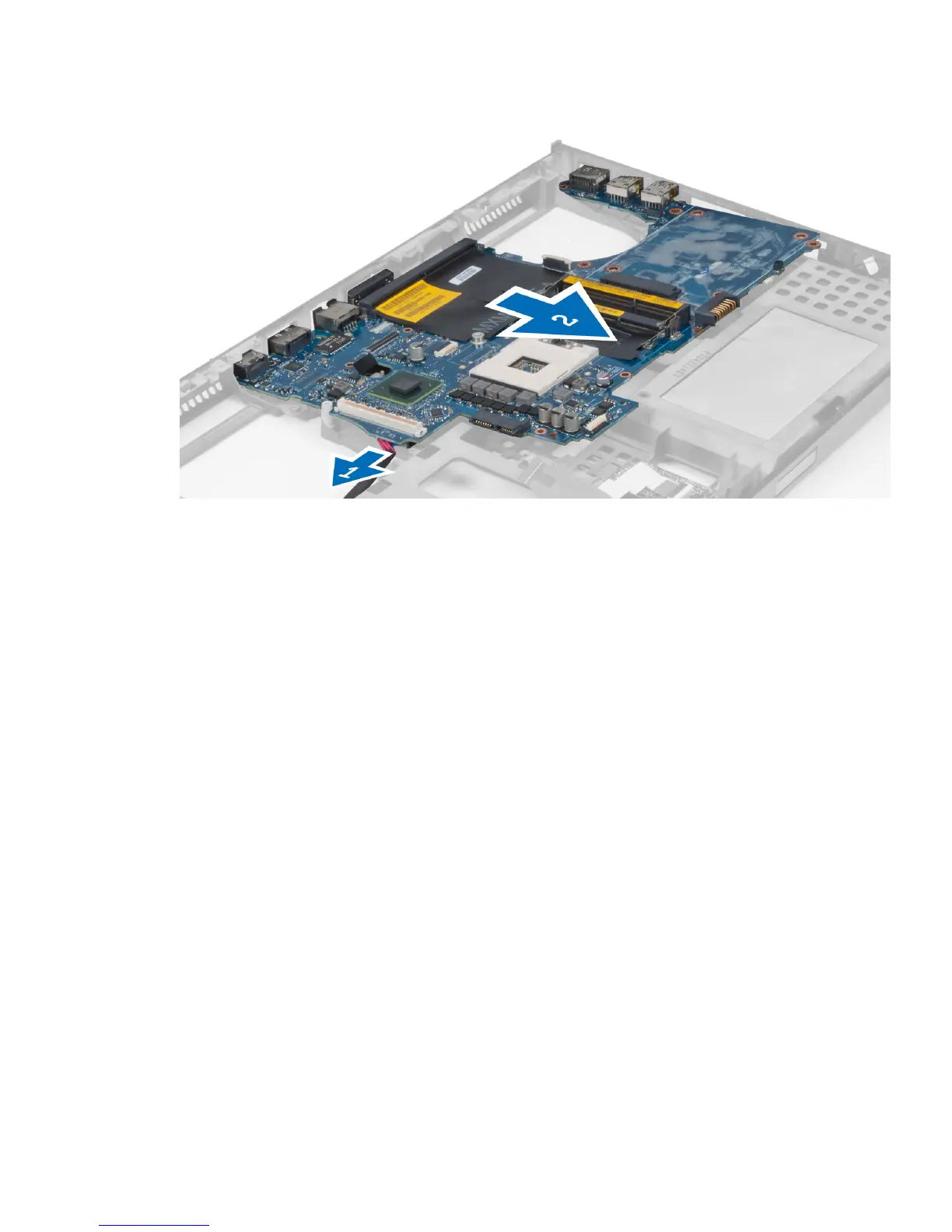

10. Disconnect the power connector cable and remove the system board.
Installing the System Board
1. Connect the power connector cable to the system board.
2. Place the system board in its compartment.
3. Tighten the screws to secure the system board to the computer.
4. Connect the following cables:
a) USH connector
b) bluetooth
c) wireless board connectors
d) coin-cell battery
5. Install the wireless cards (if available).
6. Install the:
a) display assembly
b) I/O board
c) video card
d) video-card heat sink
e) processor
f) heat sink
g) palmrest
h) video-card fan
i) processor fan
j) secondary memory
k) primary memory
l) hard drive
m) optical drive
n) keyboard
o) keyboard trim
50

Dell Precision Mobile Workstation M4700 Specifications

General

RAM	Up to 32GB DDR3
Wireless	Wi-Fi 802.11a/b/g/n, Bluetooth 4.0
Chipset	Intel QM77 Express
Processor	Intel Core i5 or i7
Graphics	NVIDIA Quadro K1000M, K2000M or AMD FirePro M4000
Display	15.6-inch HD (1366x768) or FHD (1920x1080)
Storage	Up to 750GB HDD
Operating System	Windows 7, Windows 8
Battery	6-cell (60Wh) or 9-cell (97Wh)
Ports	USB 3.0, USB 2.0, HDMI, VGA, RJ-45, eSATA
Optical Drive	DVD-ROM, DVD+/-RW
