Dell Precision Mobile Workstation M4700 User Manual

p) base cover
q) battery
r) ExpressCard
s) SD card
7. Follow the procedures in After Working Inside Your Computer .
Removing the Power-Connector Port
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) keyboard trim
f) keyboard
g) optical drive
h) hard drive
i) primary memory
j) secondary memory
k) processor fan
l) video-card fan
m) palm rest
n) processor heatsink
o) processor
p) video-card heatsink
q) video card
r) I/O board
s) display assembly
t) system board

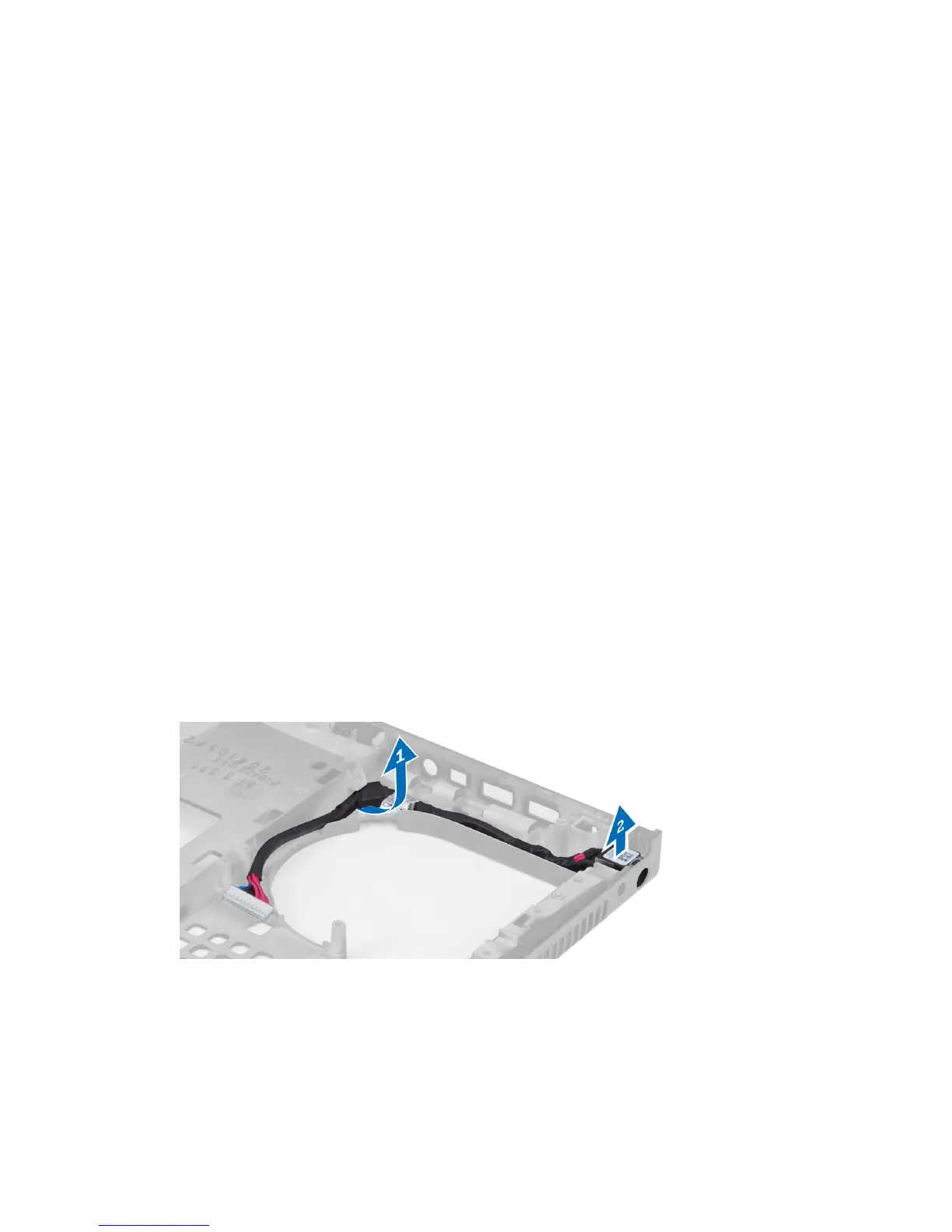

3. Un-route and lift up the power-connector cable from the chassis to remove the power-connector port.
Installing the Power-Connector Port
1. Insert the power-connector port in its slot and route the power-connector cable to the chassis.
2. Install the:
51

Dell Precision Mobile Workstation M4700 Specifications

General

RAM	Up to 32GB DDR3
Wireless	Wi-Fi 802.11a/b/g/n, Bluetooth 4.0
Chipset	Intel QM77 Express
Processor	Intel Core i5 or i7
Graphics	NVIDIA Quadro K1000M, K2000M or AMD FirePro M4000
Display	15.6-inch HD (1366x768) or FHD (1920x1080)
Storage	Up to 750GB HDD
Operating System	Windows 7, Windows 8
Battery	6-cell (60Wh) or 9-cell (97Wh)
Ports	USB 3.0, USB 2.0, HDMI, VGA, RJ-45, eSATA
Optical Drive	DVD-ROM, DVD+/-RW
