Dell Precision Mobile Workstation M4700 User Manual

g) palmrest

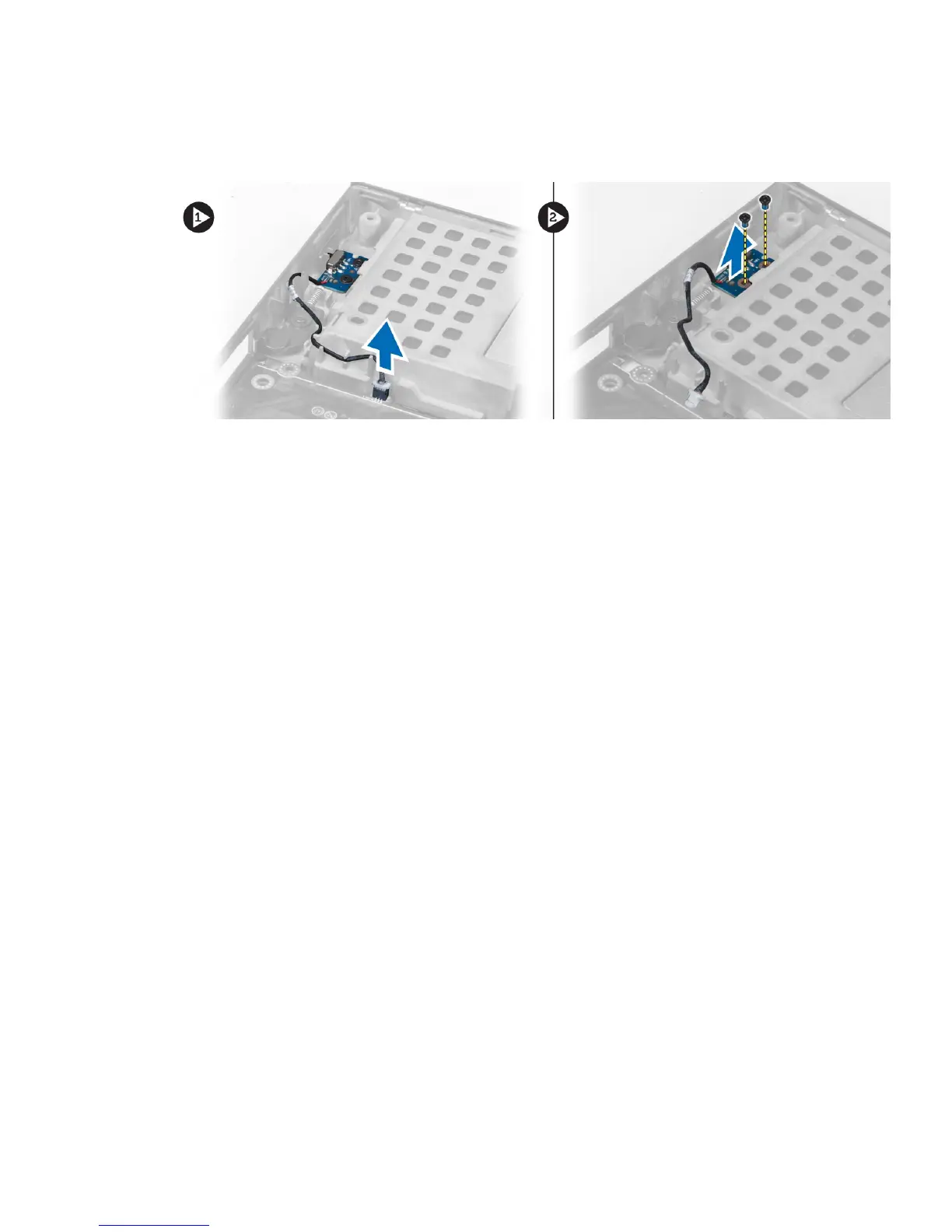

3. Disconnect the switch-board cable from the system board and remove it from the latches. Remove the screws that
secure the switch board to the computer and remove it from the computer.
Installing the Switch Board
1. Align the switch board to its original position on the computer.
2. Tighten the screws to secure the switch board to the computer.
3. Connect the switch-board cable to the system board and secure it through the routing channel.
4. Install the:
a) palmrest
b) hard drive
c) optical drive
d) keyboard
e) keyboard trim
f) base cover
g) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Unified Security Hub (USH) Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) hard drive
g) palmrest
3. Disconnect the smart-card and the USH cable from the system board. Remove the screws that secure the USH
board to the computer and remove it from the computer.
42

Dell Precision Mobile Workstation M4700 Specifications

General

RAM	Up to 32GB DDR3
Wireless	Wi-Fi 802.11a/b/g/n, Bluetooth 4.0
Chipset	Intel QM77 Express
Processor	Intel Core i5 or i7
Graphics	NVIDIA Quadro K1000M, K2000M or AMD FirePro M4000
Display	15.6-inch HD (1366x768) or FHD (1920x1080)
Storage	Up to 750GB HDD
Operating System	Windows 7, Windows 8
Battery	6-cell (60Wh) or 9-cell (97Wh)
Ports	USB 3.0, USB 2.0, HDMI, VGA, RJ-45, eSATA
Optical Drive	DVD-ROM, DVD+/-RW
