● Phillips screwdriver #0
● Phillips screwdriver #1
● Torx #5 (T5) screwdriver
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

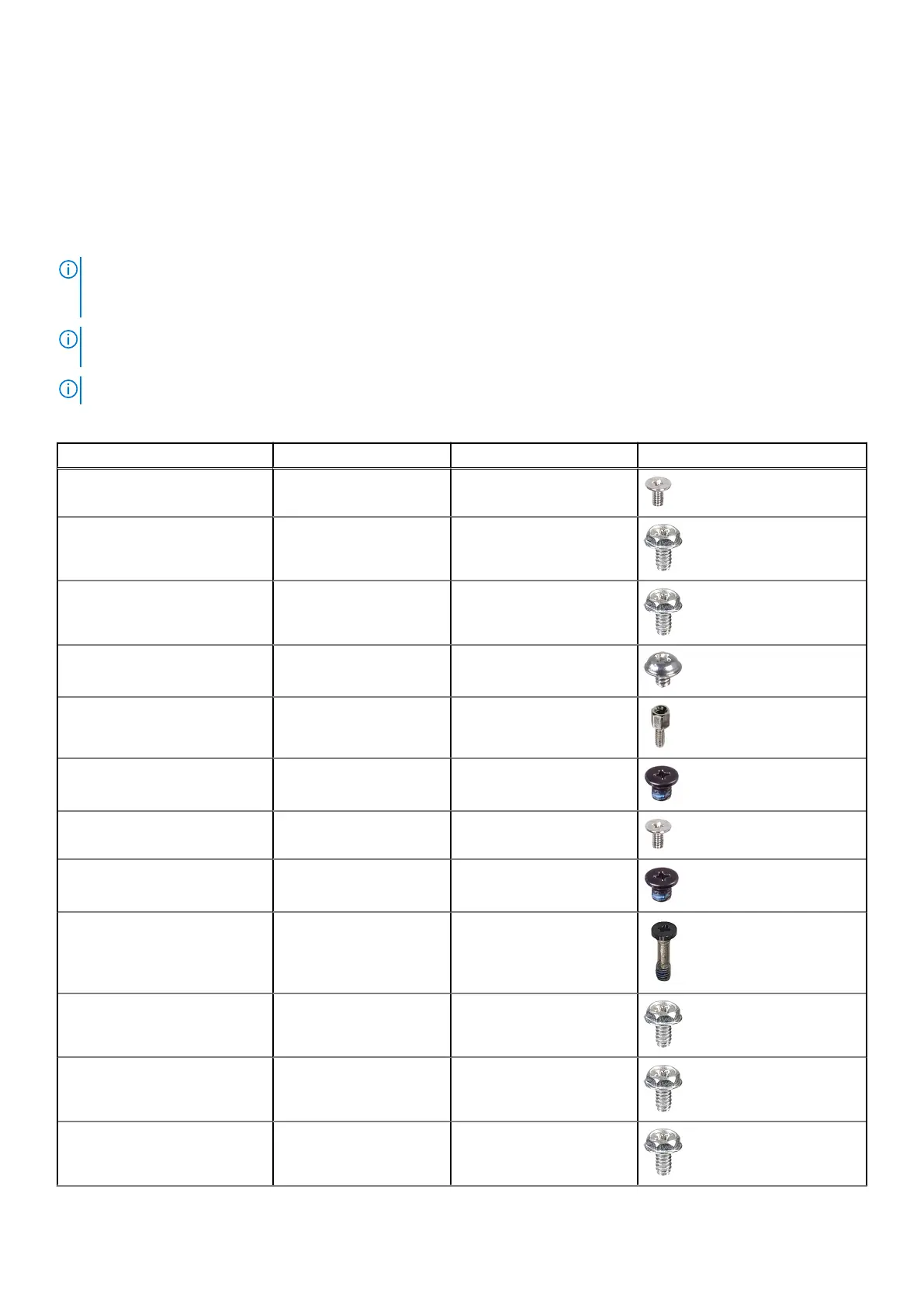

Table 26. Screw list
Component Screw type Quantity Screw image
M.2 2230/M.2 2280 Solid-state
drive
M2x3.5 1
Hard-drive and optical-drive
cage
#6-32 2
Optical-drive supporting bracket #6-32 1
3.5-inch Hard-drive #6-32 2
Serial/VGA module (optional) M3 2
DP/HDMI module (optional) M3x3 2
WLAN card M2x3.5 1
Internal antenna module M3x3 2
Processor-fan and heat-sink
assembly
Captive 4
Power-supply unit #6-32
3
Front I/O bracket #6-32 1
System board #6-32 7
34 Working inside your computer
