VGA module

Removing the VGA module

CAUTION: The information in this removal section is intended for authorized service technicians only.

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the side cover.

3. Remove the front bezel.

4. Remove the 3.5-inch hard drive, if applicable.

5. Remove the disk-drive cage.

6. Remove the processor fan and heat-sink assembly.

About this task

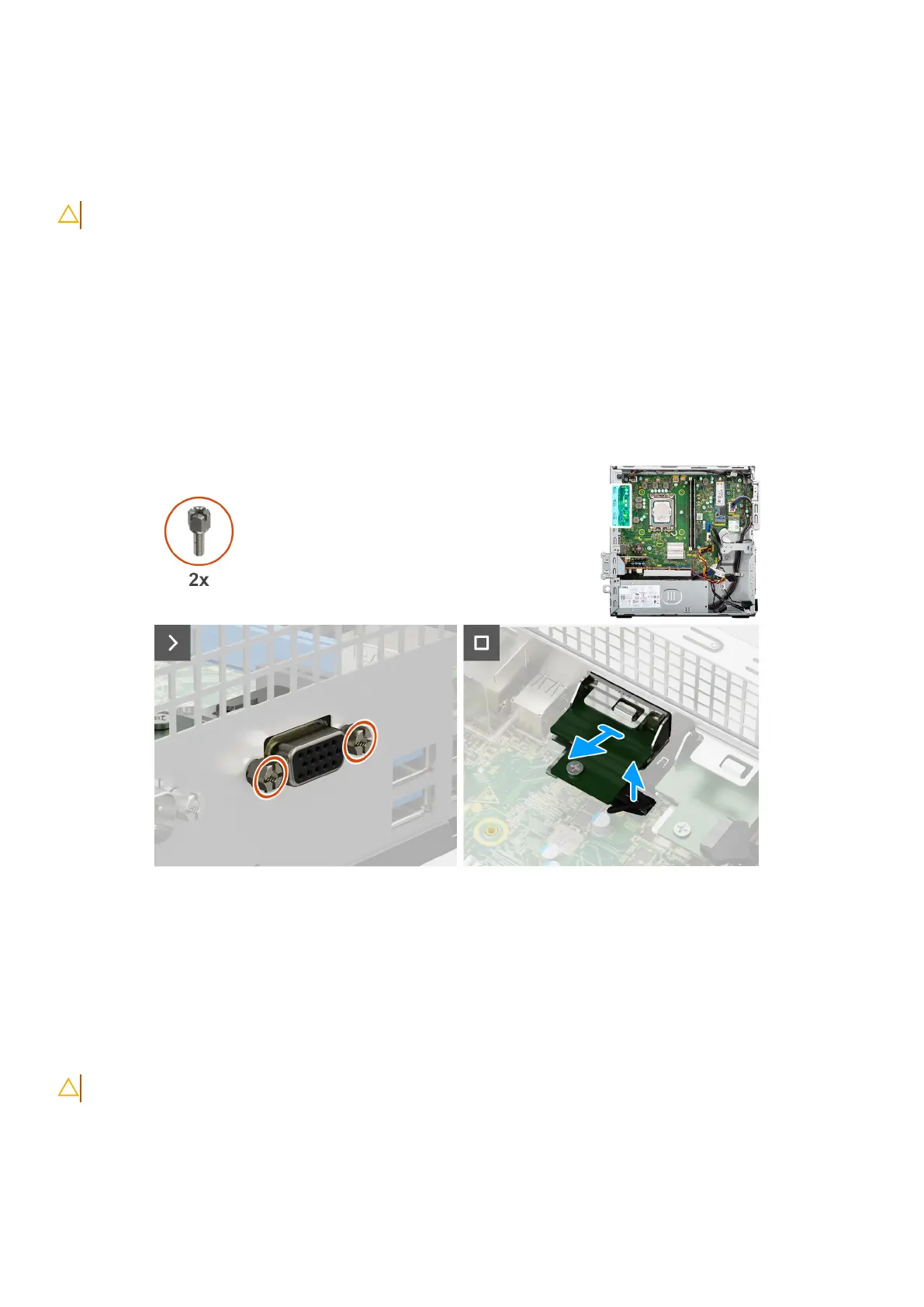

The following image indicates the location of the VGA module and provides a visual representation of the removal procedure.

Figure 50. Removing the VGA module

Steps

1. Remove the two screws (M3) that secure the VGA module to the chassis.

2. Disconnect the VGA-module cable from its connector (VIDEO) on the system board.

3. Lift the VGA module off the system board.

Installing the VGA module

CAUTION: The information in this removal section is intended for authorized service technicians only.

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

Removing and installing Field Replaceable Units (FRUs)
