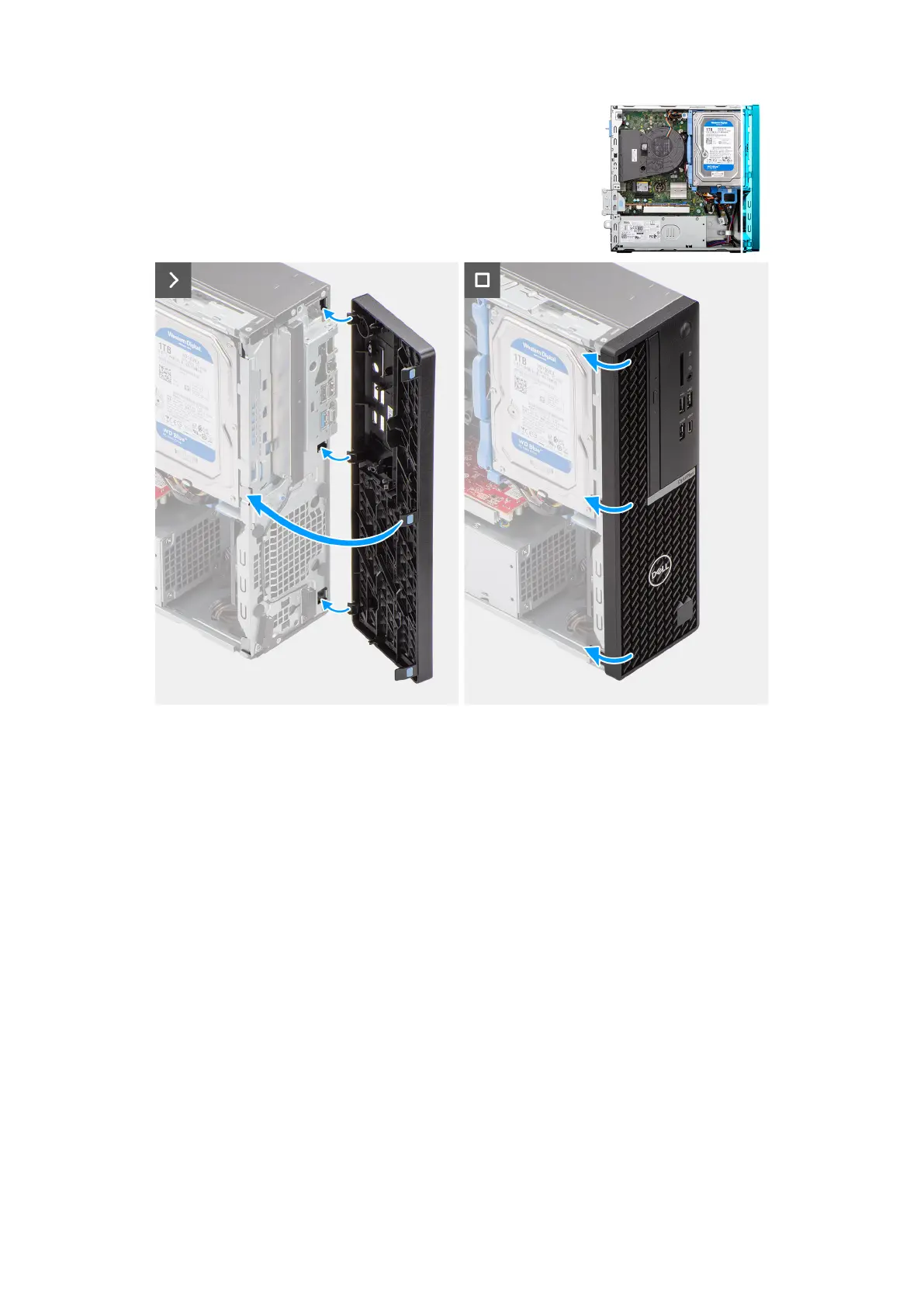

Figure 8. Installing the front bezel
Steps
1. Insert the tabs on the right side of the bezel into the corresponding slots on the chassis.
2. Push the left-side of the front bezel towards the side cover, snapping the tabs into position.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
3.5-inch hard drive
Removing the 3.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the 3.5-inch hard drive assembly and provide a visual representation of the removal
procedure.
44
Removing and installing Customer Replaceable Units (CRUs)
Restricted - Confidential
