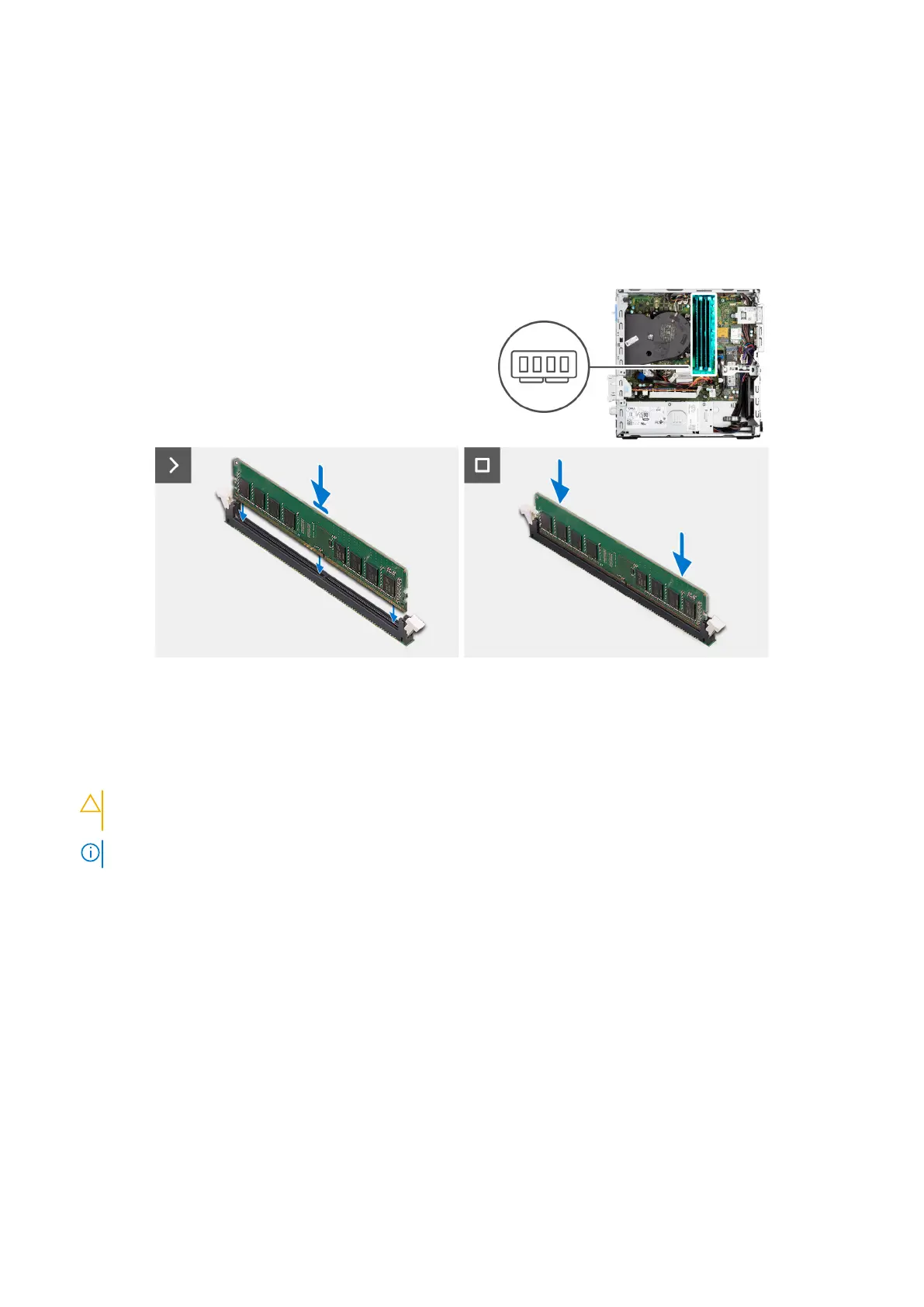

5. Follow the procedure in After working inside your computer.
Solid-state drives
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 3.5-inch hard drive, if applicable.
5. Remove the disk-drive cage.
About this task
The following images indicate the location of the M.2 2230 solid-state drive in slot 0 and provide a visual representation of the
removal procedure.

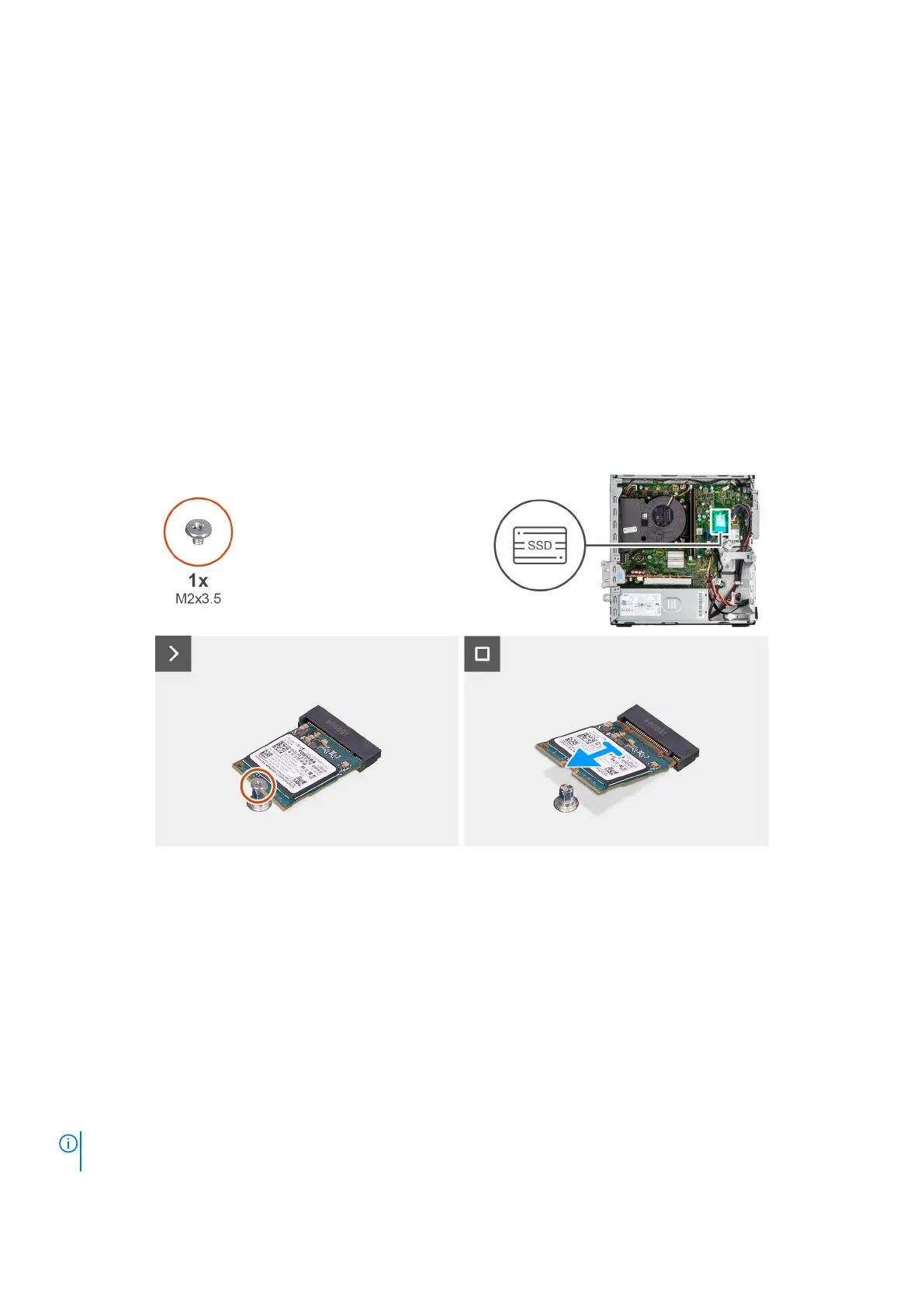

Figure 17. Removing the M.2 2230 solid-state drive
Steps
1. Remove the screw (M2x3.5) that secures the M.2 2230 solid-state drive to the system board.
2. Slide and lift the M.2 2230 solid-state drive off the solid-state drive slot 0 (M.2 PCIE SSD-0) on the system board.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE:
If you are replacing a M.2 2280 solid-state drive with a M.2 2230 solid-state drive, ensure that the M.2 2280
solid-state drive is removed first.
56 Removing and installing Customer Replaceable Units (CRUs)
Restricted - Confidential
