Installing the wireless card

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.

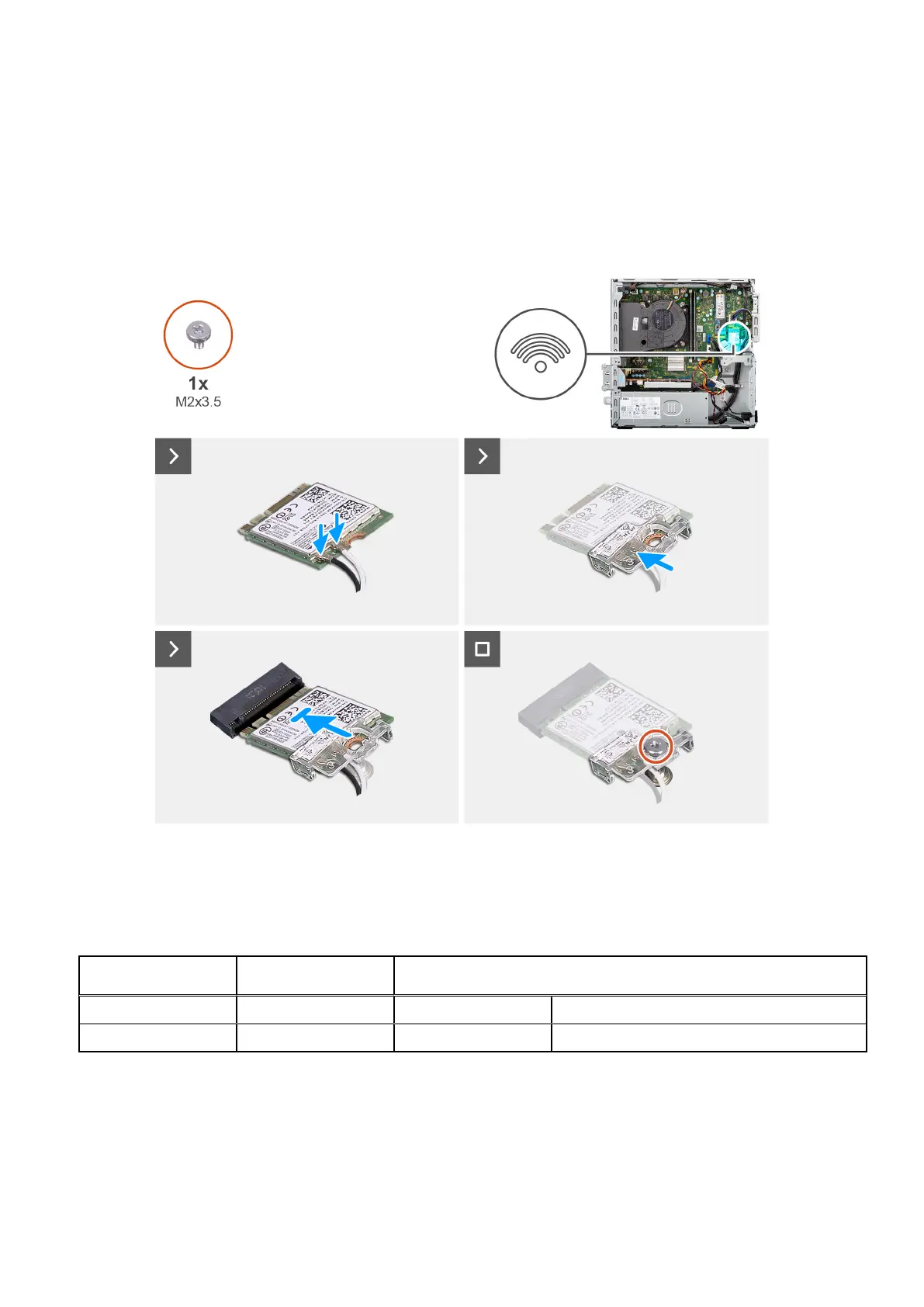

Figure 28. Installing the wireless card

Steps

1. Connect the antenna cables to the wireless card.

Table 27. Antenna-cable color scheme

Connector on the

wireless card

Antenna-cable color Silkscreen marking

Main White MAIN △ (white triangle)

Auxiliary Black AUX ▲ (black triangle)

2. Place the wireless-card bracket on the wireless card.

3. Align the notch on the wireless card with the tab on the wireless-card slot (M.2 WLAN).

4. Slide the wireless card at an angle into the wireless-card slot (M.2 WLAN).

5. Replace the screw (M2x3.5) that secures the wireless-card bracket to the wireless card.

Removing and installing Customer Replaceable Units (CRUs)
