Wireless card

Removing the wireless card

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the side cover.

3. Remove the front bezel.

4. Remove the 3.5-inch hard drive, if applicable.

5. Remove the disk-drive cage.

About this task

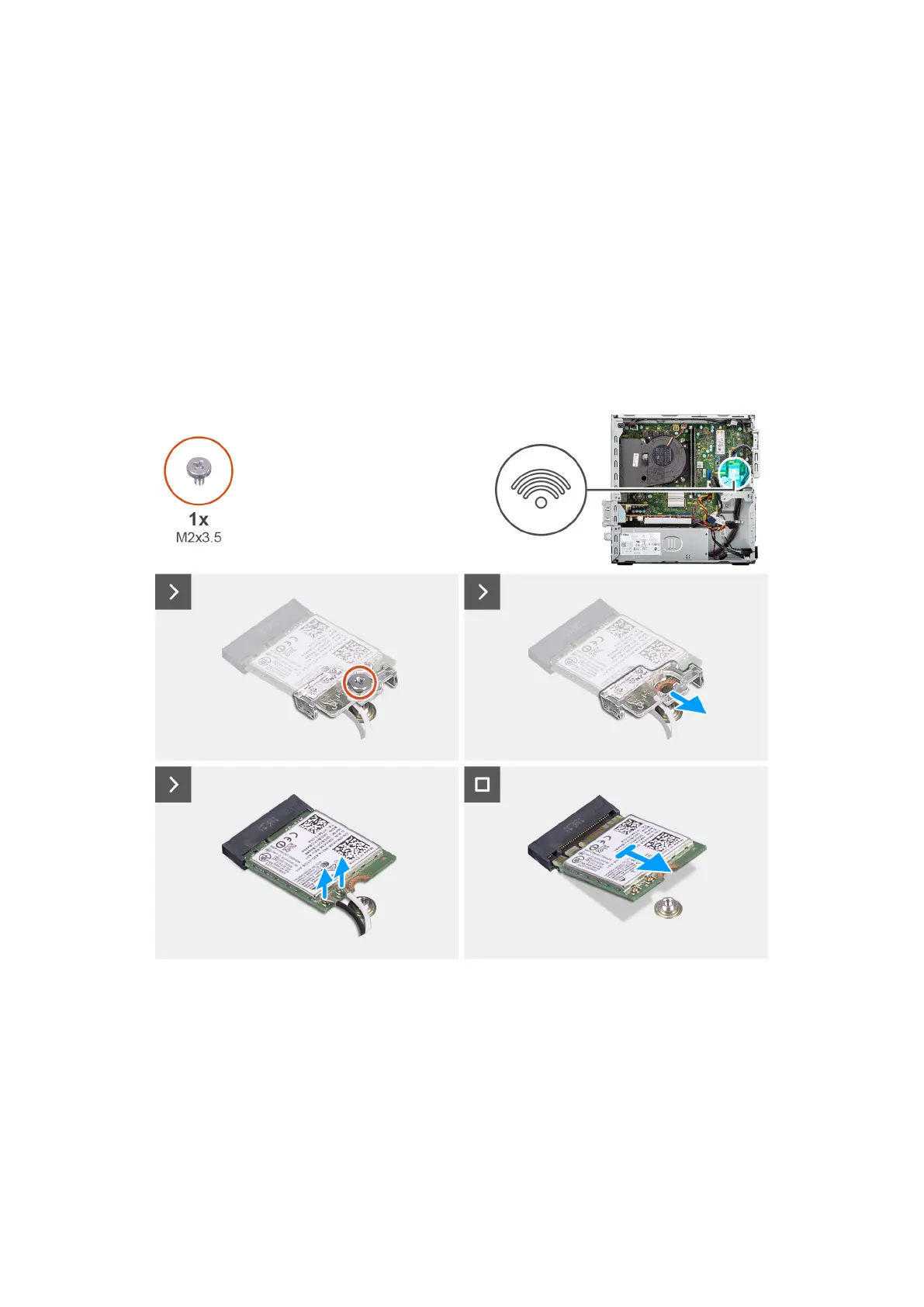

The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.

Figure 27. Removing the wireless card

Steps

1. Remove the screw (M2x3.5) that secures the wireless-card bracket to the system board.

2. Slide and lift the wireless-card bracket off the wireless card.

3. Disconnect the antenna cables from the wireless card.

4. Slide and remove the wireless card from the wireless-card slot (M.2 WLAN) on the system board.
