● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Table 24. Screw list
Component Screw type Quantity
Side cover #6-32 (Captive screws)
1
System board M3x5
M3x4
5
3
Wireless card M2x3.5 1
M.2 2230/2280 solid-state drive M2x3.5 1
Internal antenna M3x3
3
I/O module M3x3
or
M2x5, cross type
2
Type-C module M3x3 2
Major components of OptiPlex Micro Plus 7010

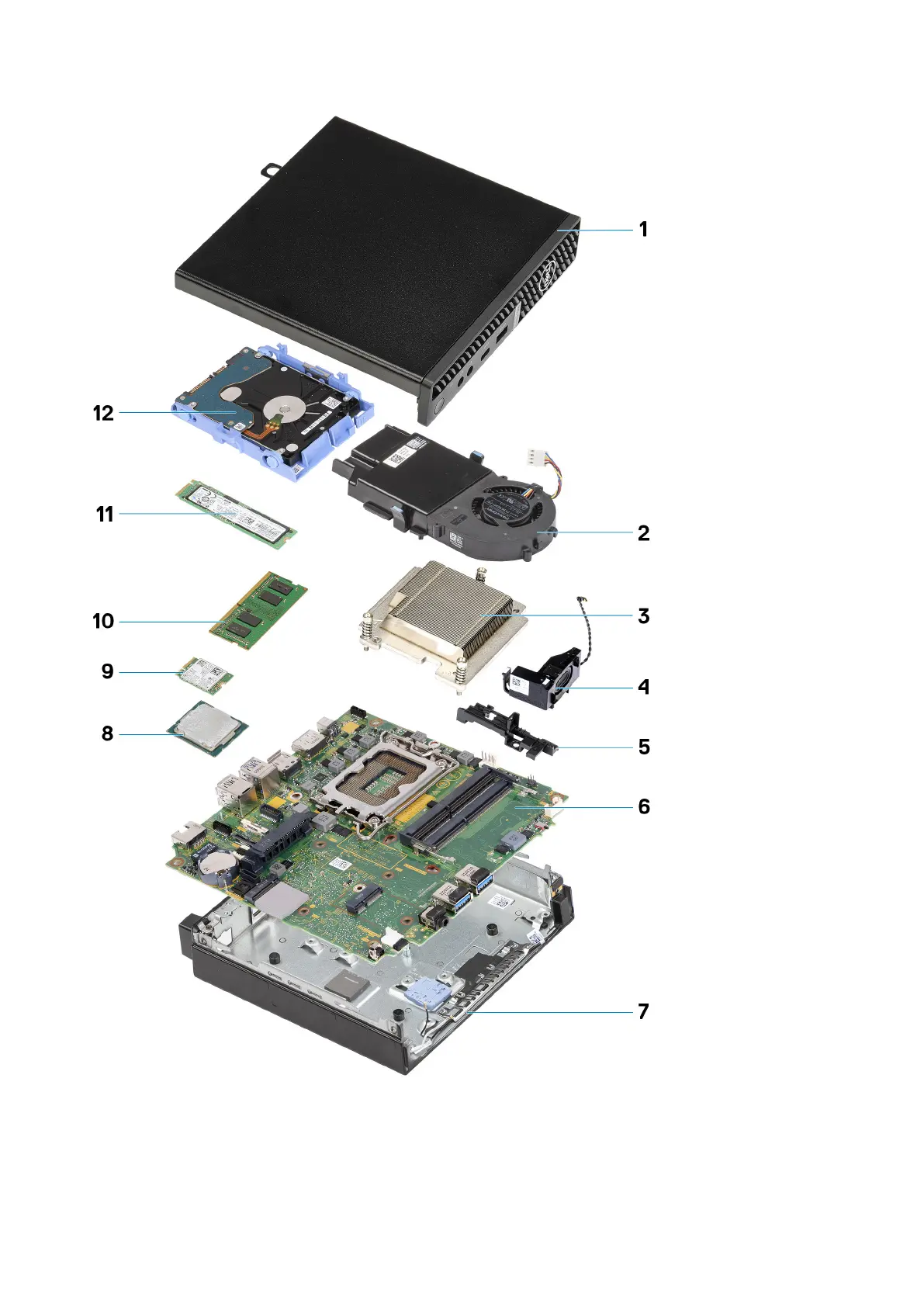

The following image shows the major components of OptiPlex Micro Plus 7010.
Working inside your computer
27
