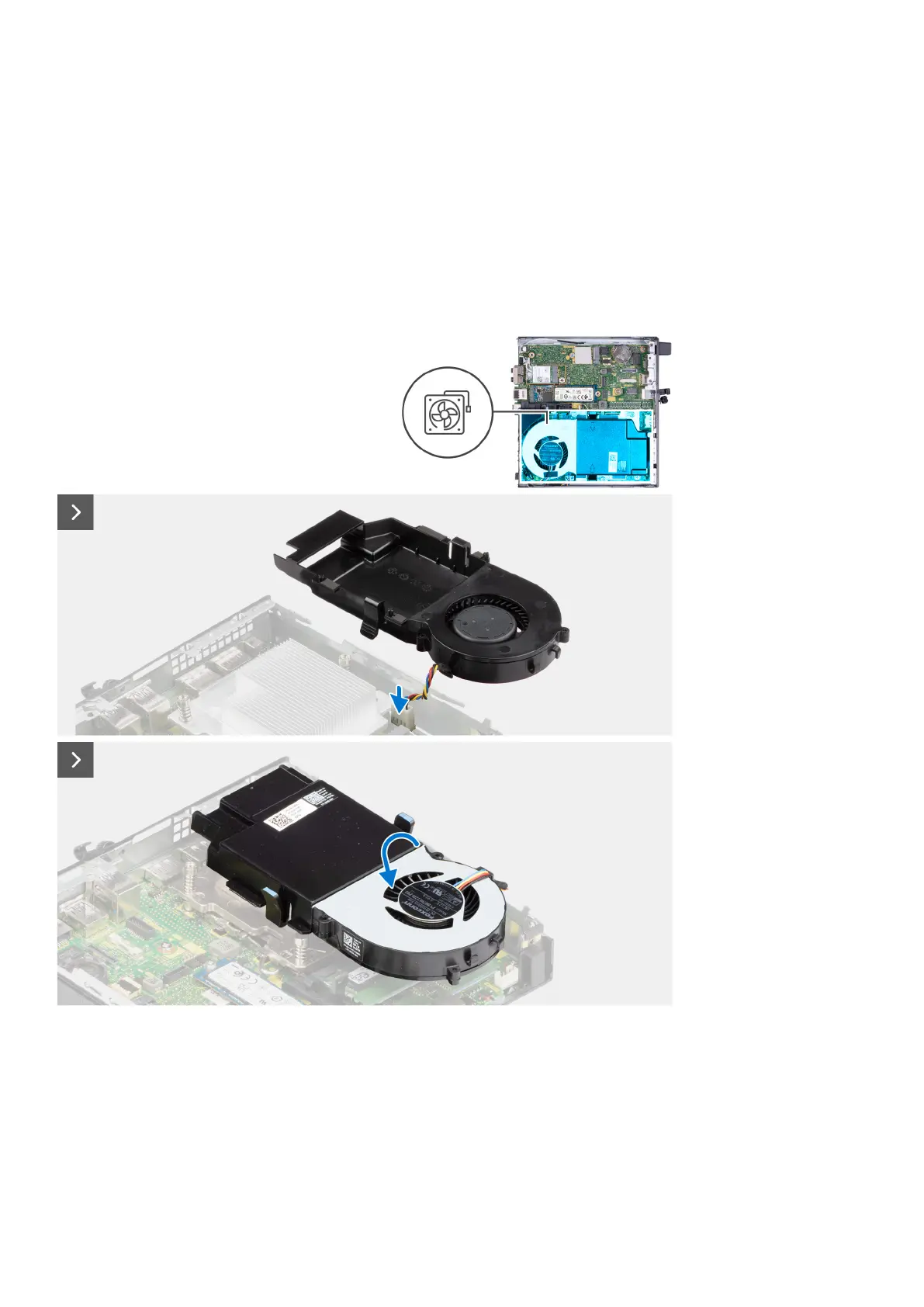

4. Disconnect the fan cable from the system board.
5. Lift the fan off the fan shroud.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the fan and provides a visual representation of the installation procedure.
50 Removing and installing Customer Replaceable Units (CRUs)
