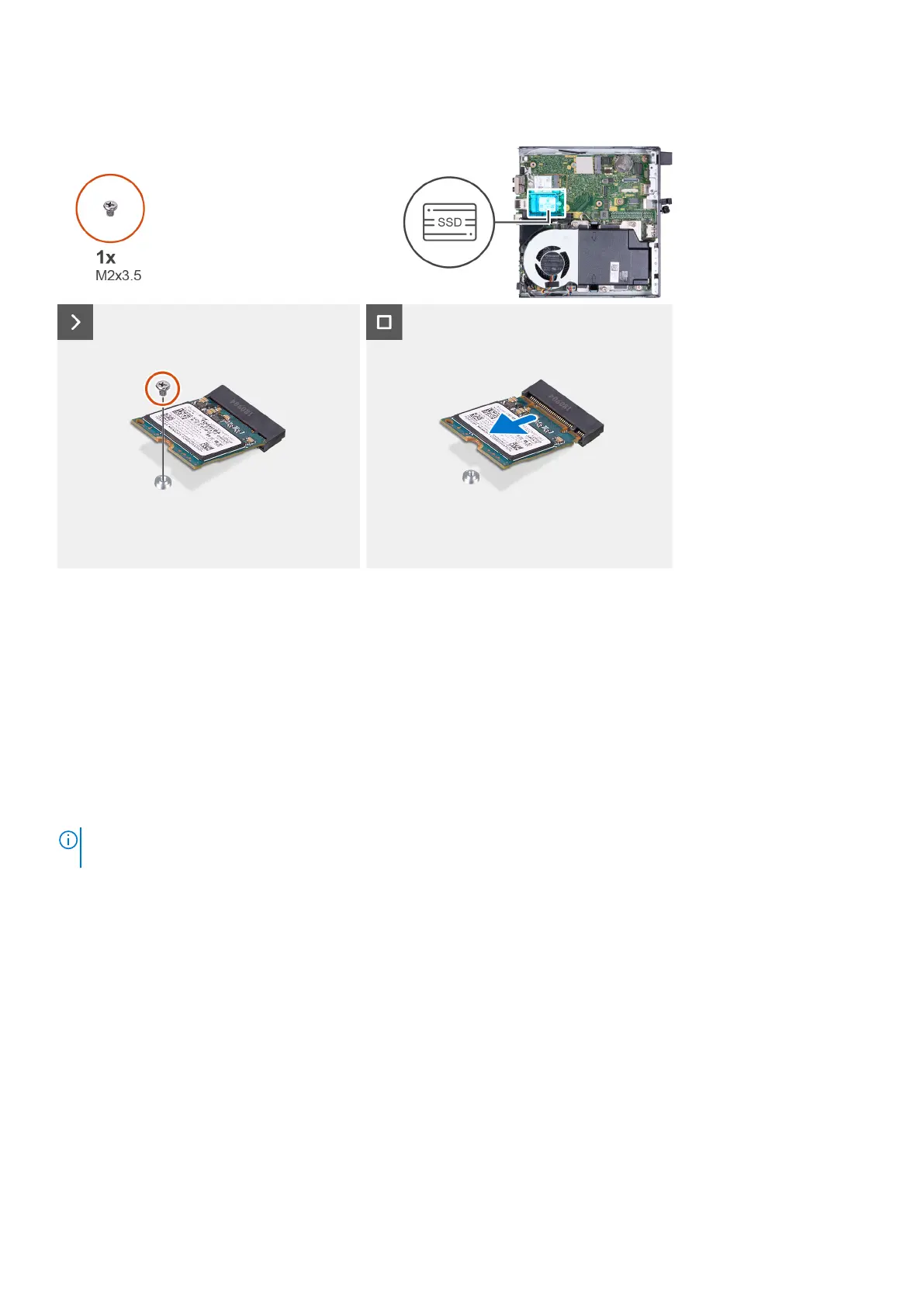

The following image(s) indicate the location of the M.2 2230 solid-state drive in slot 0 and provides a visual representation of
the removal procedure.
Steps
1. Remove the screw (M2x3.5) that secures the M.2 2230 solid-state drive to the system board
2. Slide and lift the M.2 2230 solid-state drive off the solid-state drive slot 0 (M.2 PCIe SSD 0) on the system board.
Installing the M.2 2230 solid-state drive in slot 0
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE:
This procedure is only applicable if you are installing an M.2 2230 solid-state drive into solid-state drive slot 0 (M.2
PCIe SSD 0) on the system board.
The following image(s) indicate the location of the M.2 2230 solid-state drive in slot 0 and provides a visual representation of
the installation procedure.
36
Removing and installing Customer Replaceable Units (CRUs)
