Steps

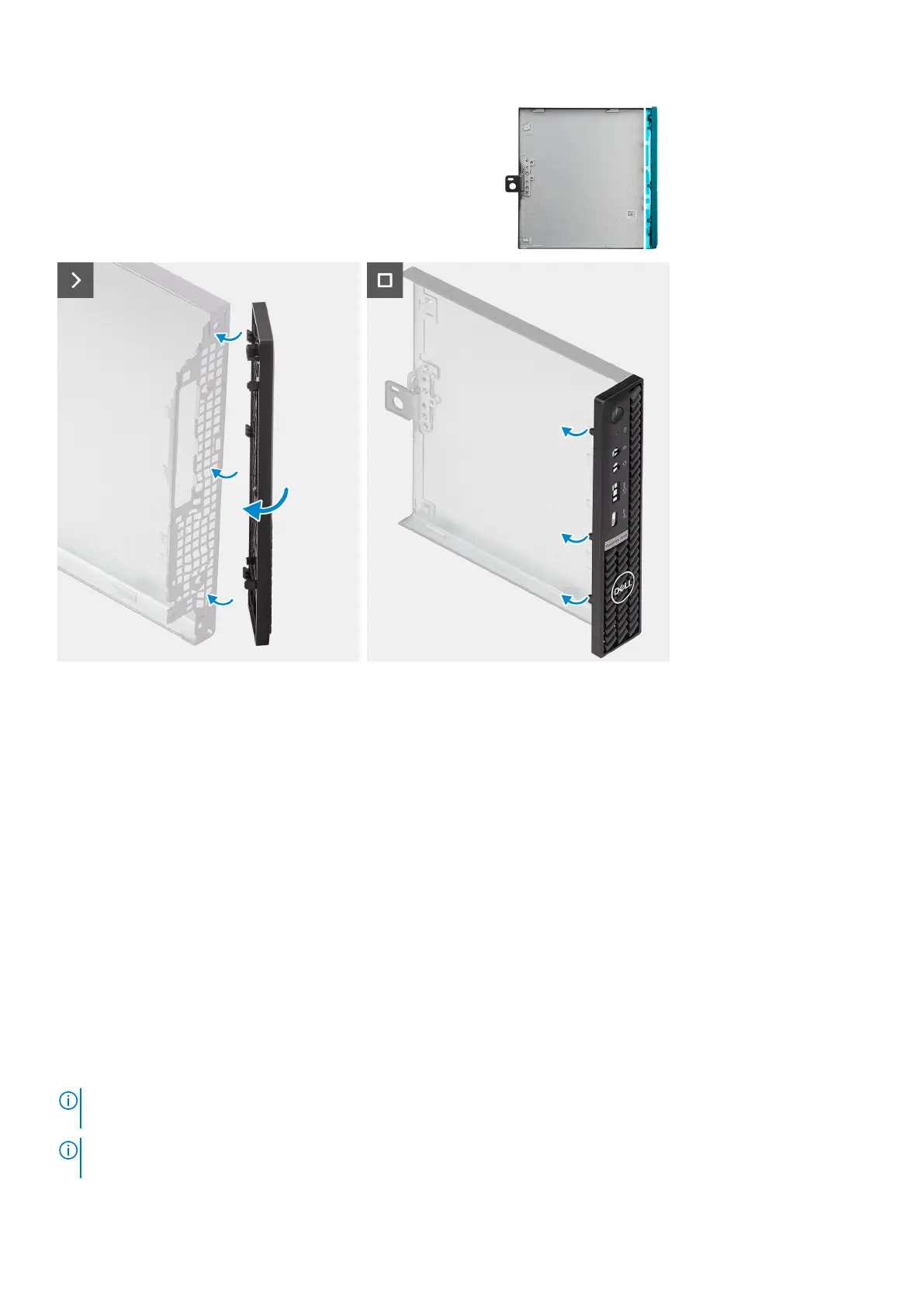

1. Insert the right-side front-bezel tabs into the corresponding slots on the side cover.
2. Push the left-side of the front bezel towards the side cover, snapping the tabs into position.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2230 solid-state drive from slot 0
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
NOTE:
Depending on the configuration ordered, your computer may have an M.2 2230 or an M.2 2280 solid-state drive
installed in solid-state drive slot 0 (M.2 PCIe SSD 0) on the system board.
NOTE: This procedure is applicable for computers where an M.2 2230 solid-state drive is installed in solid-state drive slot 0
(M.2 PCIe SSD 0) on the system board.
Removing and installing Customer Replaceable Units (CRUs) 35
