Steps

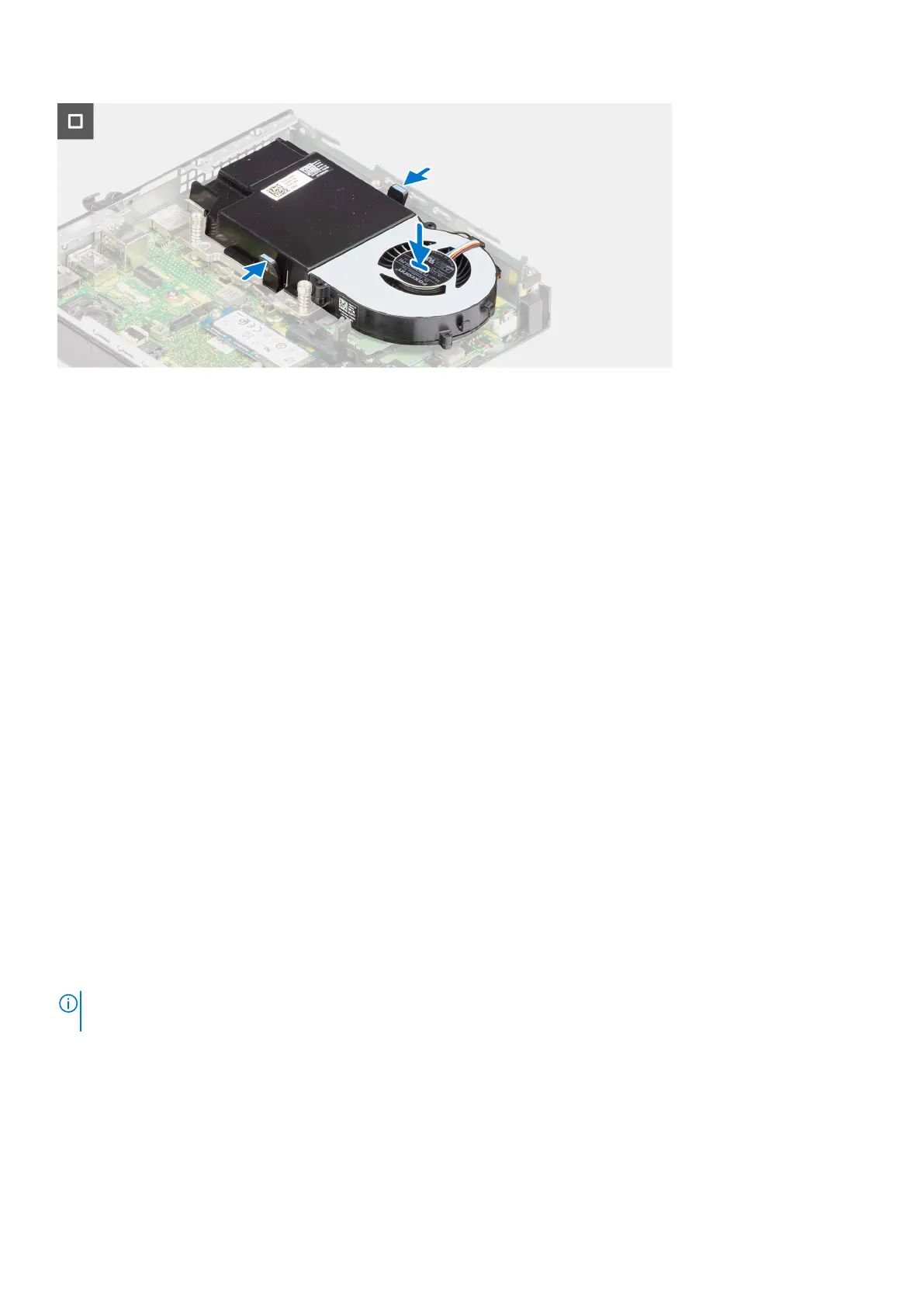

1. Place the fan on the fan shroud.
2. Align the tabs on the fan with the slots on the fan shroud.
3. Snap the fan into place on the fan shroud.
4. Connect the fan cable to the system board.
5. Flip over the fan assembly.
6. Press and hold the tabs on the fan assembly.
7. Place the fan assembly into the slot on the system board and release the tabs.
8. Press and hold on the tab that secures the speaker to the system board.
9. Place the speaker on the system board.
10. Release the tab that secures the speaker to the system board.
Next steps
1. Install the speaker.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
NOTE:
Removing the coin-cell battery resets the BIOS settings to default. It is recommended that you note the BIOS
settings before removing the coin-cell battery.
The following image(s) indicate the location of the coin-cell battery and provides a visual representation of the removal
procedure.
Removing and installing Customer Replaceable Units (CRUs)
51
