Steps
1. Remove the screw (M3x5) that secures the speaker-support bracket to the system board.
2. Lift the speaker-support bracket off the system board.
3. Remove the four screws (M3x5) that secures the system board to the chassis.
4. Remove the three screws (M3x4) that secures the system board to the chassis.

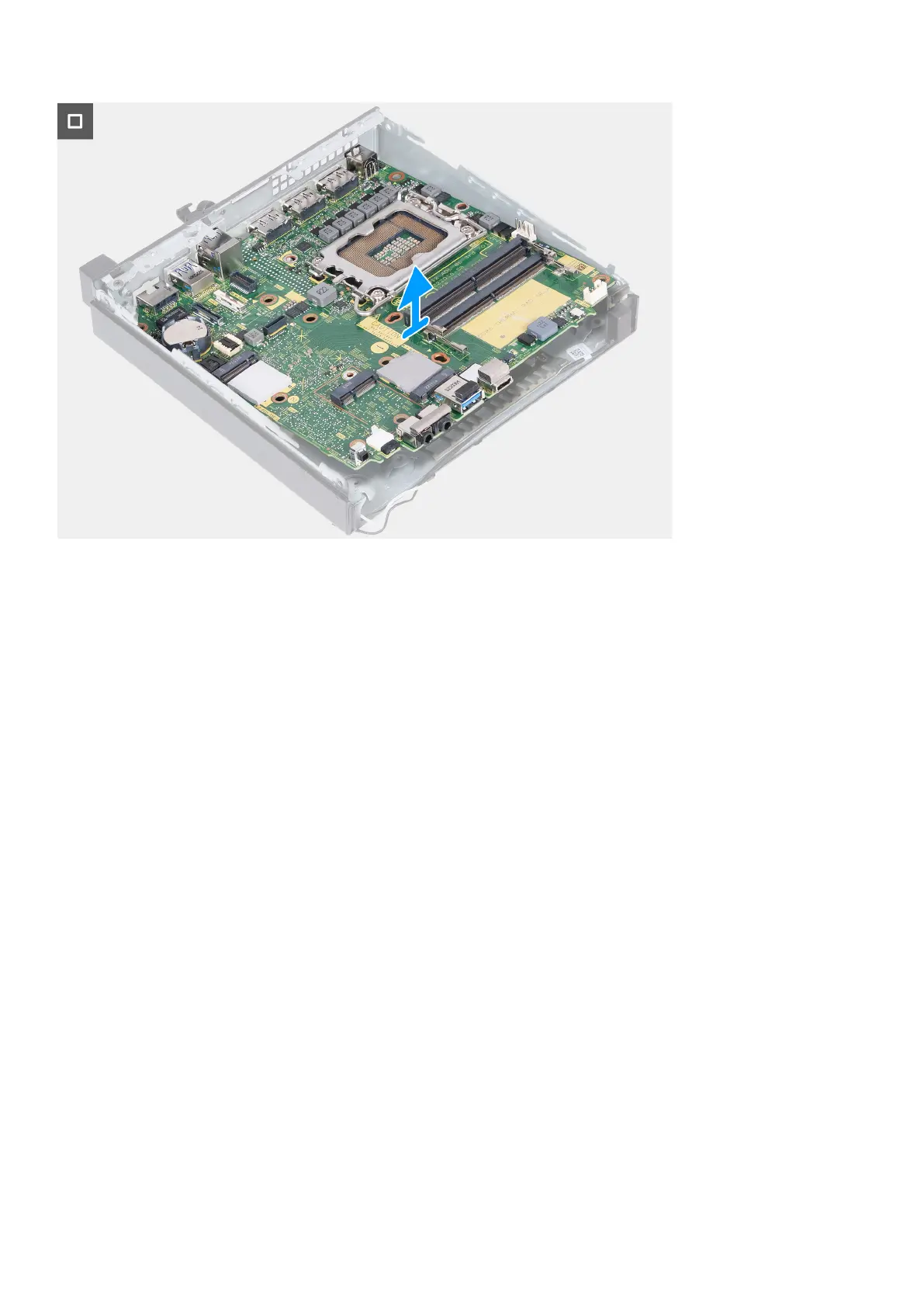

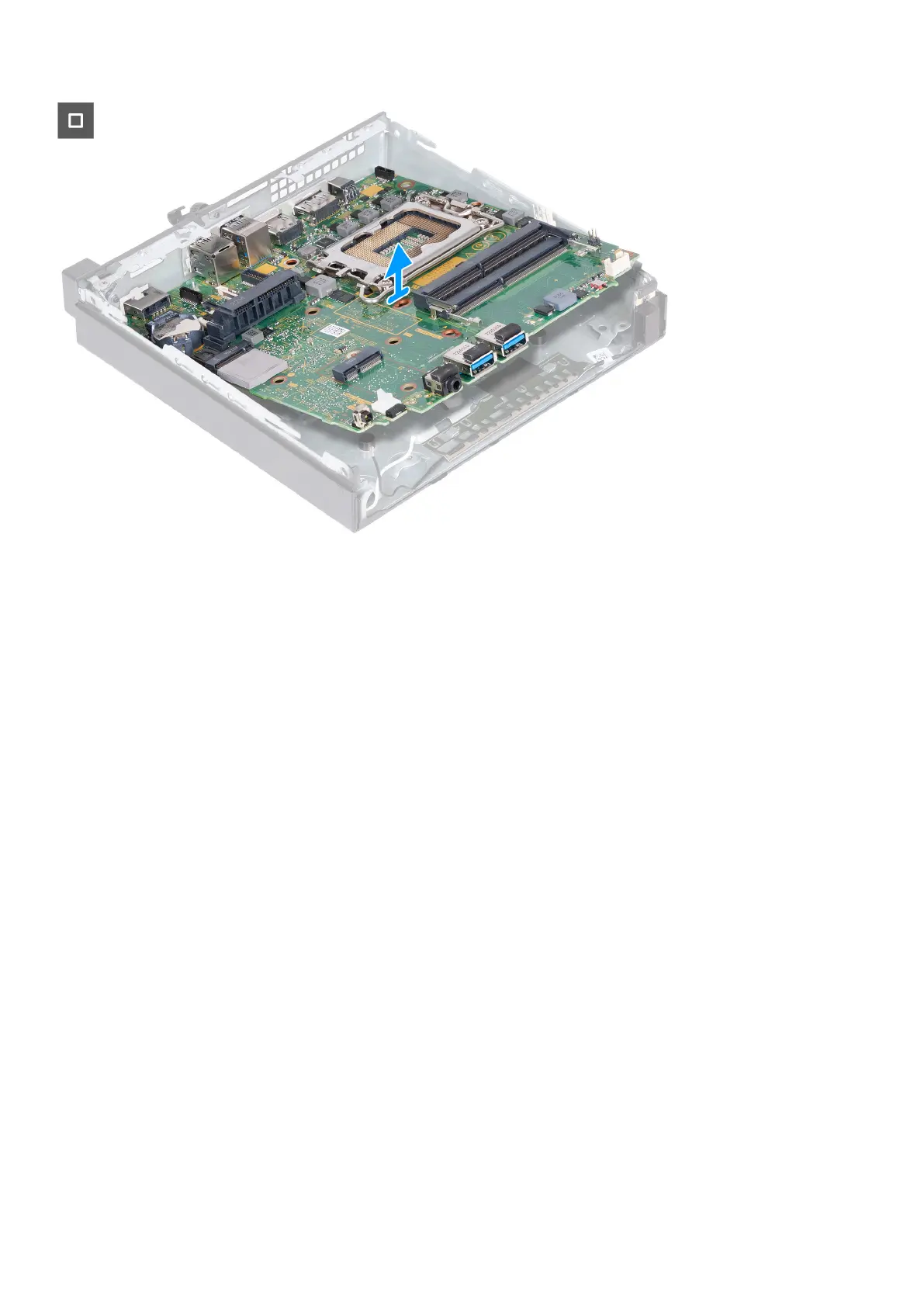

5. Lift the system board at an angle and remove it from the chassis.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the system board connectors.
Removing and installing Field Replaceable Units (FRUs)
67
