Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task

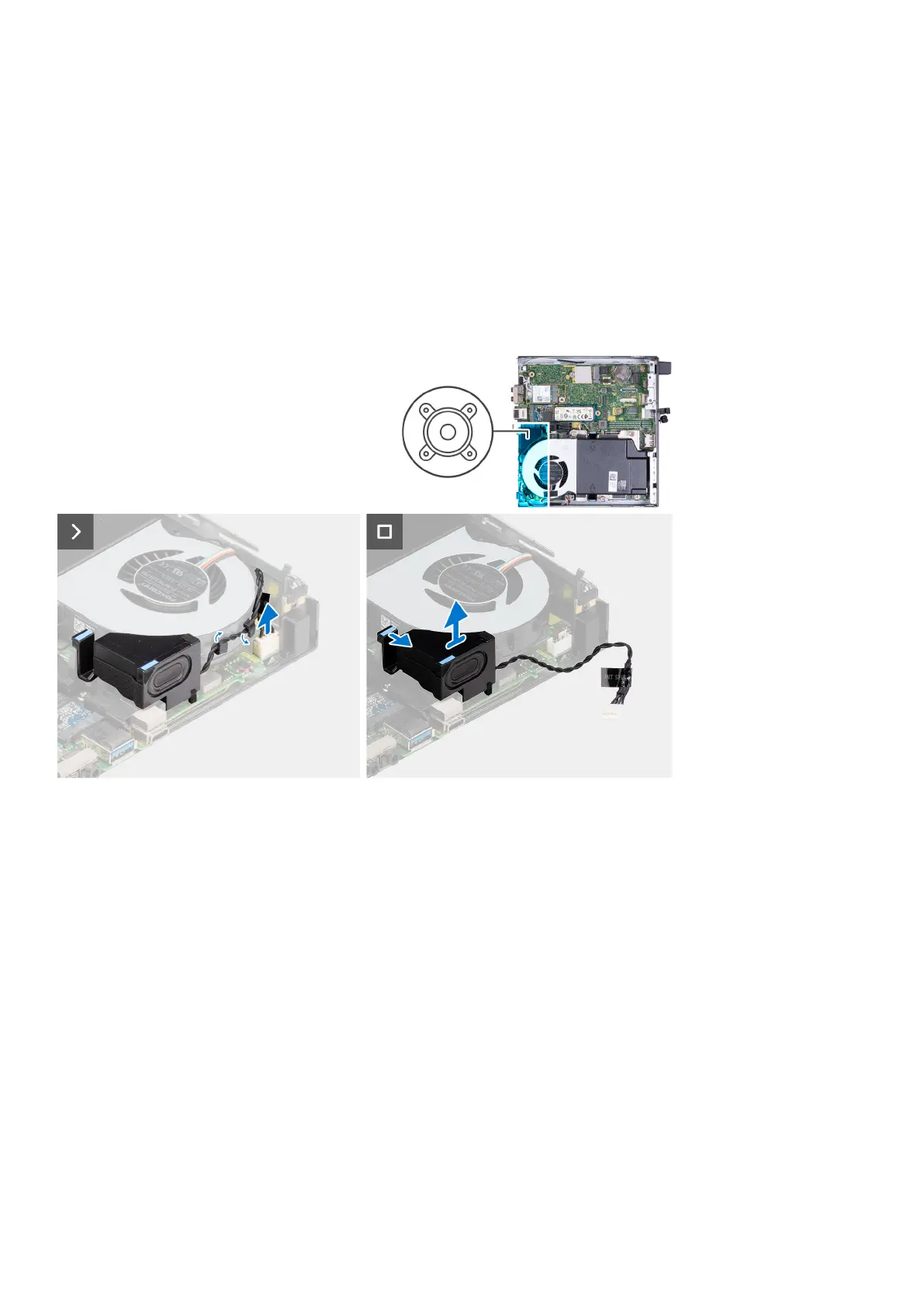

The following image(s) indicate the location of the speaker and provides a visual representation of the removal procedure.
Steps
1. Disconnect the speaker cable from the system board.
2. Press on the tab that secures the speaker to the system board.
3. Lift the speaker off the system board.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

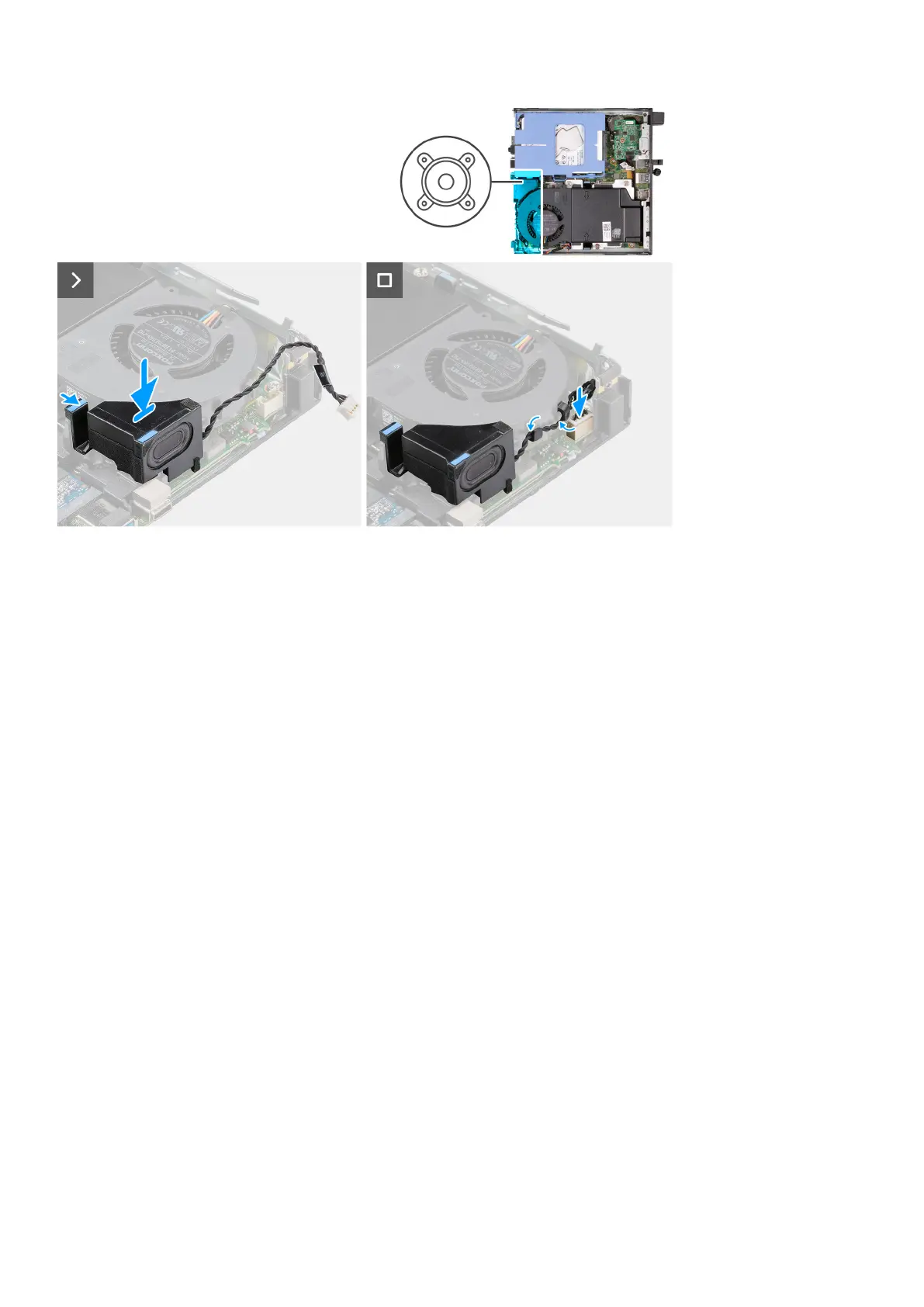

The following image(s) indicate the location of the speaker and provides a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
47
