Steps
1. Remove the SMA antenna assembly cables from the routing guides on the chassis.
2. Remove the screw (M3x3) that secures the SMA antenna assembly to the chassis.
3. Push the SMA antenna assembly inside from the opening on the back view and lift it away from the chassis.
Installing SMA antenna assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

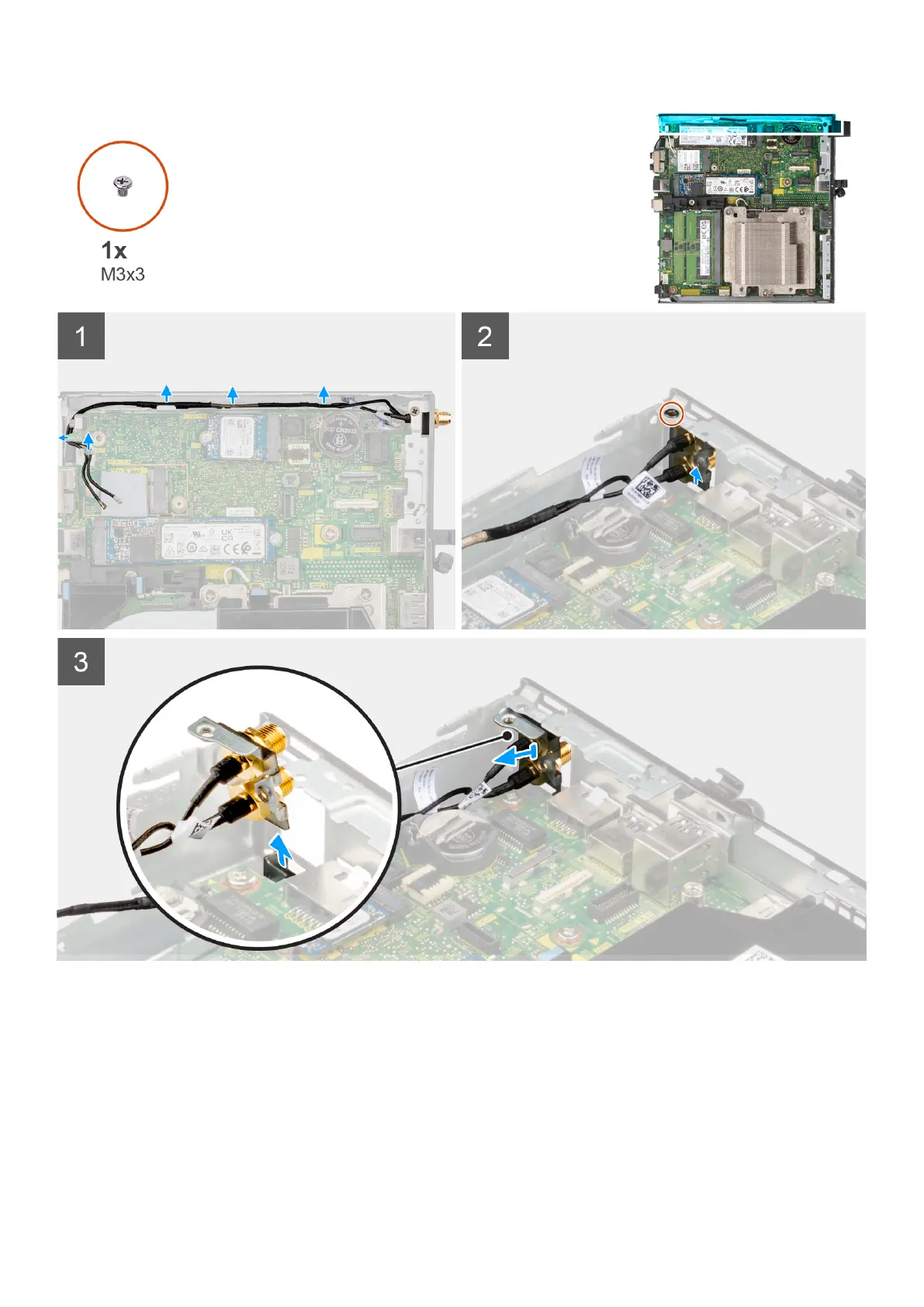

The following images indicate the location of SMA antenna assembly and provide a visual representation of the removal
procedure.
NOTE: To upgrade to SMA antenna, the internal antenna (white cable) needs to be removed.
