Pin Assignments for I/O Connectors: Dell XPS M1710 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/pinasign.htm[2/21/2014 11:23:56 AM]

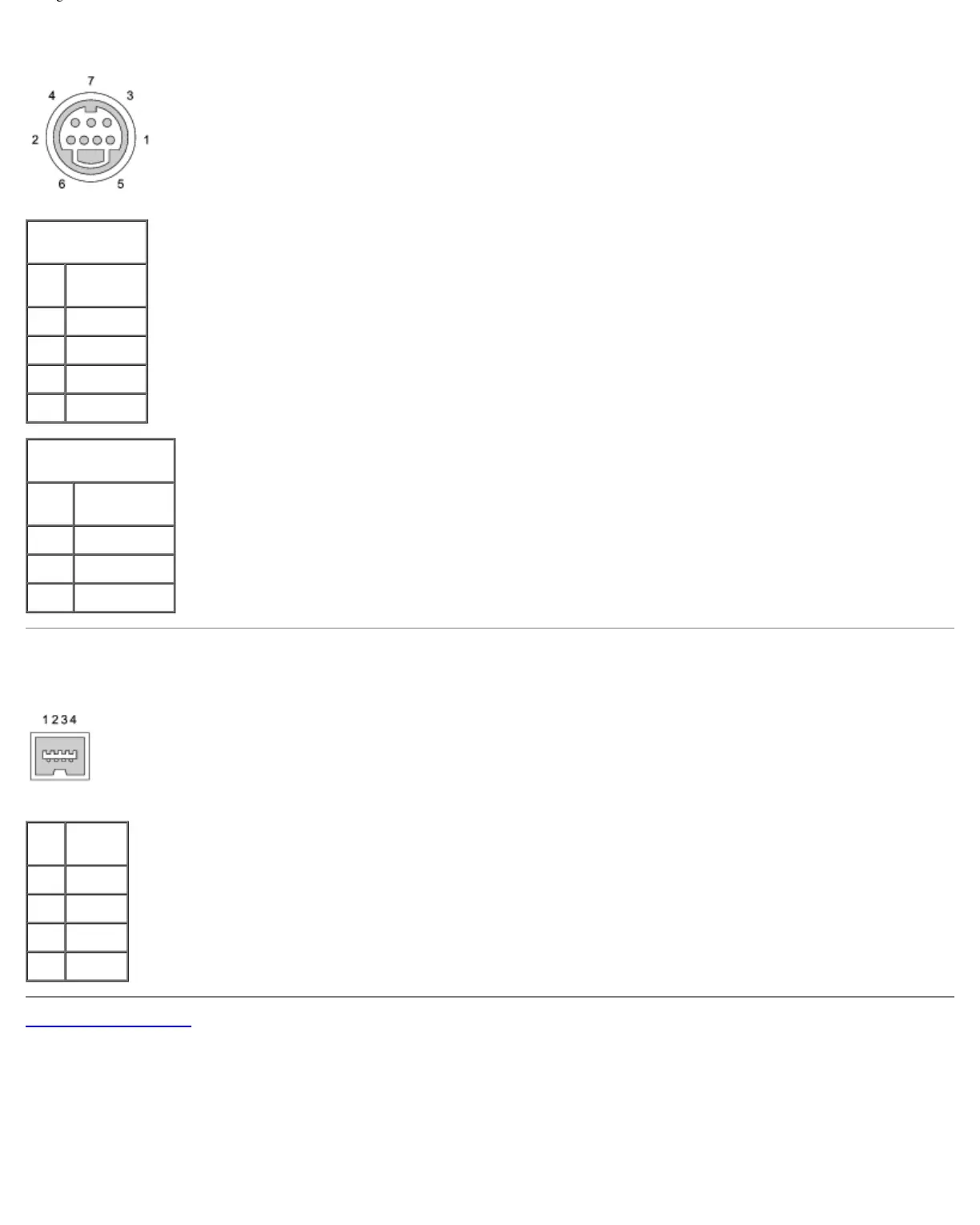

S-Video TV-Out Connector
S-Video
Pin Signal
1 GND
2 GND
3 DLUMA-L
4 DCRMA-L
Composite Video
Pin Signal
5 NC
6 DCMPS-L
7 GND
IEEE 1394 Connector
Pin Signal
1 TPB–
2 TPB+
3 TPA–
4 TPA+
Back to Contents Page
