Delta AH08EMC-5A User Manual

AH Motion Controller – Operation Manual
4-4
_4

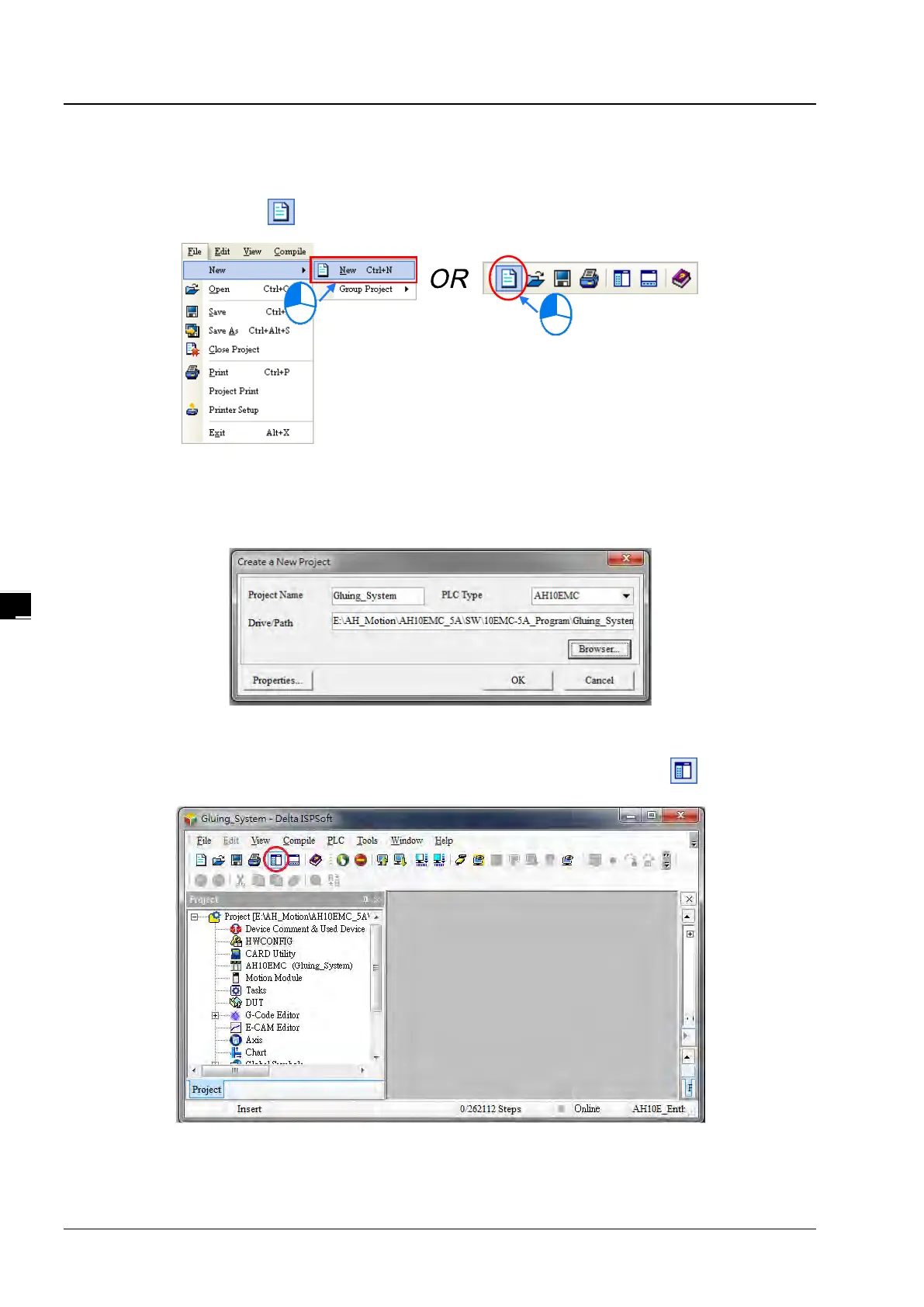

4.3 Creating a Project
After ISPSoft is started, you can click the File menu, point to New, and click New to create a new project. You can also
create a new project by clicking
on the toolbar after ISPSoft is started.
In the Create a New Project window, type a project name in the Project Name box and a path in the Drive/Path box,
select a PLC in the PLC Type drop-down list box, and click OK. (The PLC used in this example is AHxxEMC-5A.)
After the project is created successfully, a project management area will appear at the left side of the main screen. The
relation between the items listed in the project management area is represented by a hierarchical tree structure. If the
project management area does not appear, you can click Workspace on the View menu, or click
on the toolbar.

Delta AH08EMC-5A Specifications

General

Brand	Delta
Model	AH08EMC-5A
Category	Controller
Language	English
