Delta AS01DNET-A User Manual

AS Series Module Manual
11-42
11
11.4.10.2. Setting AS01DNET-A to Master Mode
1. Build a driver through the COMMGR software.
Refer to Section 2.4 Communication Setting in the ISPSoft User Manual for more details.
2. Call the DeviceNet Builder software through the ISPSoft software.
Refer to Section 11.6 in this manual for details on how to operate.

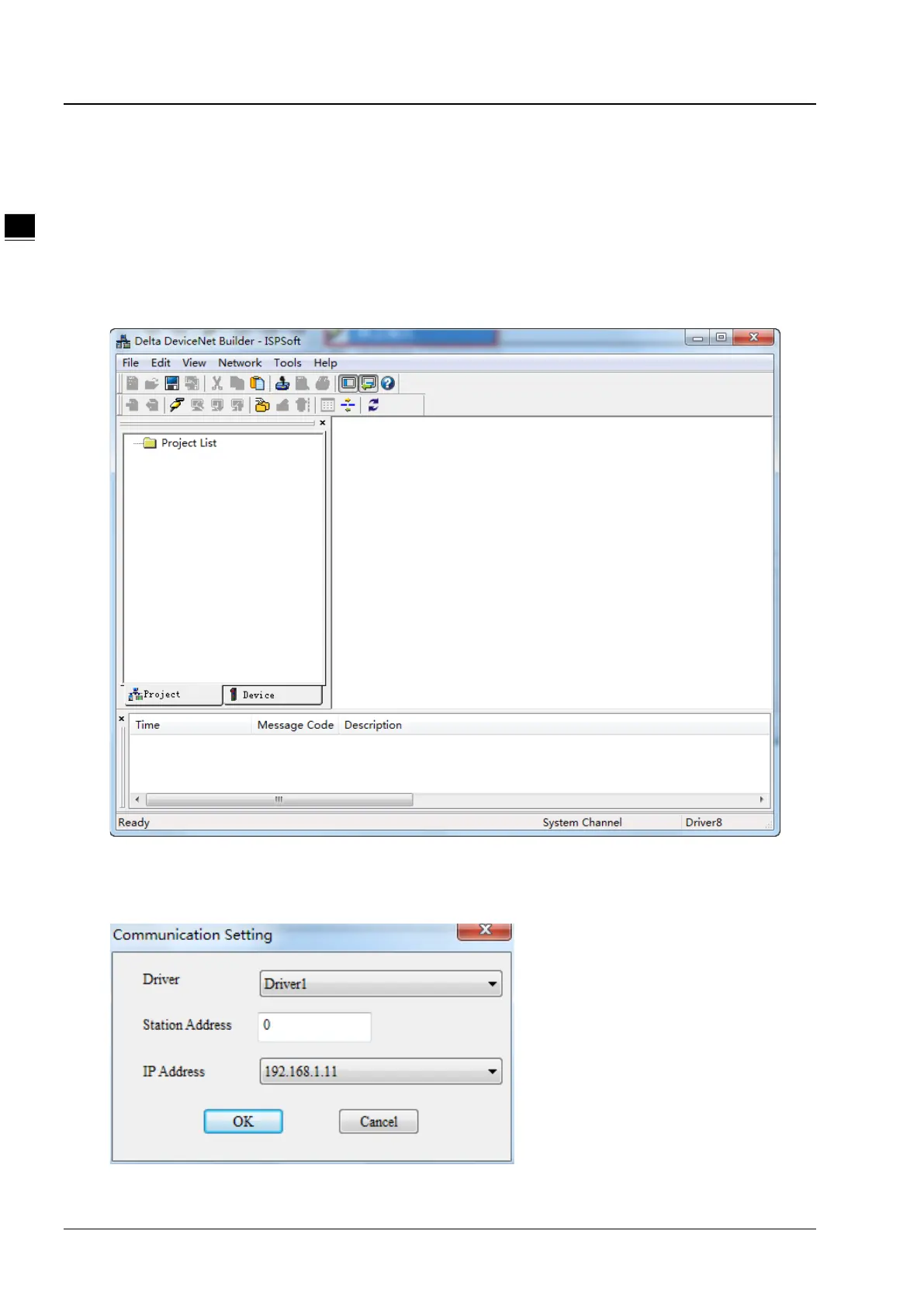

3. The called DeviceNet Builder software interface is shown as below.
4. Selecting Setup>> Communication Setting, the following dialog box appears. Select the driver for connection of
AS PLC and PC as below. Click OK to finish the selection of Driver.

Delta AS01DNET-A Specifications

General

Brand	Delta
Model	AS01DNET-A
Category	Network Hardware
Language	English
