Delta AS200 Series User Manual

Chapter 6 Writing a Program
6-7
6_
6.5 Creating a Program
The following sections show you how to create a traditional ladder diagram in ISPSoft. The sections include
creating a POU, editing a traditional diagram, and compiling a program.

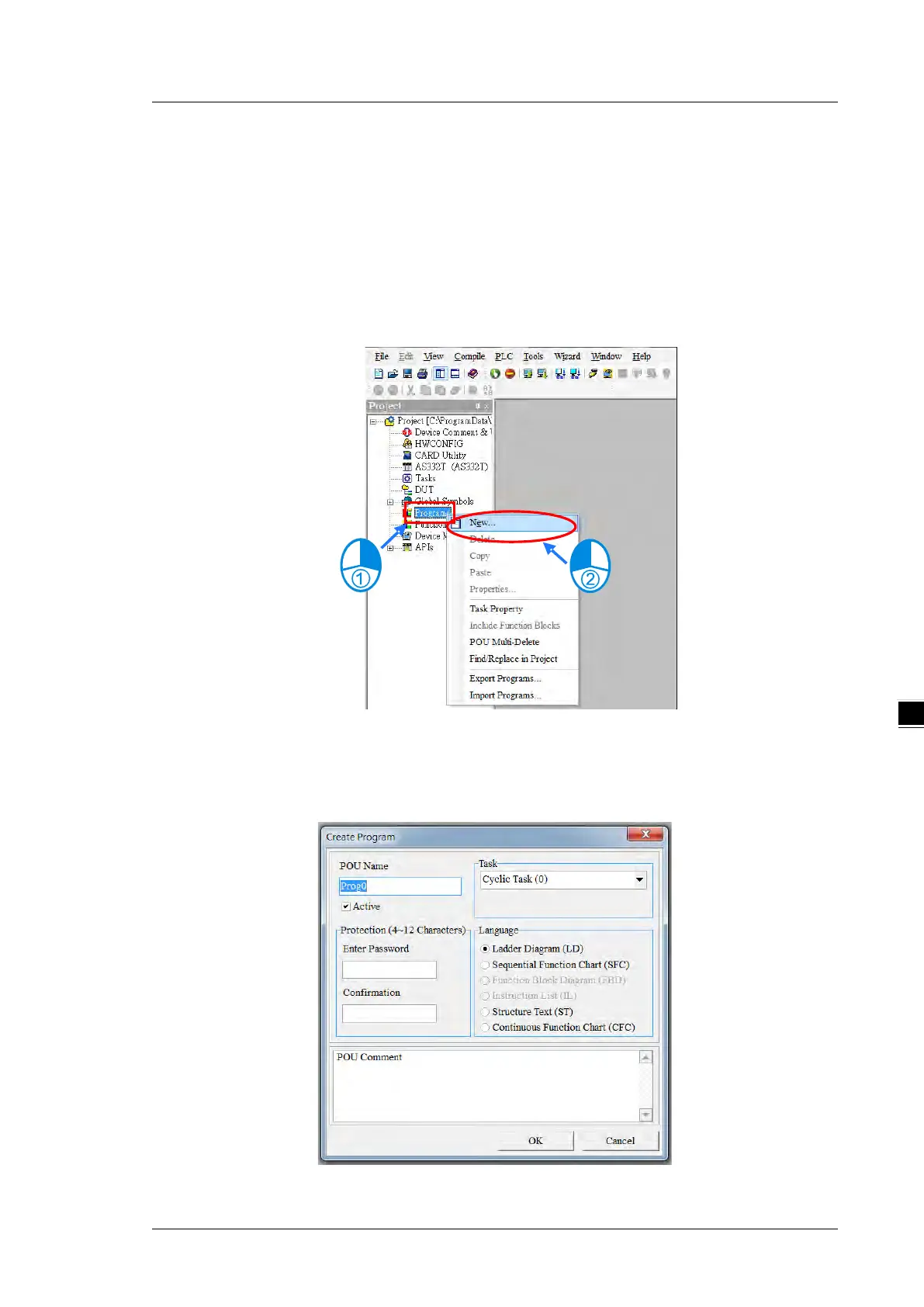

6.5.1 Adding a Ladder Diagram
(1)
Right-click Programs in the project management area, point to POU (program organization unit), and then
click New….
(2) In the Create Program dialog box, type a program name in the POU Name box, select Ladder Diagram
(LD) in the Language section, and keep the other default values. Click OK after the setting is complete. A
new program organization unit (POU) appears under Programs in the project management area.
