13

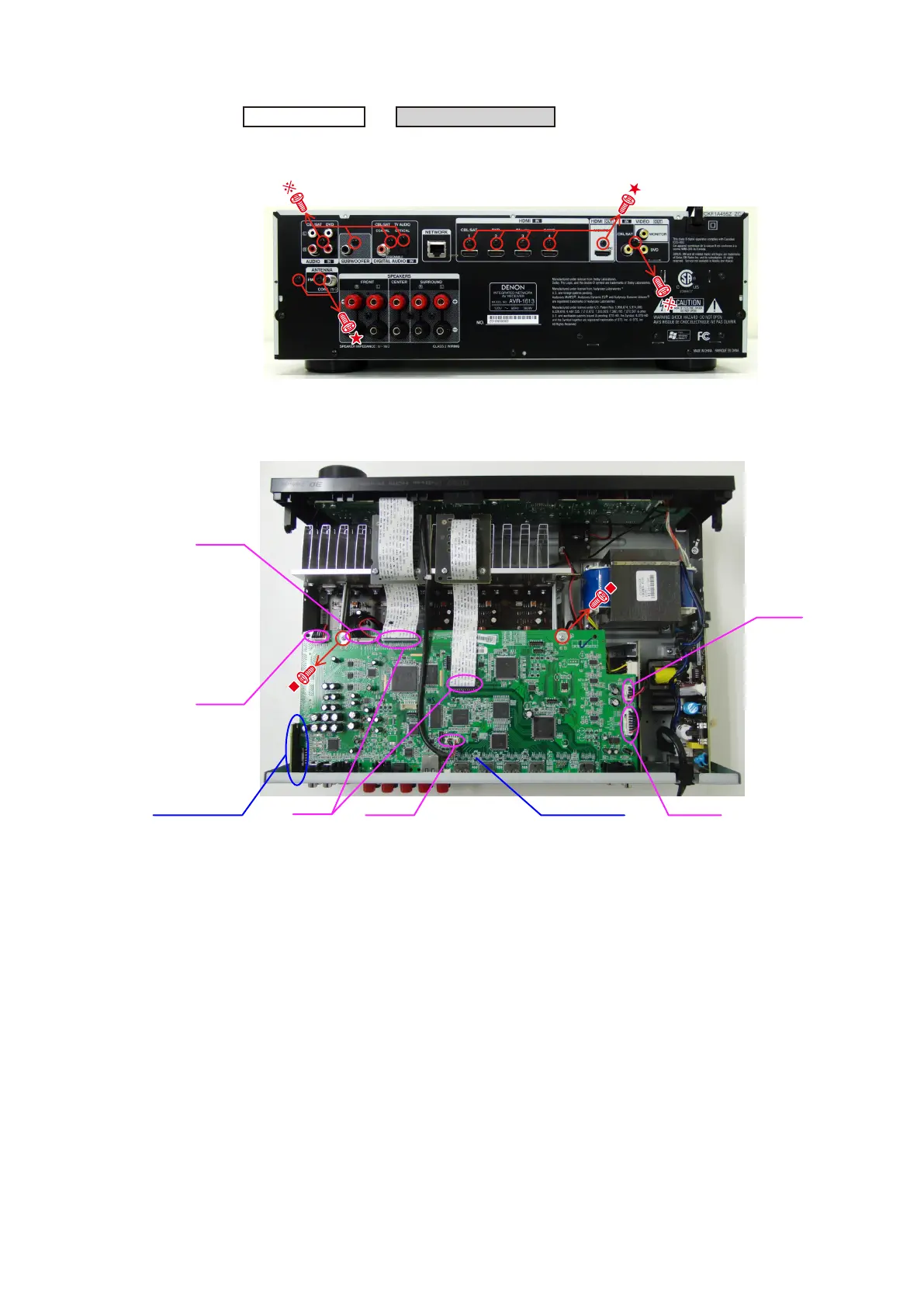

2. DIGITAL PCB ASSY
(1) Remove the screws.
(2) Remove the screws.
Disconnect the connector wires and FFC then disconnect the TUNER PCB.
CABINET TOP
DIGITAL PCB ASSY
→
Proceeding :
Shooting direction: A
CN751
CN893
TUNER PCB
FFC
CN851
CN892
CN771
DIGITAL PCB
