Denon AVR-1723 User Manual

92
ADJ2 RPICTIC ADJ1
KIA7805BPI
NJM7812FA
NJM7912FA
LUG31
BOTTOM SIDE
BOTTOM SIDEBOTTOM SIDE
3 .+5VV
1 .IN
2 .GND
3 .+12V
1 .IN
2 .GND
3 .-12V
1 .GND
2 .IN
REGULATOR PART_
POWER PCB_
CUP12427Z_A
CUP12427Z-2 BK302
BN301
T 1.25A L 250V
T 1.25A L 250V
5.AC_S2 4.NC 3.RLY_GND 2.NC 1.AC_S2
9.-5VV
8.VGND
7.+5VV
6.RLY_GND
5.-12V
4.RET_GND
3.+12V
2.RET_GND(DA)
1.DA+5V
C3001
C3008
C3013
C3020
C3021
C3012
C3007
C3006
C3016C3017
C3024
C3005
D3001
D3002
D3003
D3004
D3005
D3006
D3007
D3008
D3102D3105
D3106D3107
D3108
IC305
IC304
C3003 C3004
IC301IC302
F3001 F3002
BK301
D3104
D3103
CN302
J3001
D3101
J3002
BN301
J3003
J3005
J3006
J3021
J3030
J3004
J3024
J3033
J3028
J3011
J3023
J3025
J3035
J3027
J3022
J3031
J3016
J3008
J3010
J3009
J3026
J3034
J3029
J3014
J3015
J3012
J3013
J3032

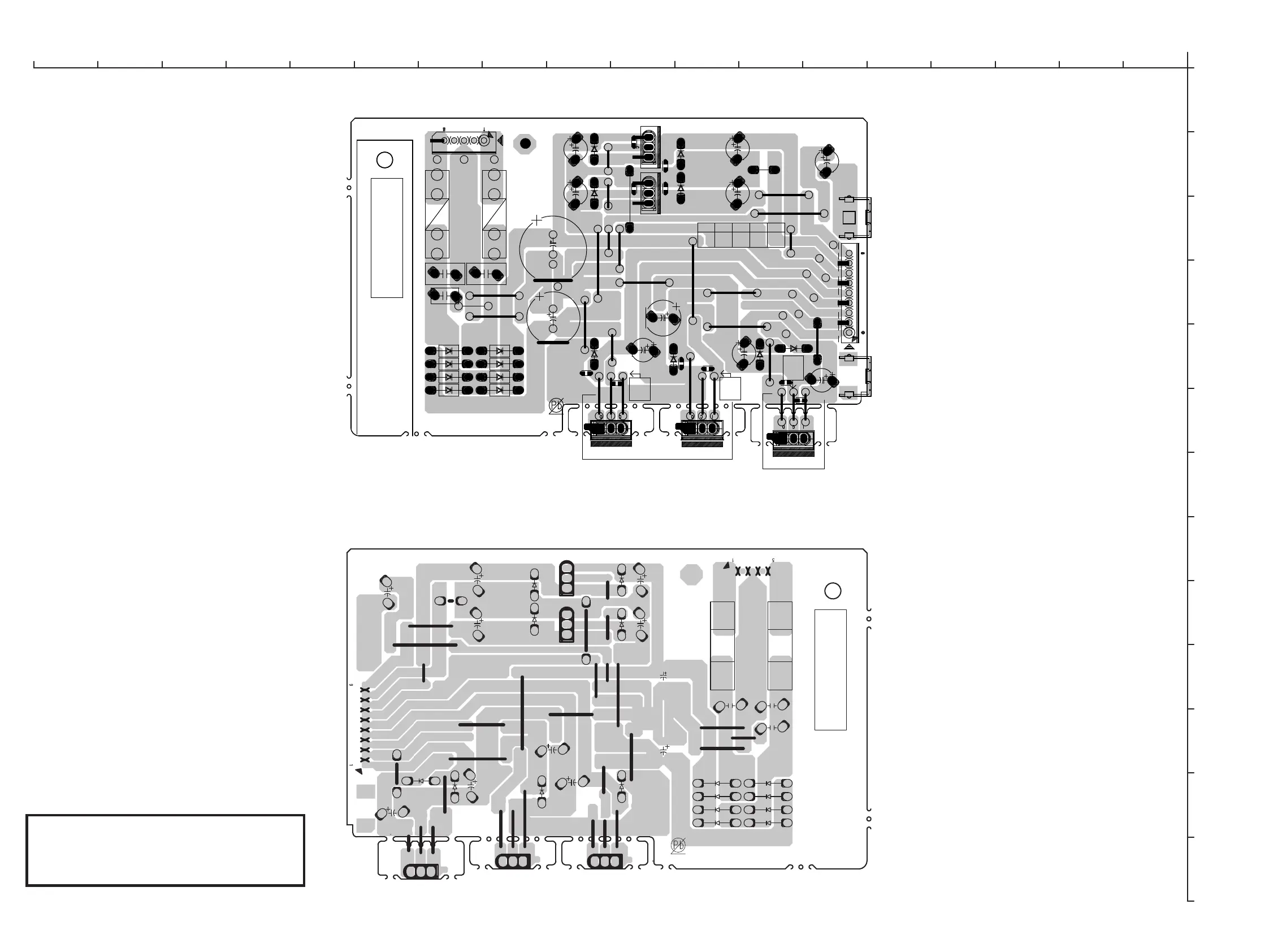

REGULATOR
(COMPONENT SIDE)
REGULATOR
(FOIL SIDE)
BAR CODE
C3023C3022
C3018
C3019
C3011
C3009
C3002
C3015
C3014
C3010
181716151413121110987654321
M
L
K
J
I
H
G
F
E
D
C
B
A
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
