Denon AVR-2113 Service Manual

120
181716151413121110987654321
M
L
K
J
I
H
G
F
E
D
C
B
A
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
VGND
VGND
+5V_IN
-5V_IN
-5V_IN
+8V_IN
-8V_IN
VAUX
CVBS
YDIPY
YDIPCB
YDIPCR
V_INB
V_INA
PSAVE
V_INC
V-5V
V-5V
VAGND
VAGND
VAUX
D/MGMD
D/MGMD
D/MGMD
YDIPY
YDIPCB
D/MGMD
D/MGMD
D/MGMD
D/MGMD
H/P_R
F_RLY
H/P_L
+5V_IN
+8V_IN
-8V_IN
VIDEO_GND
TRG_AC
VIDEO_AC
V+5V
V+5V
AUDIO_AC AUDIO_GND
CVBS
YDIPCR
SB_RLY
BURRING
TRG_15V
RET_GND
RET_GND
RET_GND
VAGND
V+5V
V+5V
V-5V
V-5V
C/S_RLY
H/P_RLY
SB_RLY
H/P_R
H/P_GND
H/P_L
BURRING
CP5003
D/MGMD
ETHERCVBS
D/MGMD
D/MGMD
D/MGMD
F5003
F5004
D/MGMD
13P
ETHERCVBS
NC
NC
V_INA
COMPONENT SW1
COMPONENT SW2
PSAVE
V_INC
H/P_RLY
H/P_GND
15P
TRG_15V
VAGND
F_RLY
F5000
F5001
AUDIO_AC
VIDEO_AC
13P
D/MGMD
D/MGMD
D/MGMD
F5002
13P
D/MGMD
9P
V_INB
7P
C/S_RLY
13P
T1.25AL/250V
TRANS 8P TAP
T1.6AL/250V
COMPONENT SW2
COMPONENT SW1
FRONT CNT B'D
7028-07186-201-0
Pb
C5047
J5001
J5000
J5003
F5003A
C5046
CN4001
BKT5001
C5048
C5049
F5000A
F5001A
F5002A
R5066
F5004A
R5068
J5036
F5000B
F5001B
CP3404
BKT5000
CN4002
R5067
CP5000
CP3401
CP3402
CP5001
C5051
C5052
J5005
C5050
R5064
R5065
F5002B
F5004B
IN OP FIADJICT
F5003B
BAR CODE
FRONT CNT

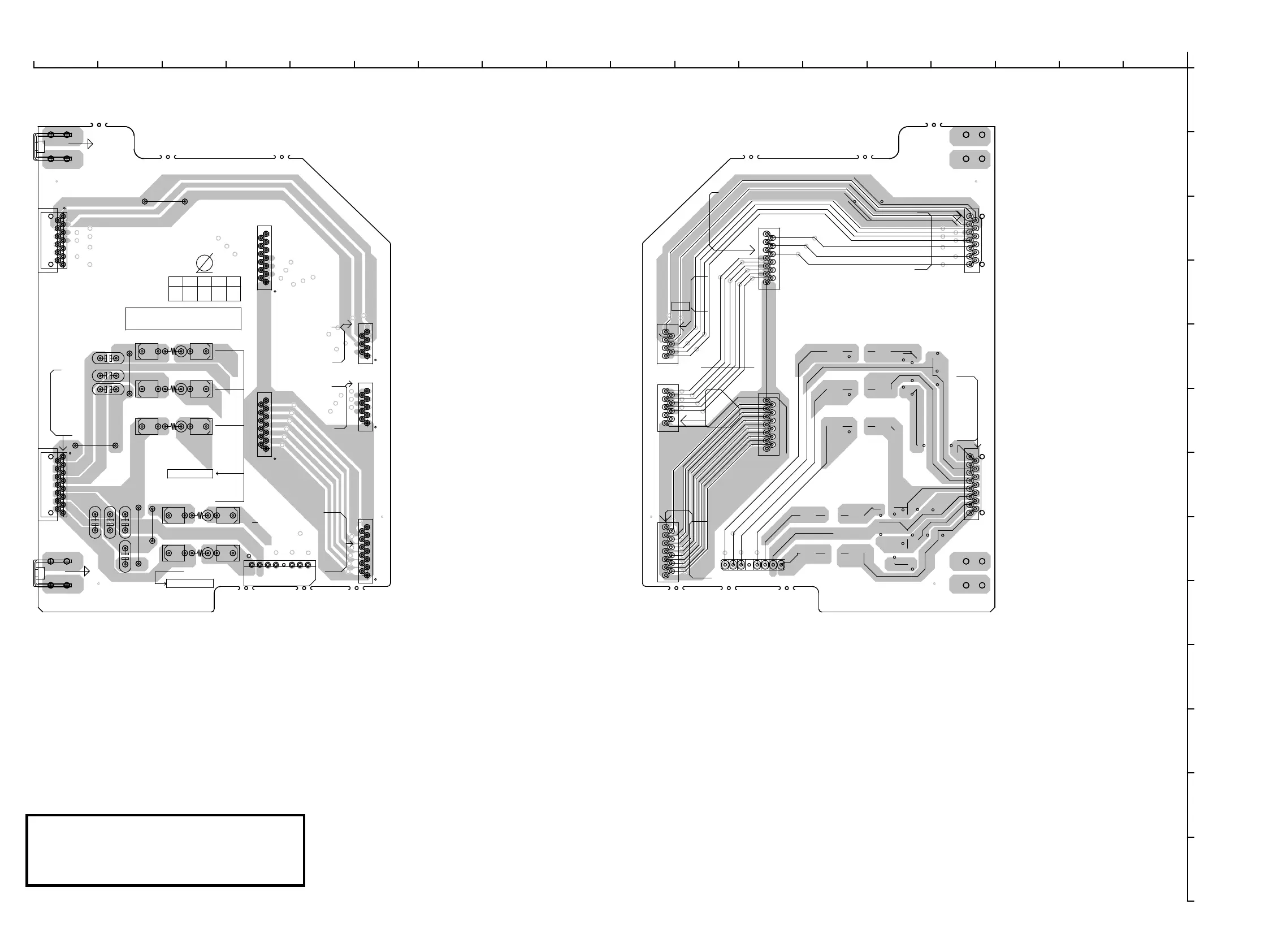

(COMPONENT SIDE)
NC
NC
H/P_RLY
H/P_L
H/P_GND
H/P_R
F_RLY
C/S_RLY
VIDEO_GND
TRG_AC
VIDEO_AC
AUDIO_AC
AUDIO_GND
SB_RLY
TRG_15V
TRG_15V
+5V_IN
VGND
-5V_IN
-5V_IN
+8V_IN
VGND
RET_GND
RET_GND
-8V_IN
-8V_IN
RET_GND
VAGND
V+5V
V+5V
V-5V
V-5V
H/P_L
H/P_R
VAUX
D/MGMD
D/MGMD
CVBS
ETHERCVBS
YDIPCR
YDIPCB
YDIPY
D/MGMD
D/MGMD
D/MGMD
D/MGMD
CVBS
D/MGMD
ETHERCVBS
D/MGMD
D/MGMD
YDIPCR
D/MGMD
YDIPCB
D/MGMD
V_INA
PSAVE
V_INA
D/MGMD
PSAVE
V_INC
VAGND
V+5V
V+5V
V-5V
V-5V
+5V_IN
+8V_IN
F_RLY
VAGND
AUDIO_AC
VIDEO_AC
D/MGMD
D/MGMD
D/MGMD
YDIPY
VAUX
V_INC
V_INB
D/MGMD
V_INB
VAGND
C/S_RLY
SB_RLY
H/P_RLY
H/P_GND
COMPONENT SW2
COMPONENT SW1
COMPONENT SW2
COMPONENT SW1
JP212
FRONT CNT
(FOIL SIDE)

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
