Denon AVR-2113 Service Manual

52
WHEN THE MICROPROCESSOR IS REPLACED WITH A NEW ONE
When the U-PRO (Microprocessor) or the Flash ROM is replaced, conrm the following.
PCB Name Ref. No. Description
After
replaced
Remark
HDMI U3002 R5F56108VNFP B SOFTWARE: Main
HDMI U2003 EN29LV160BB-70TIP B SOFTWARE: DSP ROM
HDMI U2205 EPM3032A-TC44 B SOFTWARE: AUDIO PLD
HDMI U1602 MX25L6406EM2I-12G C SOFTWARE: GUI ROM
After replacing
A : Mask ROM (With software). No need for write-in of software to the microprocessor.
B : Flash ROM (With software). Usually, no need for write-in of software. But, when the software was updated, you should
write the new software on the microprocessor or ash ROM. Please check the software version.
C : Empty Flash ROM (Without software). You should write the software on the microprocessor or ash ROM.
Refer to "Update procedure" or "writing procedure", when you write the software.
PROCEDURE FOR UPGRADING THE VERSION OF THE FIRMWARE
NOTE: When the following are replaced, always rewrite with updated rmware using DFW. (Refer to parts list of "HDMI
PCB UNIT ASS'Y" (206 page)
• PCB HDMI ASSY
• U1602 (MX25L6406EM2I-12G)
• U2205 (EPM3032A-TC44)
• U3002 (R5F56108VNFP)
• U2003 (EN29LV160BB-70TIP)
1. How to update by DFW
[AVR-1913E3/AVR-2113E2, E1C models]
1.1. Preparations before starting the operation
(1) Personal Computer (Installed "DFW_0058_AVR2113_1913_(Rev.X.X.X).exe".
(2) RS-232C cable (9P (Male), Straight).
(3) 8U-210100S WRITING KIT.

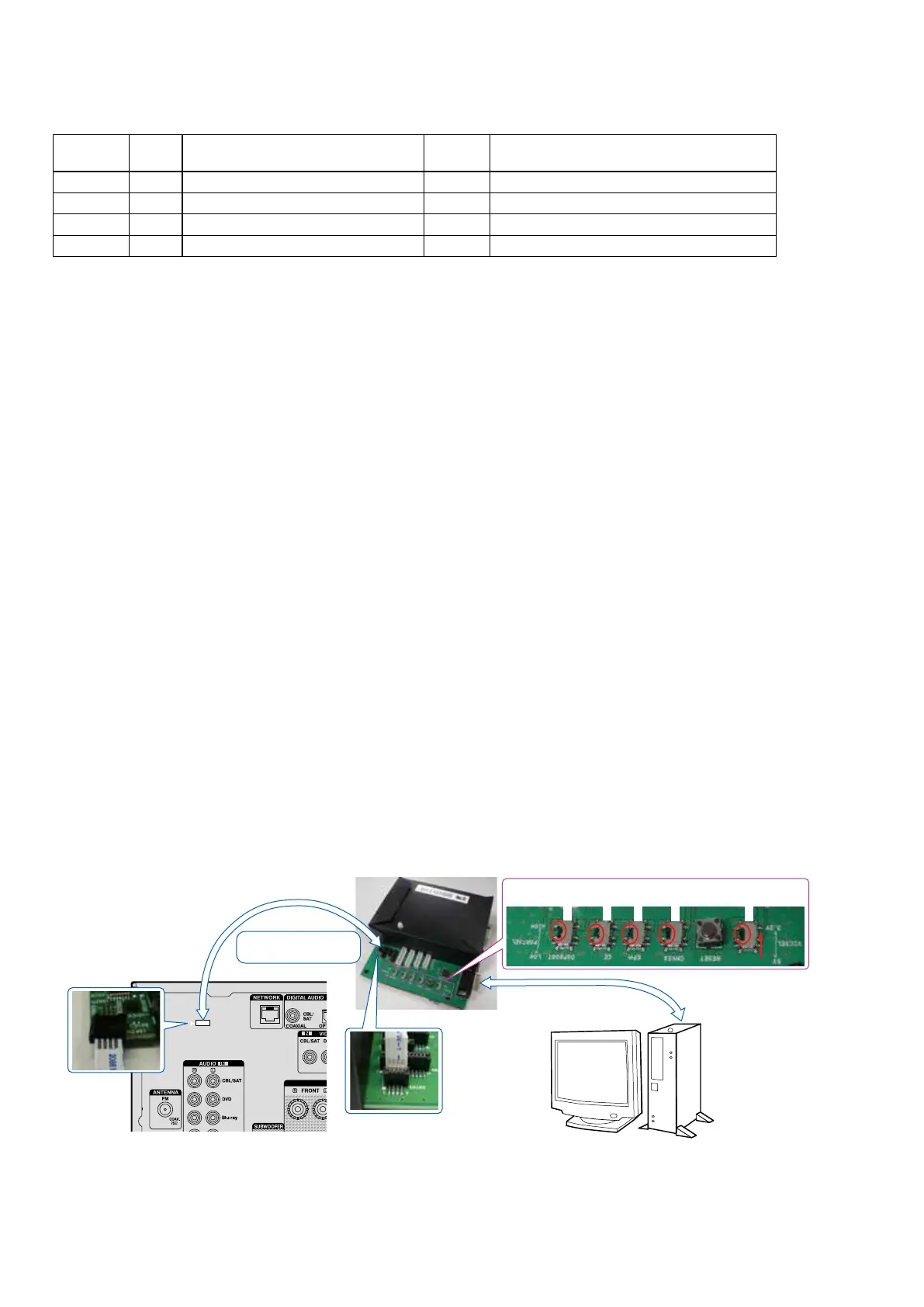

1.2. Connection of AV receiver
(1) Conrm the power on/off switch of the AV receiver is turning off.
(2) Connect the update terminal of AV receiver with the "WRITING KIT".
(3) Connect the RS-232C cable from PC with the "WRITING KIT".
PC
WRITING KIT
RS-232C Cable
4P FFC Cable
This side is contacts of
flexible card cable.
S709
S708
S707 S706 S702
S706-709 : No Preference
S702 : 3.3V

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
