Denon AVR-2113 Service Manual

63
3. How to update by USB Memory
You can update the rmware by downloading the latest version with USB Memory.
3.1. Connecting to the Network
(1) Requirements
• USB Memory capacity : FAT16 : 2 GB, FAT32 : 2 TB
• USB memory devices will not work via a USB hub.
• It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
• Do not use an extension cable when connecting a USB memory device.
This may cause radio interference.

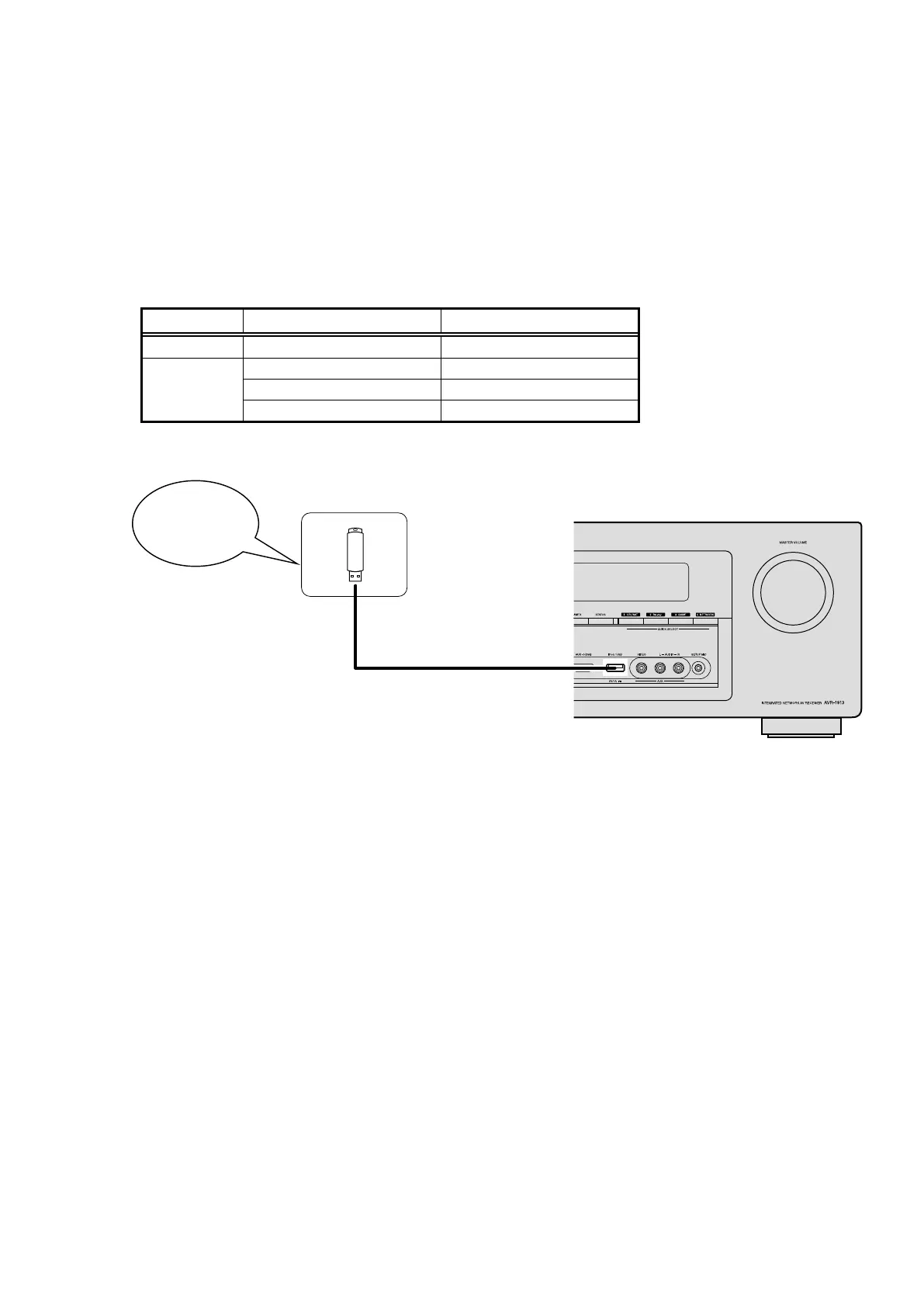

Place the USB update File in an appropriate folder. The folder name should be the Product ID based on the Model
name/area.
Model Name Model Area Product ID
AVR1913 North America (E3) 000100580700
AVR2113
North America (E3) 000100580100
Europe (E2) 000100580200
China (E1C) 000100580500
(2) Setting
3.2. Downloadthermware
(1) While pressing the "STATUS" button and the "SOURCE SELECT
0
" button at the same time, power on this unit.
(AVR1913)
g
While pressing the "STATUS" button and the "TUNER PRESET CH –" button at the same time,power on this unit.
(AVR2113)
g
(2) "USB Update Start" appears in the FL Display.
(3) Press the "ENTER" button on remote control. "UpdateFileCheck" appears in the FL Display and the Update of the
Firmware starts.
(4) During the update, the power indicator lights in red and the GUI screen display disappears.
The remaining update time appears in the display on the main unit.
When the update is completed, "Updateing Complete" appears in the FL Display and then this unit returns to the
normal state.
(5) Execute a initialization (10 page).
--- Cautions on Firmware Update ---
• Do not remove a USB memory until updating is completed.
• Do not turn off the power until updating is completed.
Approximately 1 hour is required for the updating procedure to be completed.
Once updating starts, normal operations on the this unit cannot be performed until updating is completed. Also, setting
items of the GUI menu of this unit or setting items of the image adjustment may be initialized.
Note down the settings before updating, and set them again after updating.
Download
firmware onto USB
memory.
I
nsert the USB memory into a USB port.
z
Do not place anything other than
the Firmware in the USB memory.
