Denon AVR-2113 Service Manual

FRONT 2/2
OPEN
C4469
C4471 220/6.3
D4411 CDS3C05 D4413
CDS3C15GTA
C4473
OPEN
R4488
0
4 23 1
USB-JACK
CP4406
C4472
1000P-J
D4412
CDS3C05
2K2R4486
100N-K
C4470
C4474 OPEN
0
R4487
1235 4
CN4402
G4402
21
34
OPEN
L4401
BD4411
BLM21PG221
BD4409
0
BD4410
0
USB HOST
+DATA
VBUS
GND
GND
-DATA
GND
TO HDMI
+DATA
VBUS
-DATA
STBY POWERGND POWER + POWER - STBY POWERGND POWER + POWER -
87654321
A
B
C
D
E
F

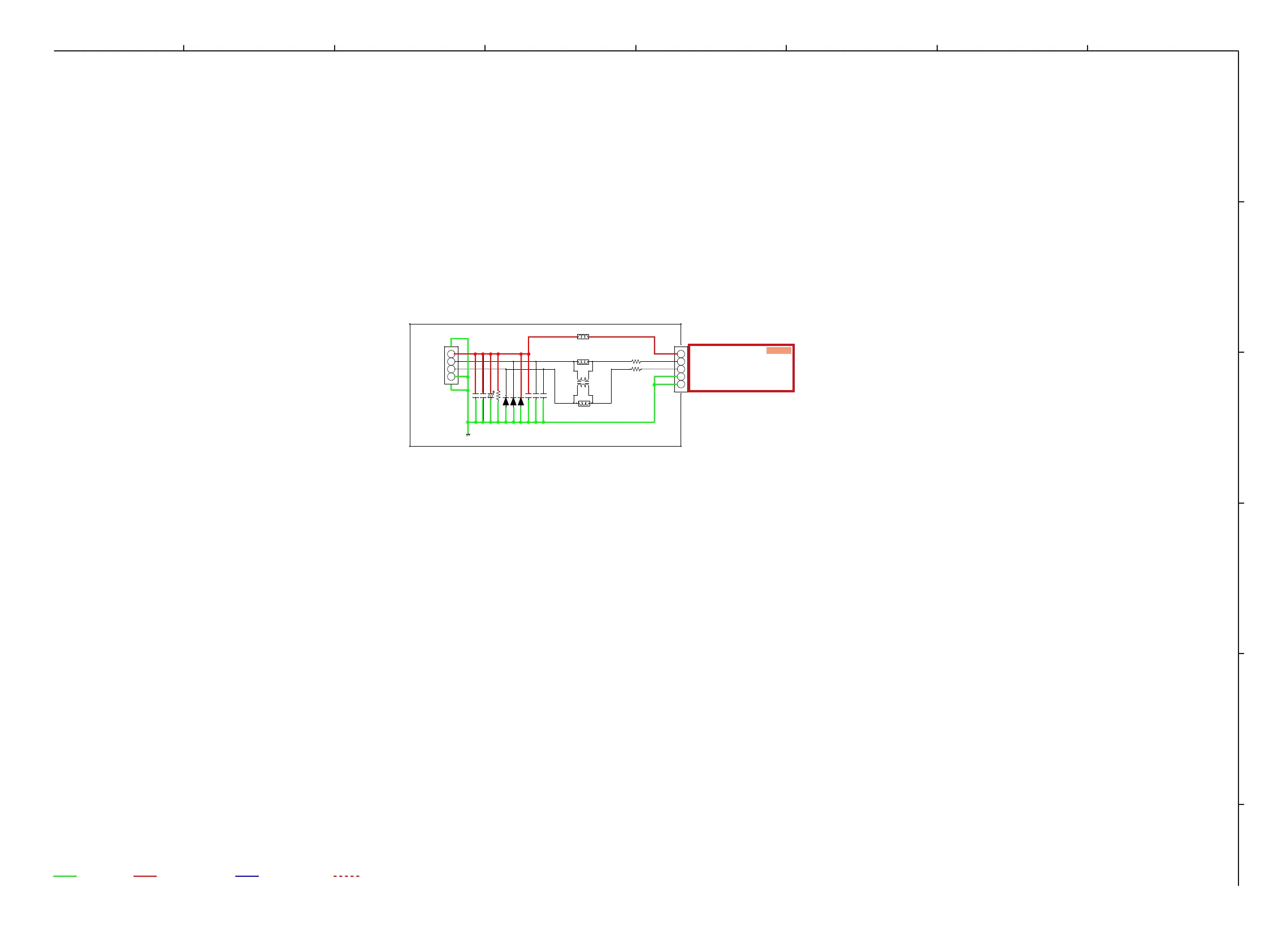

SCHEMATIC DIAGRAMS (23/26)
FRONT UNIT (2/2)
147
CN4402
TO N2801

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
