Denon AVR-2113 Service Manual

8
TECHNICAL SPECIFICATIONS
n
Audio Section
• Power amplier
Rated output (for 1913 model) :
Front :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Rated output (for 2113 model) :
Front :
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
95 W + 95 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 100 dB (IHF–A weighted, DIRECT mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
n
Tuner section
(Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range (for E3 model) :
87.5 MHz – 107.9 MHz
50 dB Quieting Sensitivity :
MONO 2.8 μV (20.2 dBf)
S/N (IHF-A) :
MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion (at 1 kHz) :
MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n
General
Power supply (for E3 model) : AC 120 V, 60 Hz
Power supply (for E2 model) : AC 230 V, 50/60 Hz
Power supply (for E1C model) : AC 220 V, 50 Hz
Power consumption (for 1913 model) :
460 W
0.1 W (Standby)
0.5 W (CEC standby)
Power consumption (for 2113 model) :
500 W
0.1 W (Standby)
0.5 W (CEC standby)
Maximum external dimensions (for 1913E3 model) :
434 (W) x 162 (H) x 329 (D) mm
Weight : 9.4 kg
Maximum external dimensions
(for 2113CIE3, 2113E2,E1C, model) :
434 (W) x 167 (H) x 329 (D) mm
Weight : 9.5 kg
n
Remote Control Unit (RC-1167)
Batteries : R03/AAA Type (two batteries)
Maximum external dimensions :
49.5 (W) x 224 (H) x 23.5 (D) mm
Weight : 125 g (including batteries)
18.5
288.0
22.5
329.0
54.0
164.5
147.5
14.5
162.0
434.0
344.0

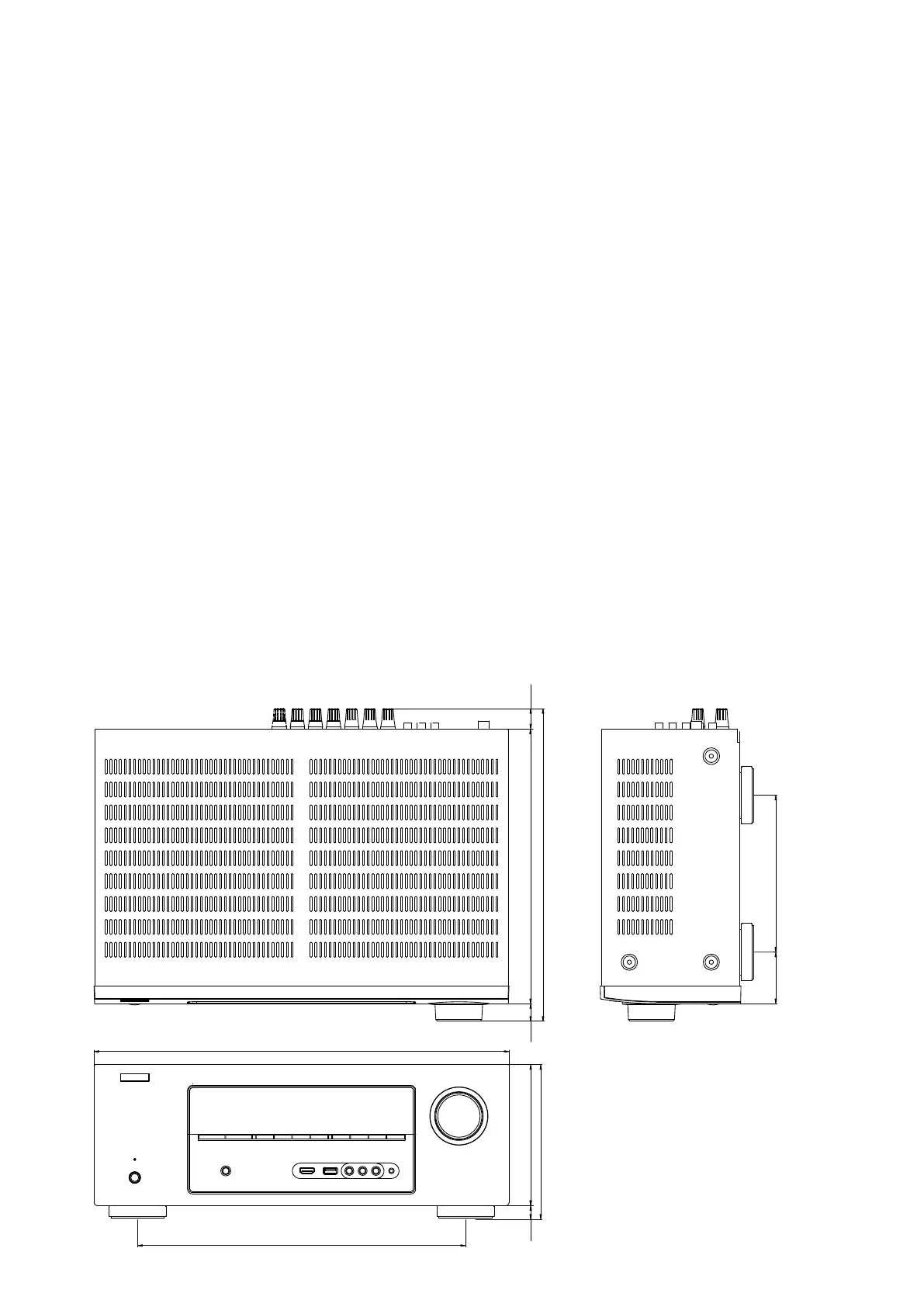

DIMENSION
[AVR-1913E3 model]

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
