Denon AVR-2310 User Manual

8
ENGLISH
Getting Started Playback Remote Control Information Troubleshooting Specifi cationsMulti-ZoneSettings
Connections for all compatible audio and video signal formats
are described in this owner’s manual. Please select the types of
connections suited for the equipment you are connecting.
After connections are completed, certain settings must be made on
the receiver. Make the settings indicated“
Set as necessary
”
for the individual items.
Select the cables according to the equipment being connected.
Important Information

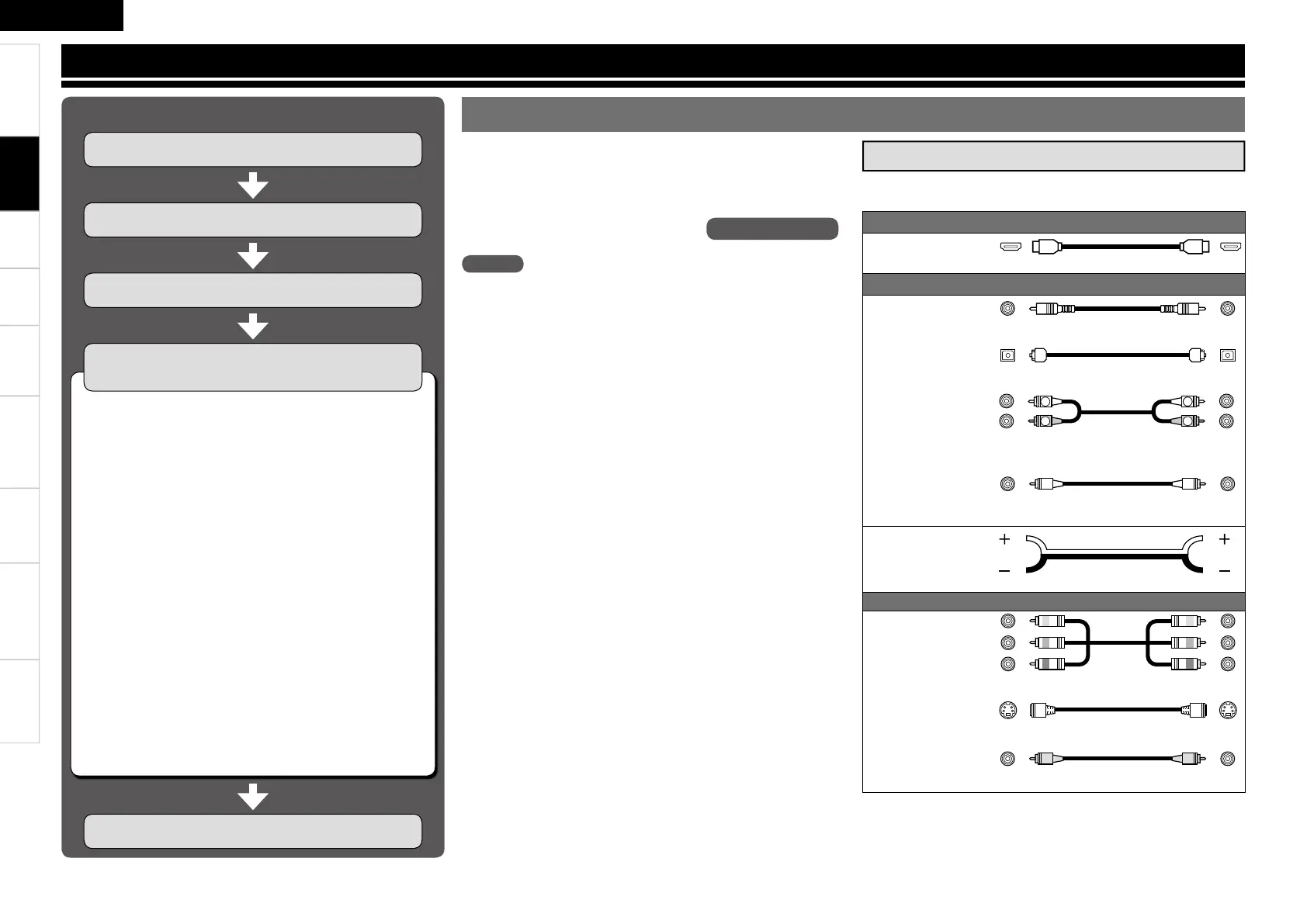

Cables Used for Connections
Audio and video cables
HDMI
connections
HDMI cable
Audio cables
Coaxial digital
connections
Coaxial digital cable
Optical digital
connections
Optical cable
Analog
connections
R
L
R
L
Stereo pin-plug cable
Analog
connections
(monaural, for
subwoofer)
Pin-plug cable
Speaker
connections
Speaker cables
Video cables
Component
video
connections
Component video cable
S-Video
connections
S-Video cable
Video
connections
75 Ω/ohms pin-plug video cable
(White)
(Red)
n HDMI (vpage 12)
n Monitor (TV) (vpage 13)
n Playback Components
 • Blu-ray Disc player / DVD player (vpage 14)
 • iPod
®
(vpage 14)
 • CD Player (vpage 14)
 • Record Player (vpage 15)
n Recording Components
 • Digital Video Recorder (vpage 15)
 • Video Cassette Recorder (vpage 15)
n SAT/CABLE Tuner (vpage 16)
n Other Devices
 • Video Camera / Game Console (vpage 16)
 • Component with Multi-channel Output connectors
(vpage 16)
 • Antenna terminals (vpage 17)
 • External Power Amplifi er (vpage 17)
 • External Controller (vpage 18)
n Power Cord
Connection Flown
Turning the Power On (vpage 19)
Installing/Setting the Speakers (vpage 10)
Connecting Devices (vpage 12)
(Yellow)
(Green)
(Blue)
(Red)
Connections
NOTE
• Do not plug in the power cord until all connections have been
completed.
• When making connections, also refer to the operating instructions
of the other components.
• Be sure to connect the left and right channels properly (left with left,
right with right).
• Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
Connecting the Speakers (vpage 11)
Connecting Devices not Equipped with HDMI
terminals (vpage 13)
Connections

Denon AVR-2310 Specifications

General

Equalizer	Yes
Product color	Black
Impedance	8 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
Dimensions (WxDxH)	431 x 377 x 171 mm
HDMI ports quantity	5
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1

Weight and Dimensions

Weight	11200 g
