8
ENGLISH
Getting Started Connections Playback Remote Control Information Troubleshooting SpecificationsMulti-ZoneSettings
Connecting Devices not Equipped with HDMI terminals
Connections
NOTE
• Insert the AC plugs securely. Incomplete connections could cause
noise.
• Only use the AC outlet to plug in audio equipment. Do not use
them as power supplies for hairdryers or anything other than audio
equipment.
Wait until all connections have been completed before connecting the
power cord.
To household
power outlet
(AC 230 V, 50 Hz)
Power cord
(supplied)
Connection to the AC outlet
• This outlet supply power to external audio
equipment.
• Audio equipment with a total power
consumption of 100 W (0.43 A) can be
connected.
• The power supply turns on and off together
with the on the main unit. When set
to “ON”, power is supplied from the outlet.
When set to “STANDBY”, no power is
supplied.
NOTE
When “HDMI Control” (vpage 30) is set
to “ON”, power is supplied constantly to
the AC outlet (UNSWITCHED).

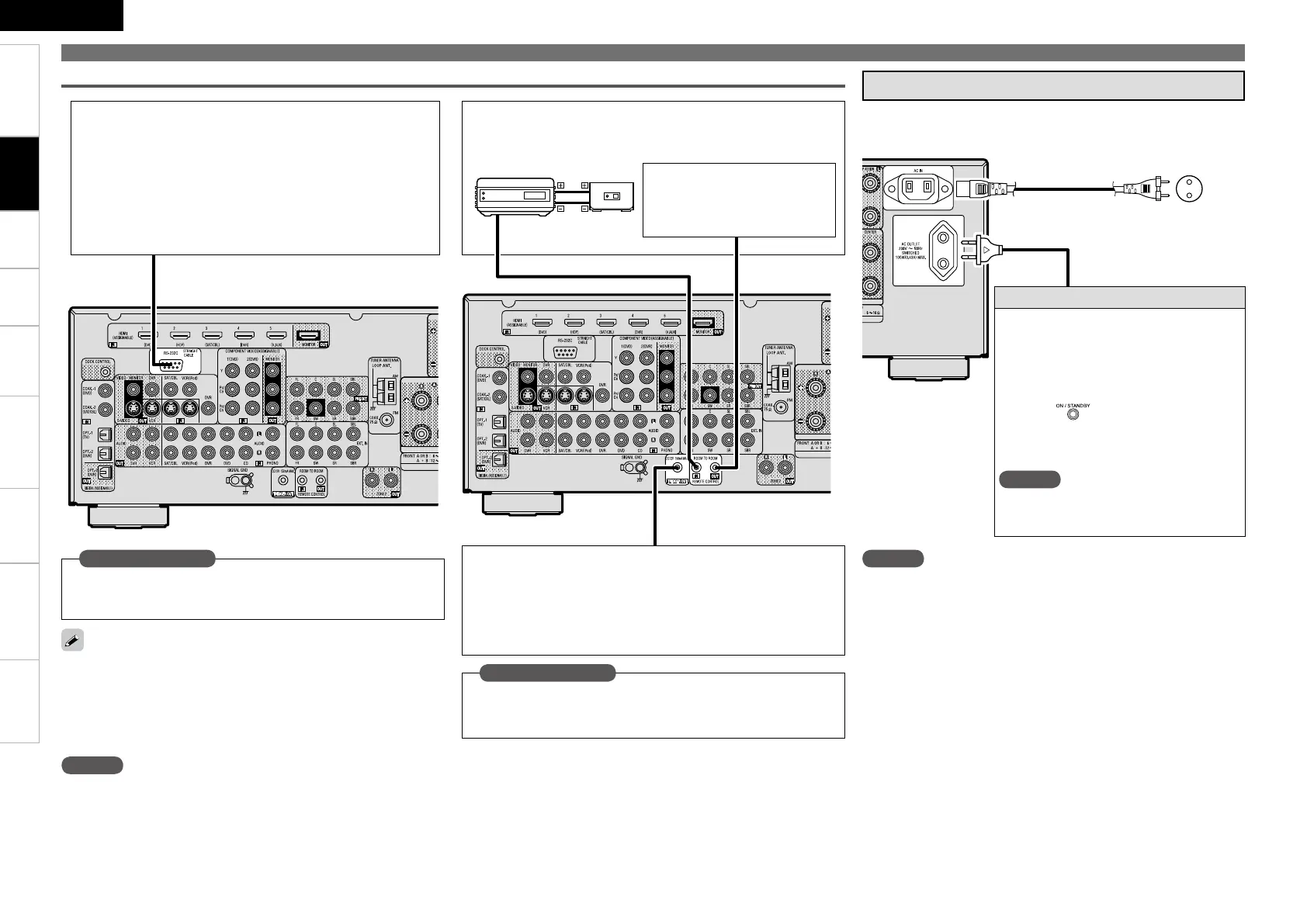

Connecting the Power Cord
REMOTE CONTROL jacksn
TRIGGER OUT jacks
The TRIGGER OUT output terminal outputs a maximum 12
V/150 mA electrical signal. When a device with TRIGGER IN
terminal is connected via a monaural mini-plug, the connected
device’s power on/standby can be controlled through linked
operation to the AVR-2310.
n
Extension jack for future use.
(Connect devices corresponding
with room to room function to
this jack.)
Infrared
retransmitter
Input
Output
Infrared
sensor
External Controller
RS-232C connector
When you connect an external control device, you can control
the AVR-2310 with the external control device. Perform the
operation below beforehand.
q Turn on the AVR-2310’s power.
w Turn off the AVR-2310’s power from the external
controller.
e Check that the AVR-2310 is in the standby mode.
n
When using the AVR-2310 in combination with the DENON RF remote
controller (RC-7000CI, sold separately) or RF remote receiver (RC-
7001RCI, sold separately), two-way communication is enabled. The
AVR-2310’s status information as well as iPod and Internet audio music
files can be browsed watching the RF Remote Controller’s display. For
details, refer to the operating instructions of the respective devices.
Set this to use the RS-232C connector for the DENON RF remote
controller.
“232C Port” (vpage 33)
Set as Necessary
NOTE
On the GUI menu, when setting “232C Port” to “2Way Remote”, you
cannot use the RS-232C connector as an external controller (vpage
33).
Set to change the conditions for linked operation via the TRIGGER
OUT terminal.
“Trigger Out” (vpage 33)
Set as Necessary
To Next Page
