Part Names and Functions
ioQ5 Q0Q1
Q6
Q2Q4
Q3
Q7 u
wq e r t y

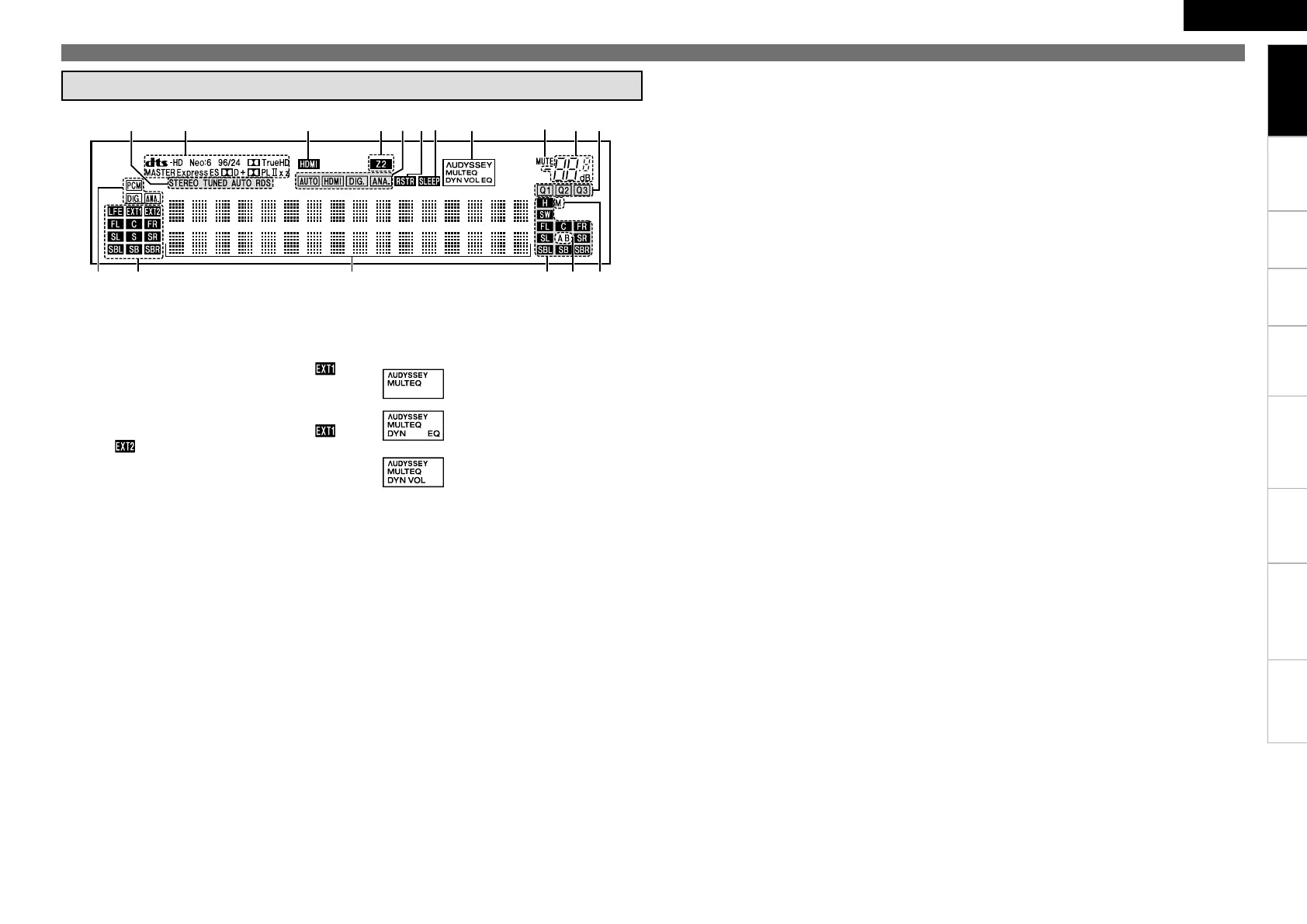

q Input audio signal indicators
w Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the“ ”
indicator lights when an extension channel (a
channel other than the front, center, surround,
surround back or LFE channel) is input. If there
are two or more extension channels, the “ ”
and “ ” indicators light.
e Information display
The input source name, surround mode, setting
values and other information are displayed
here.
r Output signal channel indicators
t Front speaker indicator
These light according to the settings of the
front A and B speakers (vpage 43).
y Monitor output indicators
These light according to the HDMI monitor
output setting.
u QUICK SELECT indicators
These light when the Quick Select function is
set (vpage 53).
i Master volume indicator
o MUTE indicator
Lights when the muting mode is set (vpage
43).
Q0 AUDYSSEY indicator
These light as shown below in the different
modes (vpage 48).
: During “MultEQ” operation
: During “MultEQ” , “Dynamic EQ”
operation
: During “MultEQ”, “Dynamic EQ”,
“Dynamic Volume” operation
 b When speaker settings are changed after
“Audyssey™ Auto Setup” procedure, either
the indicators’ frame turns off or all the
indicators turn off.
Q1 SLEEP TIMER indicator
Lights when the sleep timer is operating
(vpage 52).
Q2 RESTORER indicator
Lights during “RESTORER” operation (vpage
50).
Q3 Input mode indicators
Q4 ZONE2 indicator
Lights when signals are being output to the
ZONE2 (vpage 54).
Q5 HDMI indicator
Lights when HDMI input signals are detected
(vpage 13).
Q6 Decoder indicators
The indicator for the currently operating decoder
lights.
Display
Q7 Tuner reception mode indicators
This lights according to the reception conditions
when the input source is set to “TUNER”.
• STEREO
In the FM mode, this lights when receiving
analog stereo broadcasts.
• TUNED
This lights when the broadcast is properly
tuned in.
• AUTO
This lights when in the auto tuning mode.
• RDS
This lights when receiving RDS broadcasts.
Getting Started

Denon AVR-2310 Specifications

General

Equalizer	Yes
Product color	Black
Impedance	8 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
Dimensions (WxDxH)	431 x 377 x 171 mm
HDMI ports quantity	5
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1

Weight and Dimensions

Weight	11200 g
