Multi-ZoneSettings
1
Turn off the power using on the main unit.
2
Press while simultaneously pressing and on the main unit.
3
Once the display starts ashing at intervals of about 1 second, release the two
buttons.
If in step 3 the display does not flash at intervals of about 1 second, start over from step 1.

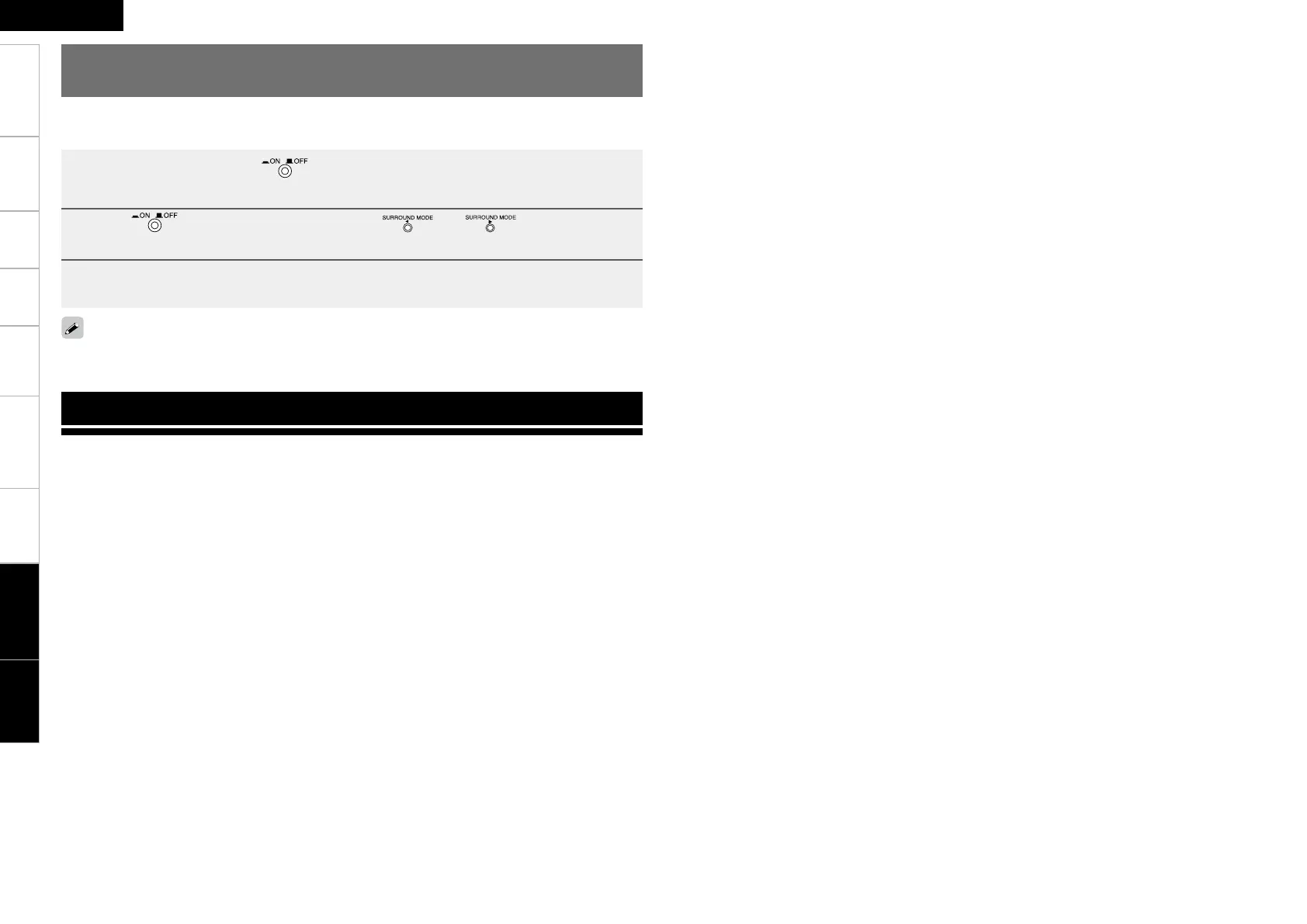

Restoring All the Settings to as They were at the
Time of Purchase (Resetting the Microprocessor)
Perform this procedure if the display is abnormal or if operations cannot be performed.
When the microprocessor is reset, all the settings are reset to their default values.
n
Video section
• Standard video connectors
Input / output level and impedance:
1 Vp-p, 75 Ω/ohms
Frequency response:
5 Hz ~ 10 MHz — +1, –3 dB
• S-Video connectors
Input / output level and impedance:
Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
C (color) signal — 0.3 (PAL) / 0.286 (NTSC) Vp-p, 75 Ω/ohms
Frequency response:
5 Hz ~ 10 MHz — +1, –3 dB (when video convert set to “OFF”)
• Color component video connector
Input / output level and impedance:
Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
P
B / CB signal — 0.7 Vp-p, 75 Ω/ohms
P
R / CR signal — 0.7 Vp-p, 75 Ω/ohms
Frequency response:
5 Hz ~ 60 MHz — +0, –3 dB (when video convert set to “OFF”)
n
Tuner section [FM] [AM]
(note: µV at 75 Ω/ohms, 0 dBf = 1 x 10
-15
W)
Receiving Range: 87.5 MHz ~ 108.0 MHz 522 kHz ~ 1611 kHz
Usable Sensitivity: 1.0 µV (11.2 dBf) 18 µV
50 dB Quieting Sensitivity:
1.6 µV (15.3 dBf)
23 µV (38.5 dBf)
S/N (IHF-A):
77 dB
72 dB
Total harmonic Distortion (at 1 kHz): MONO 0.15 %
STEREO 0.3 %
n
General
Power supply: AC 230 V, 50 Hz
Power consumption:
600 W
0.3 W (Standby)
Maximum external dimensions:
434 (W) x 171 (H) x 377 (D) mm
Weight: 11.2 kg
n
Remote control unit (RC-1117)
Batteries: R6/AA Type (two batteries)
Maximum external dimensions:
52 (W) x 243 (H) x 21 (D) mm
Weight: 184 g (including batteries)
z For purposes of improvement, specifications and design are subject to change without notice.
n
Audio section
• Power amplifier
Rated output:
 Front (A, B):
105 W+
105 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
135 W+135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Center:
105 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
105 W+105 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
135 W+135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround Back:
105 W+105 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
135 W+135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
  Output connectors: Front: A or B 6 ～16 Ω/ohms
A + B 12 ～
16 Ω/ohms
Center, Surround, Surround Back / Amp Assign:
6 ～16 Ω/ohms
• Analog
Input sensitivity / Input impedance:
200 mV / 47 kΩ/kohms
Frequency response:
10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)
S/N:
100 dB (IHF-A weighted, DIRECT mode)
Specifications
SpecificationsTroubleshooting

Denon AVR-2310 Specifications

General

Equalizer	Yes
Product color	Black
Impedance	8 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
Dimensions (WxDxH)	431 x 377 x 171 mm
HDMI ports quantity	5
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1

Weight and Dimensions

Weight	11200 g
