Denon AVR-2313 User Manual

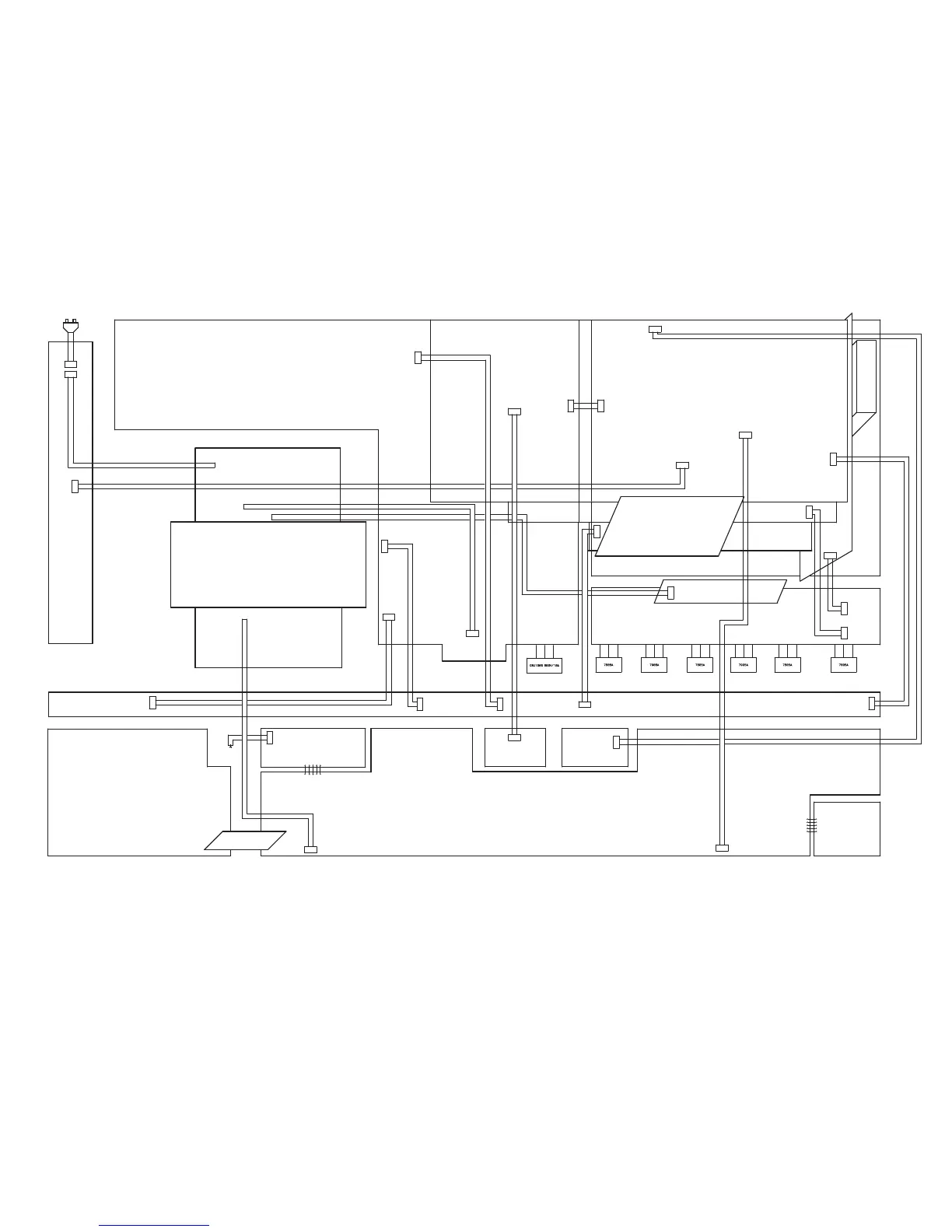

WIRING DIAGRAM
4P WIRE
10P WIRE
5P WIRE
(S5,S6)
5P WIRE(SPK OUT F/C/S)
23P FFC CARD CABLE
13P WIRE
(S2,S4)
TUNER PACK
5P SHIELD WIRE
10P WIRE(+/-B, GND)
JUMPER
7CH AMP B'D
DIG +5V
SELECT B'D
HP B'D
SPK B'D
FRONT B'D
USB B'D
JUMPER
AUDIO IN B'D
VIDEO B'D
DIGITAL POWER B'D
AC CORD
CHASSIS
2P WIRE(SPK OUT SB)
(S1)
HDMI B'D
F_CNT B'D
HDMI B'D
S_CNT B'D
13P WIRE(RELAY CONT)
REG B'D
REG_CNT B'D
40P FFC CARD CABLE
MAIN TRANS
VOL ENCODER
PREOUT B'D
159

Denon AVR-2313 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	6
Composite video in	4
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Wi-Fi	No
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Optical drive included	-
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Digital
Apple docking compatibility	iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC
Audio formats supported	FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	10900 g
