GFlow of video signals for ZONE2H
• This function automatically converts various formats of video signals input to the AVC-A1HD into the
format used to output the video signals from the AVC-A1HD to a monitor.
•
The AVC-A1HD’s video input/output circuitry is compatible with the following four types of video
signals:
Digital video signals: HDMI
Analog video signals: Component video, S-Video and Video
Video Conversion Function

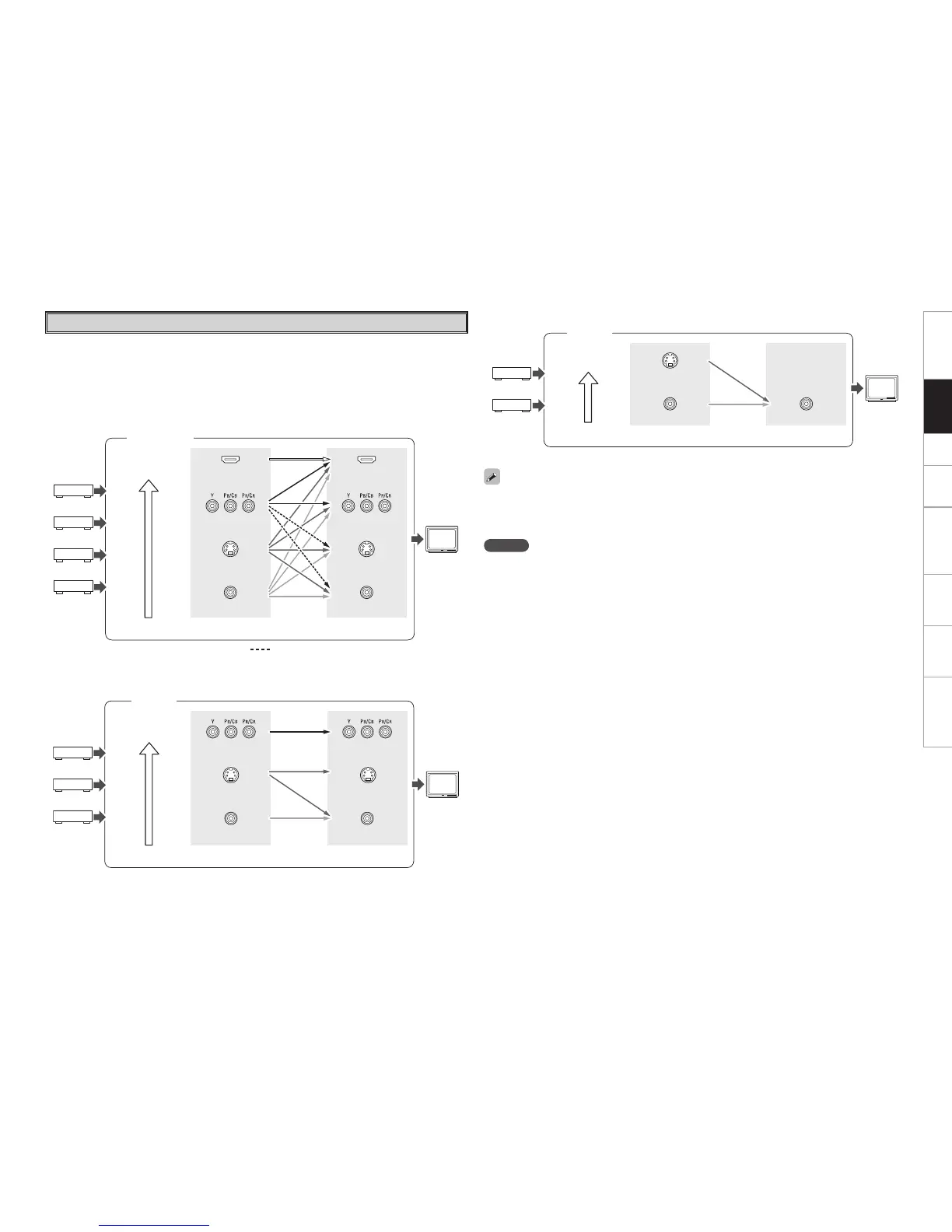

GFlow of video signals inside the AVC-A1HDH
MAIN ZONE
High picture
quality playback
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
Video inputs Video outputs
: When 480i/576i signals are input
Component video
connectors
S-Video connector
Video connector
Component video
connectors
Video connector
Video inputs Video outputs
ZONE2
NOTE
• For optimum video performance, THX recommends that you set the conversion mode to “OFF” to use
video signals pass through system without up conversion.
Example: View video input from a component video on the component video monitor.
• HDMI signals cannot be converted into analog signals.
• 1080p component input video signals cannot be output to anything other than component video
connectors.
• 480p/576p, 1080i and 720p component video input signals cannot be converted into S-Video or Video
format.
• When using the component video output connectors for connection to the ZONE2 monitor, the ZONE2’s
on-screen display is not displayed.
• When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
• When not using this function, connect a monitor output with the same type of connector as the video
input connector.
• The resolution of the HDMI input-compatible monitor connected to the AVC-A1HD can be checked at GUI
menu “Information” – “HDMI Information” – “Monitor1” or “Monitor2” (vpage 53).
High picture
quality playback
ZONE2
monitor
GFlow of video signals for ZONE3H
S-Video connector
Video connector Video connector
Video inputs Video outputs
ZONE3
High picture
quality playback
ZONE3
monitor
S-Video connector
