Getting Started Connections Setup Playback Remote Control Information Troubleshooting
Connectors for audio output Audio signals Connectors for video output
ZONE2
ZONE2 PRE OUT Stereo
ZONE2 VIDEO OUT,
ZONE2 S-VIDEO OUT,
ZONE2 COMPONENT VIDEO OUT
ZONE2 OPTICAL OUT Bit-stream
ZONE3 ZONE3 PRE OUT Stereo ZONE3 VIDEO OUT
ZONE4 ZONE4 OPTICAL4 OUT Bit-stream –

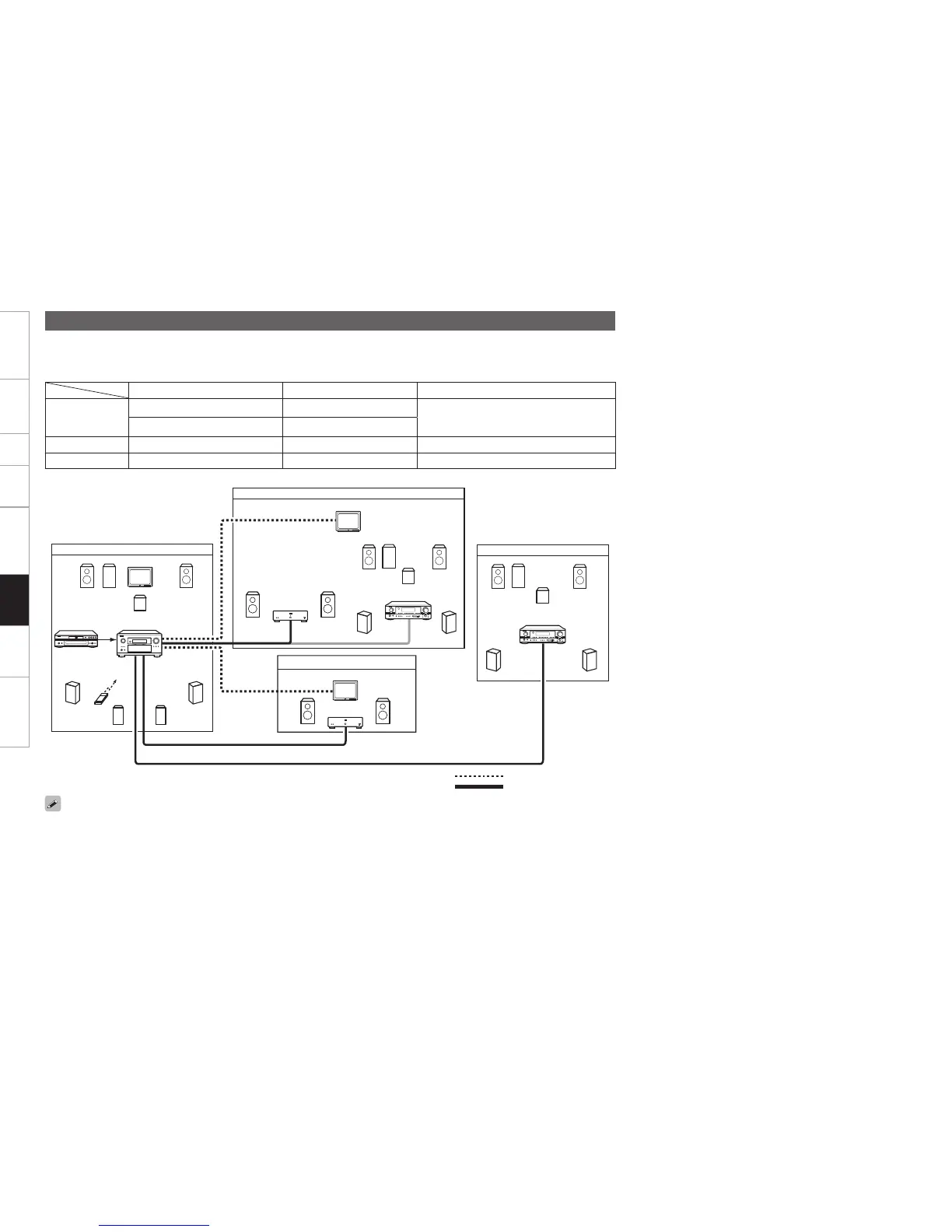

Multi-Zone Connections
• For ZONE2, it is necessary to set in sequence with the signal connected to either the power amplifier or bit stream amps.
The amp should be the power amplifier in the case of ZONE3, and the bit-stream for ZONE4.
• If the signal inputted to ZONE2 is analog, change to PCM(2-channel) signal, and output it from ZONE2 optical output connectors.
$
'- 48 48
48
'3
4-
43
4#
3
4#
-
$
'- '3
4-
43
$
'- '3
4-
43
ZONE3 audio output
MAIN ZONE (7.1-channel system)
Monitor
ZONE2
ZONE3
DVD player
Input
Remote
control unit
ZONE2 audio
output
ZONE2 video
output
AVC-A1HD
Monitor
Power amplifier
: Video cable
: Audio cable
• When only using one speaker for ZONE2 or ZONE3, set to “Mono”. In this case, the ZONE2 (ZONE3) monaural output is output from the
ZONE2 (ZONE3) pre-out L and R connectors, so connect as desired.
• Separate power amplifiers are needed for ZONE2 and ZONE3.
AV amplifier
ZONE4
ZONE4
digital output
Monitor
ZONE3 video
output
AV amplifier
Power amplifier
or
ZONE2 digital output
Multi-Zone
