Compatible audio
format
Details
Discs
(examples)
2-channel linear PCM
2ch 32-192 kHz
16/20/24 bits
CD, DVD-Video,
DVD-Audio
Multi-channel linear
PCM
8ch 32-192 kHz
16/20/24 bits
DVD-Audio
Dolby Digital, DTS Bitstream DVD-Video
DSD
2/5.1ch
2.8224 MHz
1 bit
SACD
Dolby Digital Plus,
Dolby TrueHD,
DTS-HD
Bitstream
HD DVD,
Blu-ray Disc
MonitorDVD player
b T
he AVC-A1HD is supported to the feature of HDMI listed below.
• 30 and 36 bit Deep Color
• xvYCC
• Auto Lipsync Correction
Copyright protection system (HDCP)
In order to play the digital video and audio signals of a DVD- Video or
DVD-Audio disc using HDMI/DVI connections, both the connected
DVD player and monitor must be equipped for a copyright protection
system called “HDCP” (High-bandwidth Digital Content Protection).
HDCP is a copy protection technology consisting of data encoding
and mutual identification of the devices.
The AVC-A1HD is HDCP-compatible. For details on the DVD player or
monitor you are using, refer to its operating instructions.
• When the AVC-A1HD and DVD player are connected using an HDMI
cable, also connect the AVC-A1HD and monitor using an HDMI
cable.
• If the connected monitor or DVD player only has a DVI-D connector,
use an HDMI/DVI converter cable. When using a DVI cable, no audio
signals are transmitted.
• Use a Deep Color compatible cable for connection to Deep Color
compatible devices.
When connecting with an HDMI/DVI converter cable
(adapter)
• HDMI video signals are theoretically compatible with the DVI
format.
When connecting to a monitor, etc., equipped with a DVI-D
connector, connection is possible using an HDMI/DVI converter
cable, but depending on the combination of components in some
cases the video signals will not be output.
• When connecting using an HDMI/DVI converter adapter, the video
signals may not be output properly due to poor connections with
the connected cable, etc.
• By default, the HDMI audio signals are output from the speakers
connected to the AVC-A1HD.
• To output the sound from the TV, make the settings at GUI menu
“Manual Setup” – “HDMI Setup” – “Audio” – “TV” (vpage 31).
NOTE
• Use a CPPM-compatible DVD player to play DVD-Audio discs that are
copyright-protected by CPPM.
• The audio signals output from the HDMI connector (sampling
frequency, bit rate, etc.) may be restricted by the connected device.
• Video signals are not output properly when using devices that are
not HDCP-compatible.
• Video signals are not output if the input video signals do not match
the monitor’s resolution. In this case, switch the DVD player’s
resolution to a resolution with which the monitor is compatible.
• If the GUI menu “Manual Setup” – “HDMI Setup” – “Audio” setting
(vpage 31) is set to “Amp”, the sound may be interrupted when the
monitor’s power is turned off.
• Use a cable on which the HDMI logo is indicated (a certified HDMI
product) for connection to the HDMI connector. Normal playback
may not be possible when using a cable other than one on which the
HDMI logo is indicated (a non-HDMI-certified product).
• If the monitor or DVD player does not support Deep Color, Deep
Color signal transfer is not possible.
• If the monitor or DVD player does not support xvYCC, xvYCC signal
transfer is not possible.
• If the monitor does not support “Auto Lipsync Correction” function,
this function will not work.
• The AVC-A1HD is compatible with the HDMI’s CEC (Consumer
Electronics Control) function. Please note the following.
•
It may not work depending on the device it is connected to and its
setup.
•
It does not operate with televisions or players that are not
compatible with HDMI’s CEC.

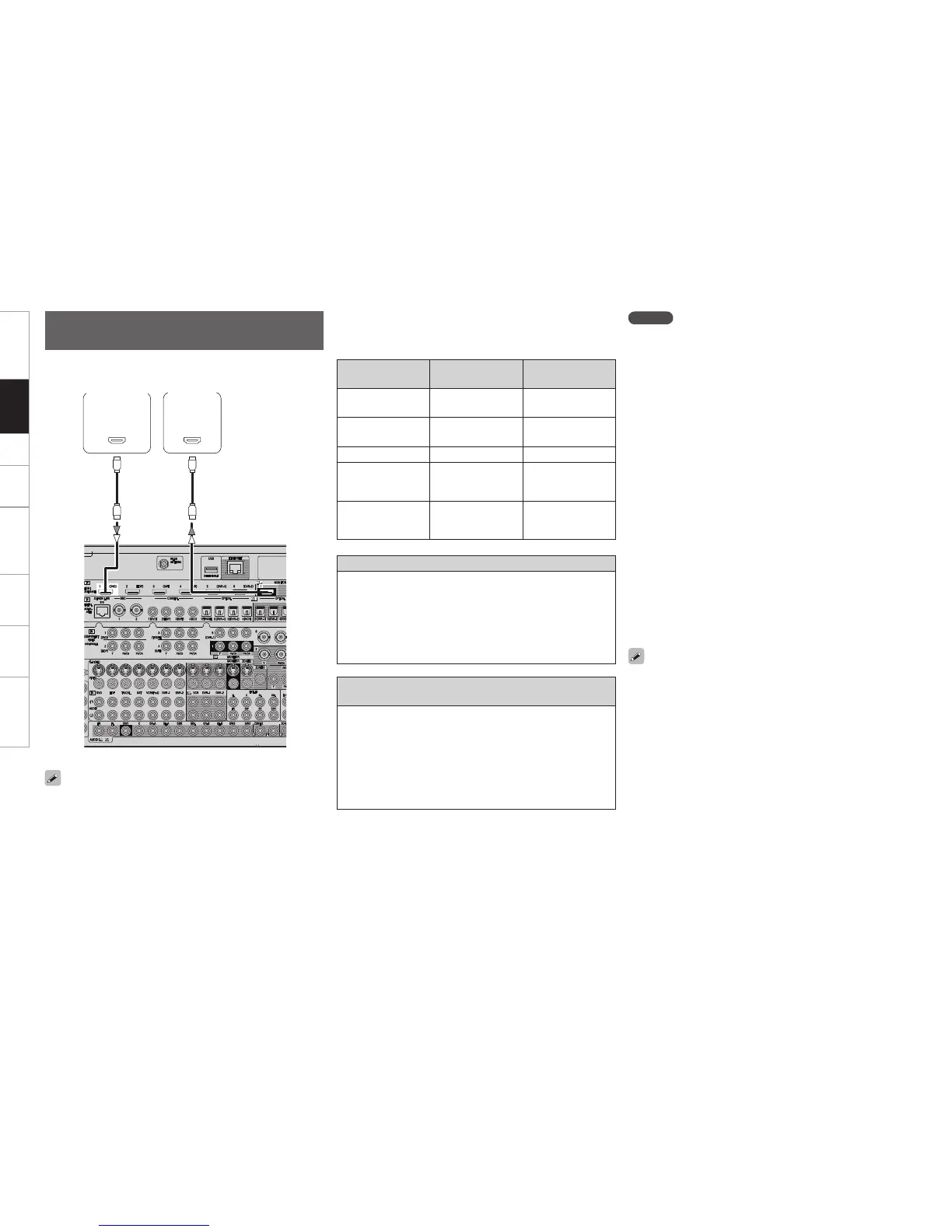

Connecting Equipment with HDMI
connectors
Connections
