Denon AVR-X1200W Service Manual

CAUTION IN SERVICING (AVR-S710W)

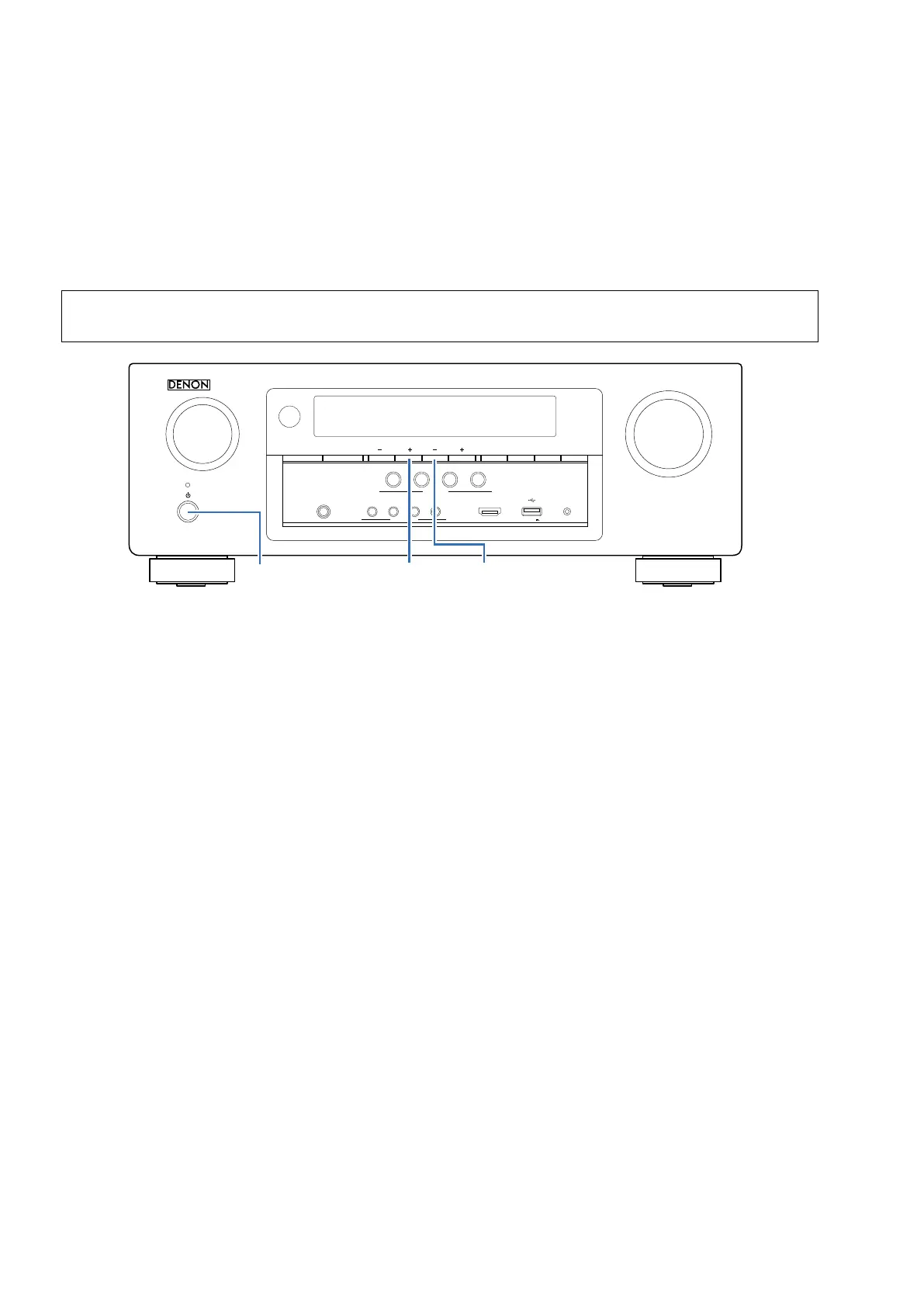

Initializing This Unit
Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB.
1. Press the power button to turn off the power.
2. While holding down buttons "
TUNER PRESET CH +
" and "
TUNE -
" simultaneously, press the power button to turn
on the power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
NOTE：
• If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down your settings in advance and
recongure the settings after initialization.
AVR-S710W
JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 1Sets
(See page 51)
MASTER VOLUME
SOURCE SELECT
BAND MODE DIMMER STATUSTUNEZONE 2 ON/OFF ZONE 2 SOURCE
TUNER
PRESET CH
CBL/SAT
3
4
ONLINE
1
GAME
2
DVD/Blu-ray
QUICK SELECT
SETUP MICAUX - HDMI
5V/1A
PHONES
MOVIE MUSIC GAME PURE
SOUND MODE
X TUNE -TUNER
PRESET CH +
14

Denon AVR-X1200W Specifications

General

HDMI in	6
AC (power) in	Yes
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	0
Receiver type	-
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	145 W
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Product color	Black
Audio decoders	DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	430 W
Connectivity technology	Wired
Optical drive included	No
Audio formats supported	AIFF, ALAC, FLAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
